Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 19, 2017, 09:49 AM

  • H 0637_H 0616_26102017_162327.mp4

Date
10/19/2017
W/O
663104
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00192
PipeID
P20469
Time
2:49 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5032
Sewer Name
H JOINT OUTFALL H - UNIT 8J
City
BALDWIN PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Routine Assessment
Project
WO_663104_TV15199_OCT2017
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
H 0637
Downstream MH
H 0616
Dir. of Survey
Downstream
Length Surveyed
488.8 ft.
Total Length
488.8 ft.
Structural Index
2
Structural Quick
3R2S
Structural Rating
489
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
489
Pipe schematic from manhole H 0637 to H 0616
MH: H 0637MH: H 0616downstream0 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 06370 ft. MGO - General Observation - CONNECTION AT MH 7 O'CLOCK2.1 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start2.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6.9 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 6"7.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"15.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"18.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"67.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"92.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"139.3 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES141.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"153.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"173.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"185.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"210.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"218.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"267.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"271.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"316 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"320.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"338.2 ft. CS - Crack Spiral, from 03 to 05 o'clock, within 8 inches of joint: YES380.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"385.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"409.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"437.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"488.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish488.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK488.8 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish488.8 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK488.8 ft. AMH - Downstream Manhole, Survey Ends - H 0616

Observation photos (4)

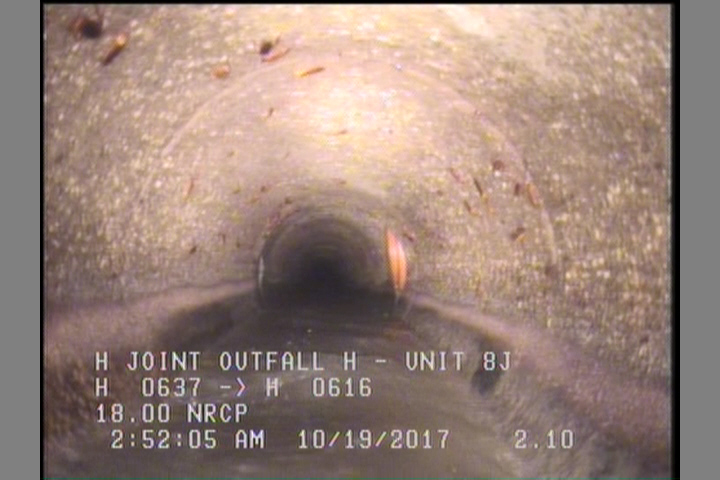

  • Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

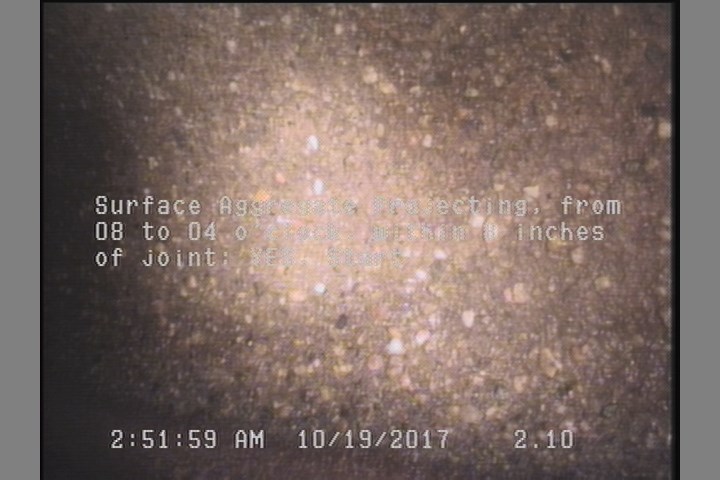

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

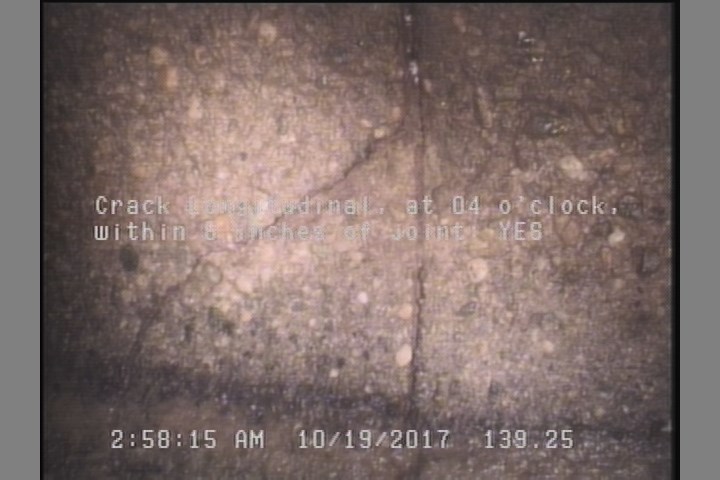

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    139.3 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

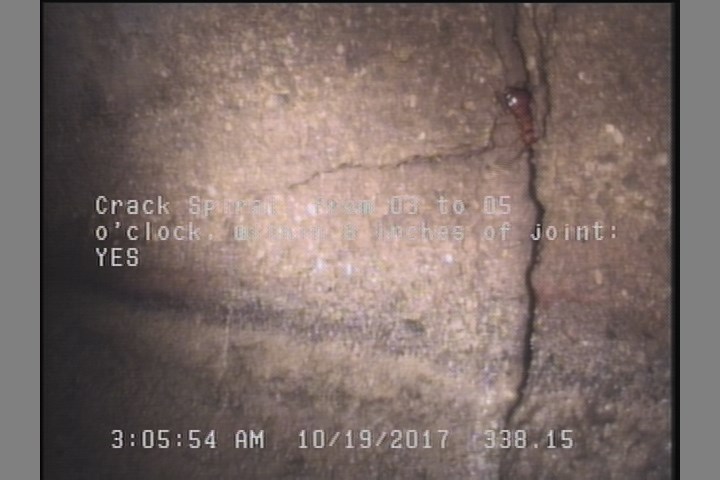

  • Crack Spiral, from 03 to 05 o'clock, within 8 inches of joint: YES

    338.2 ft. - Crack Spiral, from 03 to 05 o'clock, within 8 inches of joint: YES

All inspections of P20469Work order 663104

Observations (34)

DistanceCodeObservation
267.4TFC—
488.8MGOCONNECTION AT MH 3 O'CLOCK
380.7TFC—
15.3TF—
6.9TB—
385.2TF—
141.3TF—
0MGOCONNECTION AT MH 6 O'CLOCK
0MWM—
0MWL—
271.2TF—
2.1SSS—
409.2TFC—
2.1SAP—
316TF—
488.8SSS—
338.2CS—
139.3CL—
185.9TF—
320.1TF—
18.9TFC—
7.3TFA—
67.8TFC—
173.5TF—
488.7SAP—
210.3TFC—
218.8TF—
0AMHH 0637
0MGOCONNECTION AT MH 7 O'CLOCK
153.6TFA—
488.8MGOCONNECTION AT MH 9 O'CLOCK
437.7TFC—
92.4TF—
488.8AMHH 0616

Properties (5)

additional_info
SC346192
custom_field_two
2
customer
LACSD
datetime
2017-10-19T02:49:03-07:00
sewer_category
Gravity
