Wastewater/Activity/PacpInspection/1.0Oct 4, 2017, 10:16 AM
16 0097_16 0096 _04102017_031919.mp4
- Date
- 10/04/2017
- W/O
- 663062
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00641
- PipeID
- P13135
- Time
- 3:16 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4993
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTION 5
- City
- SAN MARINO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_663062_TV16074_OCT2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 16 0097
- Downstream MH
- 16 0096
- Dir. of Survey
- Downstream
- Length Surveyed
- 375.5 ft.
- Total Length
- 375.5 ft.
- Structural Index
- 3
- Structural Quick
- 3N21
- Structural Rating
- 224
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 226
Observation photos (3)

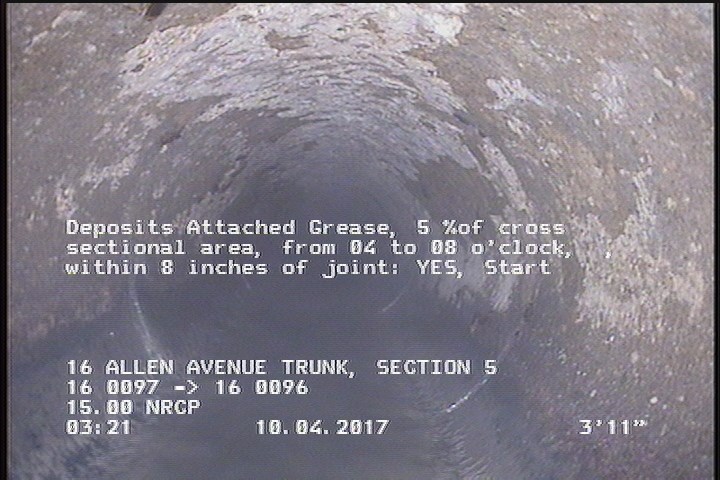

3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

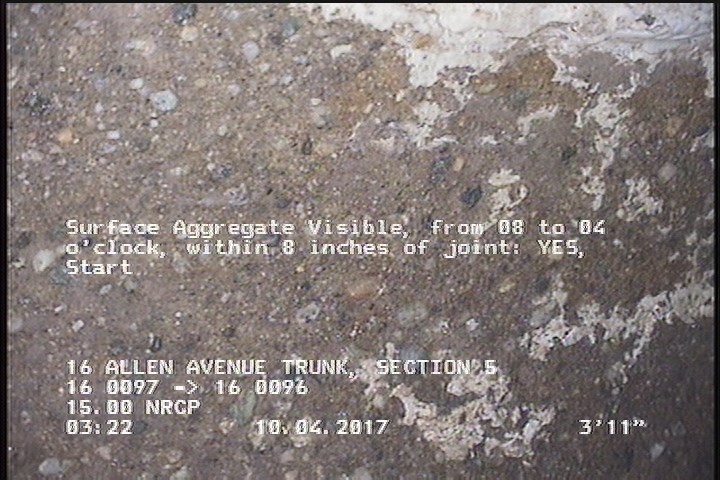

3.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

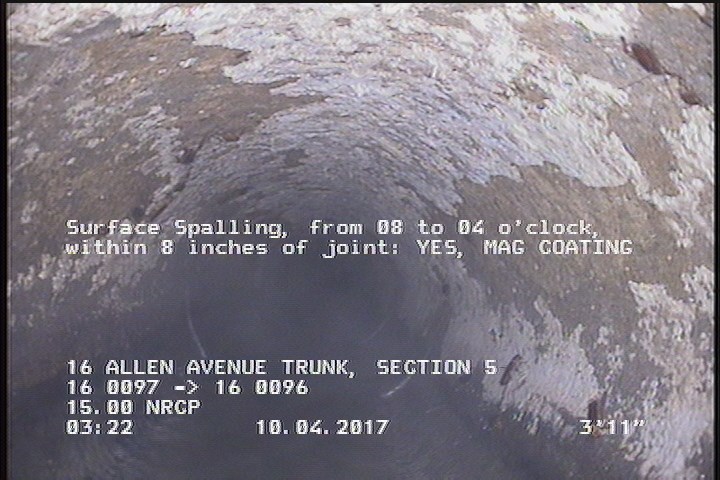

3.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - MAG COATING
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 375.5 | AMH | 16 0096 |
| 0 | MWM | — |
| 375.5 | DAGS | — |
| 3.9 | DAGS | — |
| 3.9 | SAV | — |
| 0 | AMH | 16 0097 |
| 3.9 | SSS | MAG COATING |
| 0 | MWL | — |
| 375.5 | SAV | — |
| 375 | MGO | Magnesium Hyroxide Coat throughout, 40 %, 8 to 4 oclock |
Properties (5)
- additional_info
- SC345985
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-04T03:16:49-07:00
- sewer_category
- Gravity
