Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 28, 2017, 05:26 AM

  • 08 0169_08 0168_27092017_222812.mp4

Date
09/27/2017
W/O
657835
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00009
PipeID
P00226
Time
10:26 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4889
Sewer Name
08 GRACE STREET TRUNK, SECTION 1
City
CARSON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
WO_657835_TV08021_SEP2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0169
Downstream MH
08 0168
Dir. of Survey
Downstream
Length Surveyed
288 ft.
Total Length
288 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4226
O&M Rating
20
Overall Index
3
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 08 0169 to 08 0168
MH: 08 0169MH: 08 0168downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 016910.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"88.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"250.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES252.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES260.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start281 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish281 ft. DAGS - Deposits Attached Grease, 25 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO, Start285.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"287 ft. MGO - General Observation - WRINKLES THROUGHOUT THE REACH288 ft. DAGS - Deposits Attached Grease, 25 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO, Finish288 ft. MSA - Survey Abandoned - CAM BLKD BY GREASE

Observation photos (5)

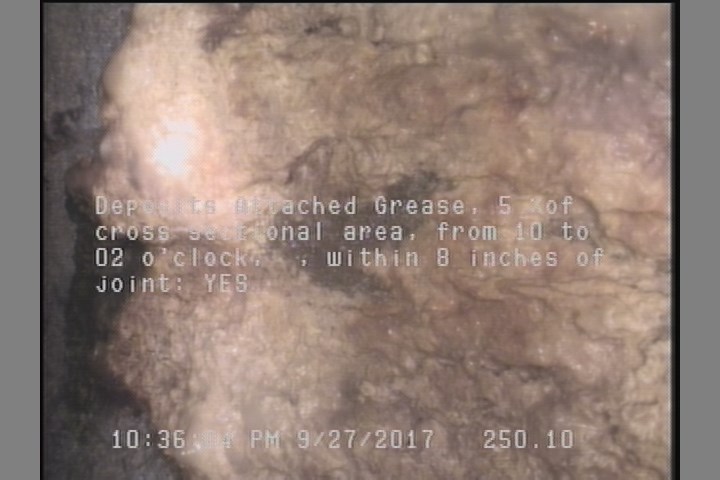

  • Deposits Attached Grease, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

    250.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

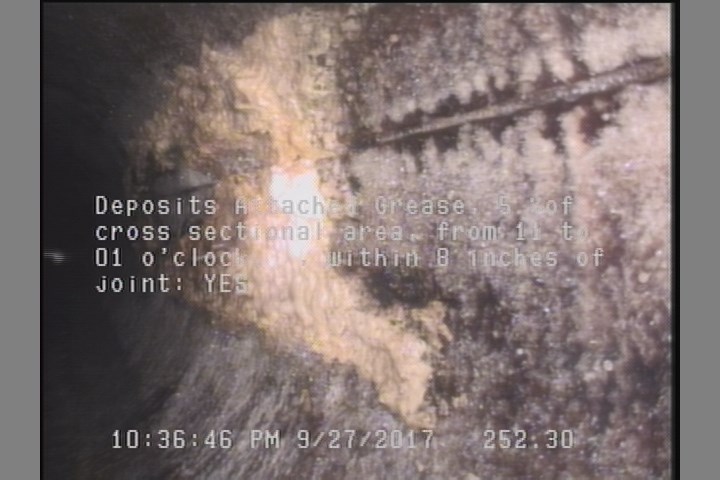

  • Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES

    252.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: YES

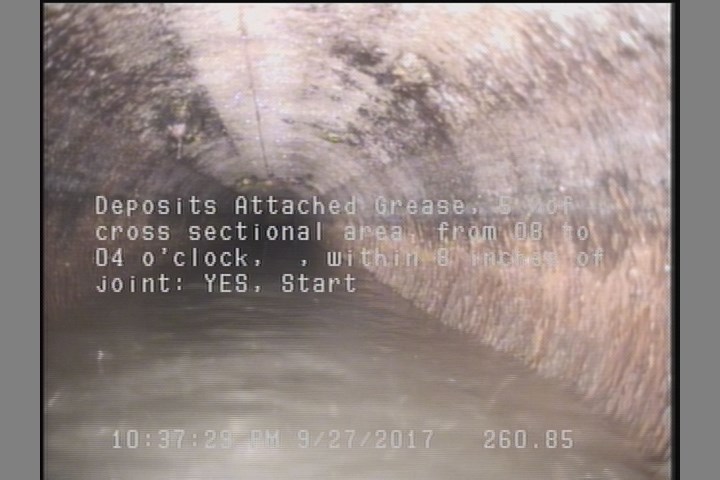

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    260.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

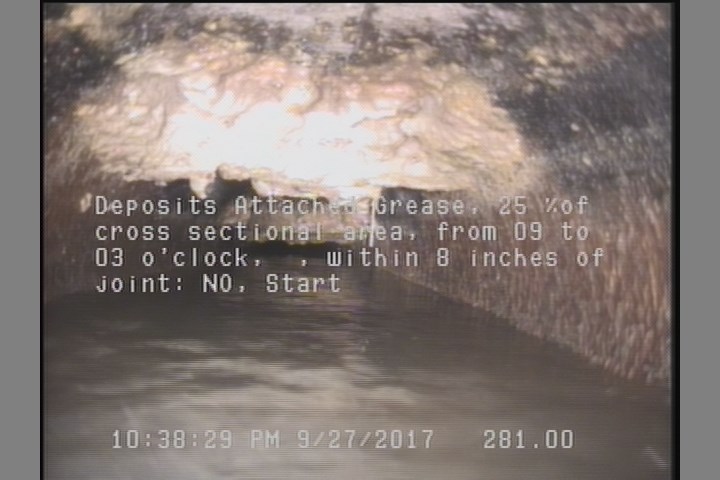

  • Deposits Attached Grease, 25 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO, Start

    281 ft. - Deposits Attached Grease, 25 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO, Start

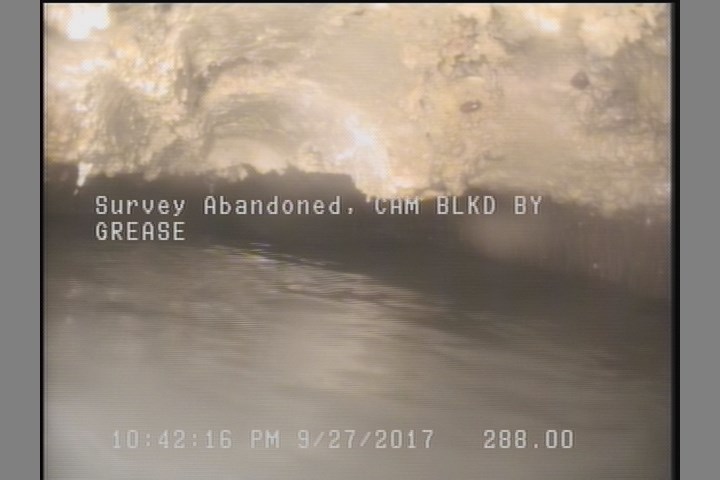

  • Survey Abandoned - CAM BLKD BY GREASE

    288 ft. - Survey Abandoned - CAM BLKD BY GREASE

All inspections of P00226Work order 657835

Observations (14)

DistanceCodeObservation
252.3DAGS—
250.1DAGS—
0MWL—
0MWM—
281DAGS—
285.3TF—
0AMH08 0169
288DAGS—
10.5TFA—
288MSACAM BLKD BY GREASE
281DAGS—
88.9TF—
287MGOWRINKLES THROUGHOUT THE REACH
260.9DAGS—

Properties (6)

additional_info
SC345949
custom_field_two
5
customer
LACSD
datetime
2017-09-27T22:26:57-07:00
sewer_category
Gravity
year_laid
37424
