Wastewater/Activity/PacpInspection/1.0Sep 27, 2017, 08:13 AM
08 0164_08 0163_27092017_011335.mp4
- Date
- 09/27/2017
- W/O
- 657835
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00009
- PipeID
- P00221
- Time
- 1:13 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4888
- Sewer Name
- 08 GRACE STREET TRUNK, SECTION 1
- City
- CARSON
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_657835_TV08021_SEP2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0163
- Downstream MH
- 08 0164
- Dir. of Survey
- Upstream
- Length Surveyed
- 199.9 ft.
- Total Length
- 199.9 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

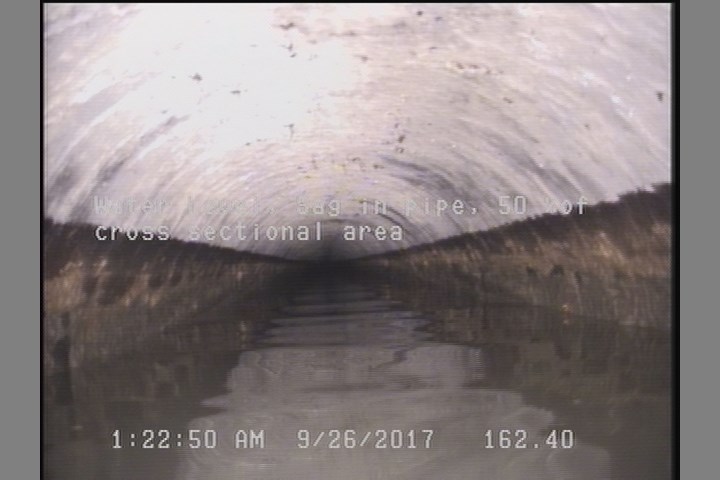

162.3 ft. - Water Level, Sag in pipe, 50 %of cross sectional area

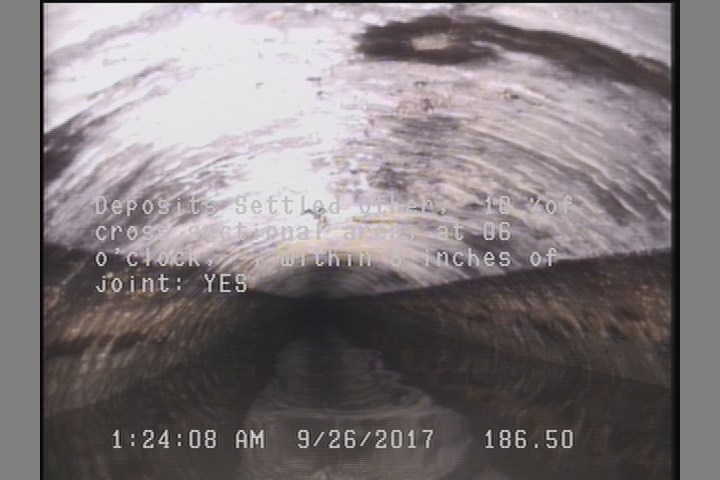

183.3 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 162.3 | MWLS | — |
| 0 | AMH | 08 0163 |
| 183.3 | DSZ | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK, ACTIVE |
| 199.9 | MSA | CAM BLKD BY DEBRIS |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC345948
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-09-27T01:13:06-07:00
- sewer_category
- Gravity
- year_laid
- 37424
