Wastewater/Activity/PacpInspection/1.0Sep 28, 2017, 06:39 AM
08 0161_08 0160_27092017_233957.mp4
- Date
- 09/27/2017
- W/O
- 657835
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00009
- PipeID
- P00218
- Time
- 11:39 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4889
- Sewer Name
- 08 GRACE STREET TRUNK, SECTION 1
- City
- CARSON
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_657835_TV08021_SEP2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0160
- Downstream MH
- 08 0161
- Dir. of Survey
- Upstream
- Length Surveyed
- 58 ft.
- Total Length
- 58.1 ft.
- Structural Index
- 4
- Structural Quick
- 4131
- Structural Rating
- 7
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

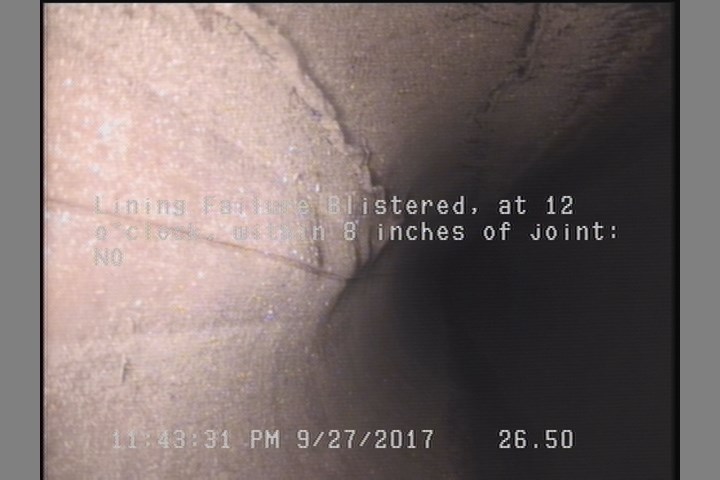

26.5 ft. - Lining Failure Blistered, at 12 o'clock, within 8 inches of joint: NO

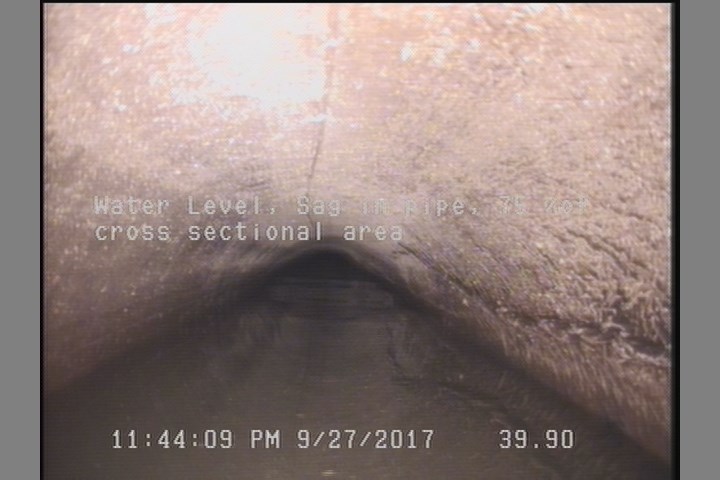

39.9 ft. - Water Level, Sag in pipe, 75 %of cross sectional area
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 22.1 | TFA | — |
| 26.5 | LFB | — |
| 39.9 | MWLS | — |
| 57 | MGO | WRINKLES THROUGHOUT THE REACH |
| 0 | MWM | — |
| 58.1 | MSA | CAM GOING UNDERWATER DUE TO LARGE SAG |
| 0 | AMH | 08 0160 |
Properties (6)
- additional_info
- SC345949
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-09-27T23:39:37-07:00
- sewer_category
- Gravity
- year_laid
- 37424
