Wastewater/Activity/PacpInspection/1.0Oct 19, 2017, 07:03 AM
32 0089_32 0088_10192017_000614.mp4
- Date
- 10/19/2017
- W/O
- 667686
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00889
- PipeID
- P19974
- Time
- 12:03 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4748
- Sewer Name
- 32 RYE CANYON TRUNK
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_667686_DISTRICT32_NOV2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 0089
- Downstream MH
- 32 0088
- Dir. of Survey
- Downstream
- Length Surveyed
- 302 ft.
- Total Length
- 302 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 120
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 127
Observation photos (4)

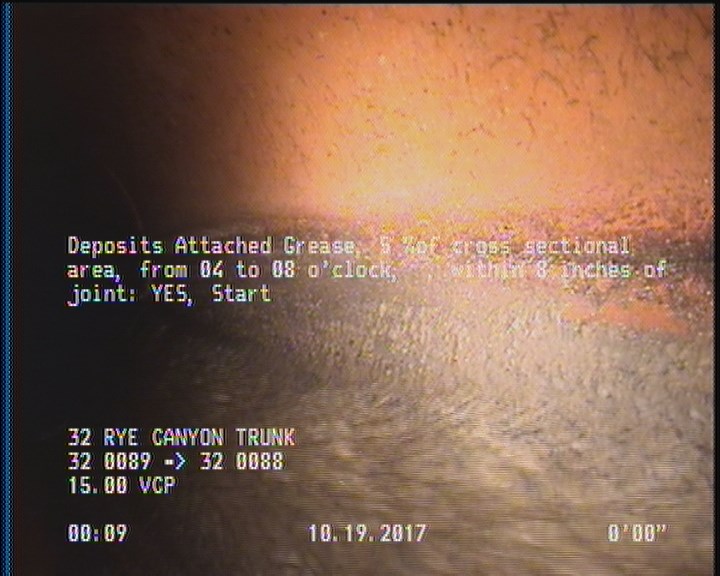

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

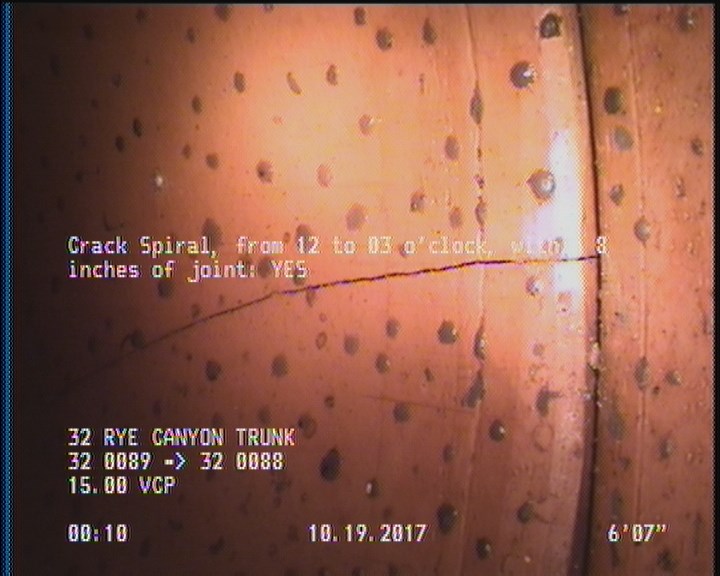

6.6 ft. - Crack Spiral, from 12 to 03 o'clock, within 8 inches of joint: YES

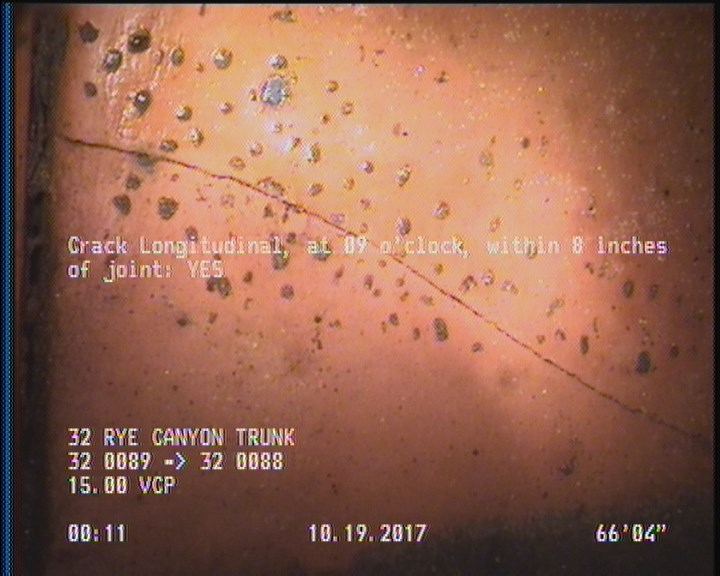

66.3 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

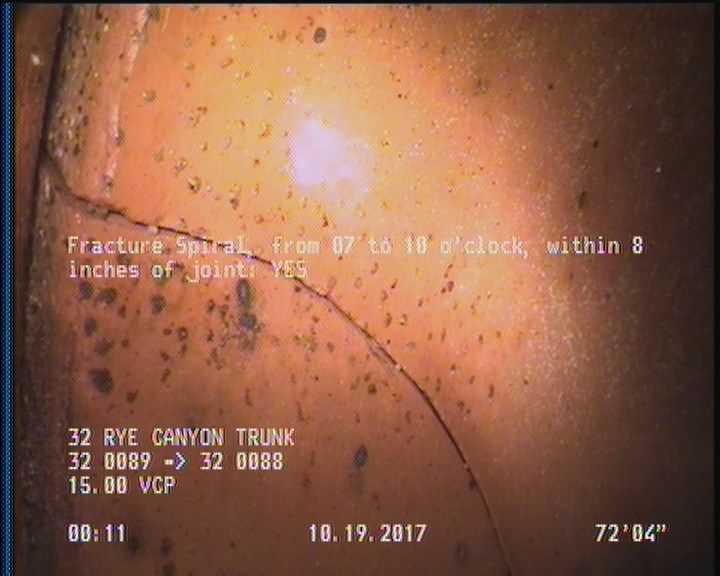

72.4 ft. - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 6.6 | CS | — |
| 2 | DAGS | — |
| 72.4 | FS | — |
| 302 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 300.1 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 32 0089 |
| 66.3 | CL | — |
| 302 | AMH | 32 0088 |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC346193
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-19T00:03:52-07:00
