Wastewater/Activity/PacpInspection/1.0Sep 26, 2017, 09:15 AM
22 1038_22 1037 _26092017_022903.mp4
- Date
- 09/26/2017
- W/O
- 663058
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00811
- PipeID
- P17407
- Time
- 2:15 AM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4811
- Sewer Name
- 22 IRWINDALE TRUNK, SECTION 1
- City
- BALDWIN PARK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_663058_TV22108_OCT2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 22 1038
- Downstream MH
- 22 1037
- Dir. of Survey
- Downstream
- Length Surveyed
- 352 ft.
- Total Length
- 352 ft.
- Structural Index
- 1
- Structural Quick
- 1K00
- Structural Rating
- 59
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 63
Observation photos (3)
33.5 ft. - Surface Roughness Increased, from 08 to 01 o'clock, within 8 inches of joint: NO

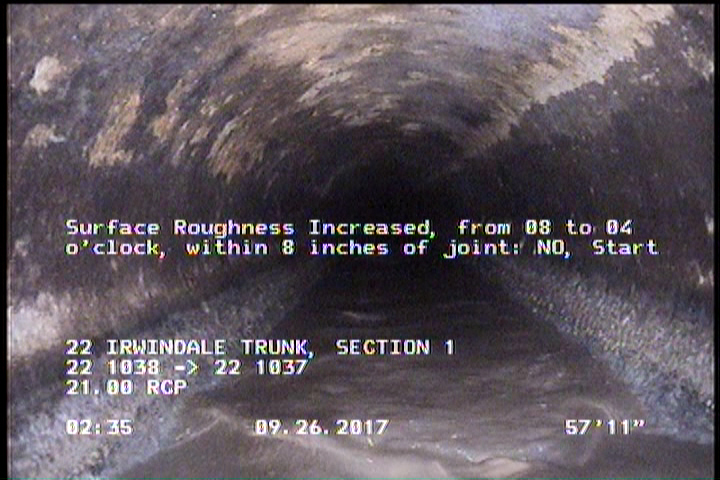

57.9 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

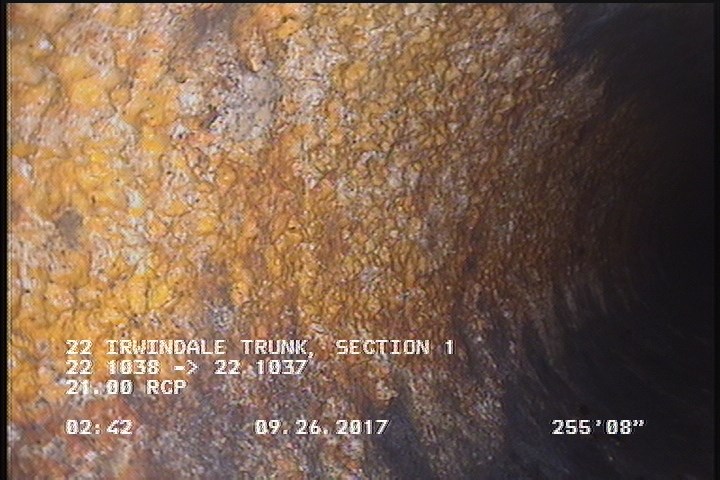

255.5 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 11 to 01 o'clock, , within 8 inches of joint: NO, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 170.7 | TFC | — |
| 33.5 | SRI | — |
| 302.5 | DAE | — |
| 255.5 | DAE | — |
| 57.9 | SRI | — |
| 0 | AMH | 22 1038 |
| 0 | MWM | — |
| 352 | AMH | 22 1037 |
| 349 | MGO | Exposed Aggregate throughout the reach |
| 14.8 | DSZ | . |
| 267 | TFC | — |
| 349.8 | SRI | — |
| 67.3 | TFC | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC353057
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-26T02:15:12-07:00
