Wastewater/Activity/PacpInspection/1.0Sep 26, 2017, 05:38 AM
22 1043_22 1042 _25092017_223931.mp4
- Date
- 09/25/2017
- W/O
- 663058
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00811
- PipeID
- P17412
- Time
- 10:38 PM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4811
- Sewer Name
- 22 IRWINDALE TRUNK, SECTION 1
- City
- BALDWIN PARK
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_663058_TV22108_OCT2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 22 1043
- Downstream MH
- 22 1042
- Dir. of Survey
- Downstream
- Length Surveyed
- 455.2 ft.
- Total Length
- 455.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2P00
- O&M Rating
- 172
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 172
Observation photos (1)

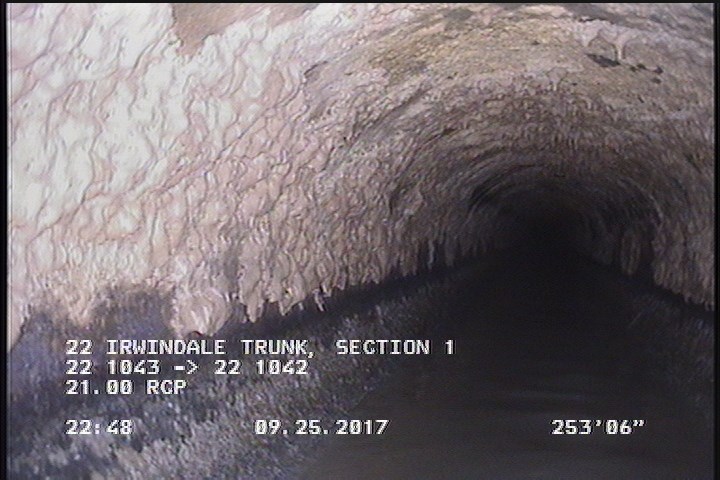

20 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 450 | MGO | Magnesium Hydroxide Coat, 50% intact, 8 to 4 oclock |
| 455.2 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 455.2 | AMH | 22 1042 |
| 0 | MWL | — |
| 20 | DAE | — |
| 0 | AMH | 22 1043 |
| 0 | MWM | — |
| 450.2 | DAE | — |
Properties (4)
- additional_info
- SC353057
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-25T22:38:41-07:00
