Wastewater/Activity/PacpInspection/1.0Sep 26, 2017, 06:23 AM
22 1042_22 1041 _25092017_234856.mp4
- Date
- 09/25/2017
- W/O
- 663058
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00811
- PipeID
- P17411
- Time
- 11:23 PM
- Certificate
- 07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4811
- Sewer Name
- 22 IRWINDALE TRUNK, SECTION 1
- City
- BALDWIN PARK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_663058_TV22108_OCT2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 22 1042
- Downstream MH
- 22 1041
- Dir. of Survey
- Downstream
- Length Surveyed
- 320.9 ft.
- Total Length
- 320.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

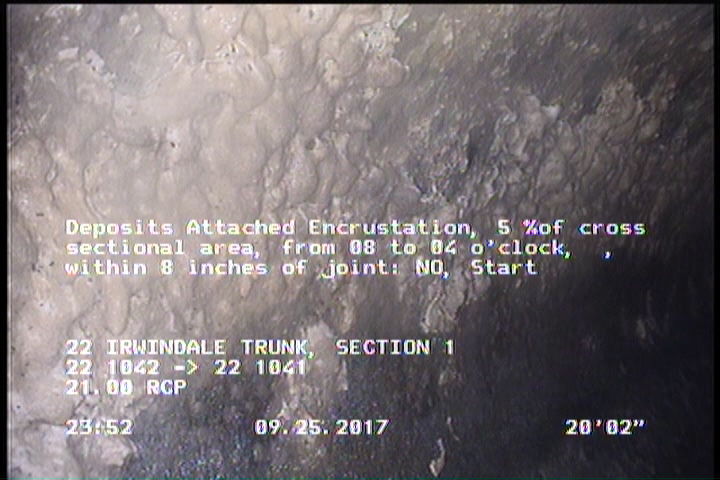

20.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start

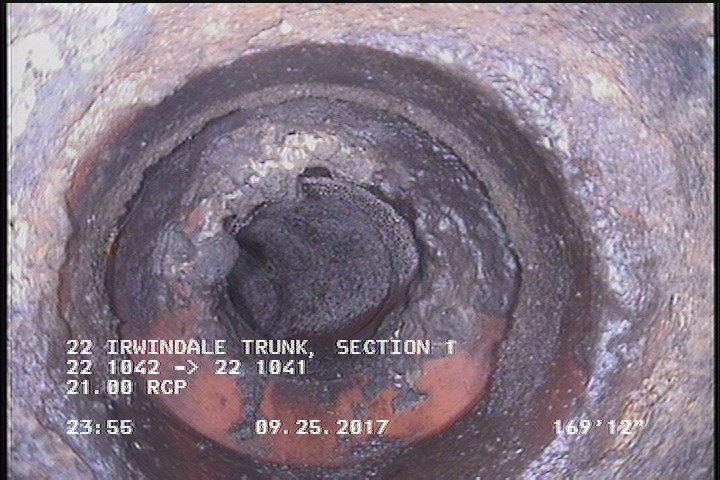

169.9 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 320.9 | AMH | 320.90 |
| 318 | MGO | Magnesium Hydroxide Coat, 50% intact, 8 to 4 oclock |
| 318.2 | DAE | — |
| 20.1 | DAE | — |
| 272.6 | TFC | — |
| 320.9 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 22 1042 |
| 169.9 | TF | — |
| 0 | MGO | Magnesium Hydroxide Coat, 50%, from 8 to 4 oclock |
| 186.7 | TFC | — |
Properties (4)
- additional_info
- SC353057
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-25T23:23:51-07:00
