Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 26, 2017, 06:25 AM

  • 22 1041_22 1040 _26092017_000038.mp4

Date
09/25/2017
W/O
663058
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00811
PipeID
P17410
Time
11:25 PM
Certificate
07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4811
Sewer Name
22 IRWINDALE TRUNK, SECTION 1
City
BALDWIN PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
24
Purpose
Routine Assessment
Project
WO_663058_TV22108_OCT2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
22 1041
Downstream MH
22 1040
Dir. of Survey
Downstream
Length Surveyed
666.6 ft.
Total Length
666.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2Y00
O&M Rating
262
Overall Index
2
Overall Quick
—
Overall Rating
262
Pipe schematic from manhole 22 1041 to 22 1040
MH: 22 1041MH: 22 1040downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 10410 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK9.7 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start71.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"103 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"174.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"190.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"269.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"300 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"301.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"374.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"390.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"397.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"470.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"501.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"598.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"614.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"663 ft. MGO - General Observation - Magnesium Hydroxide Coat, 40%, from 8 to 4 oclock663.7 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Finish666.6 ft. AMH - Downstream Manhole, Survey Ends - 22 1040

Observation photos (1)

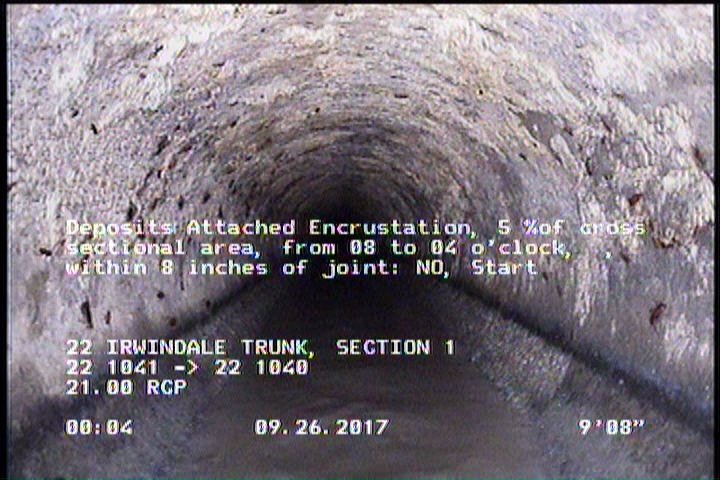

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start

    9.7 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO, Start

All inspections of P17410Work order 663058

Observations (22)

DistanceCodeObservation
374.1TFC—
103TFC—
174.9TFC—
301.3TFC—
269.8TFA—
390.3TFA—
666.6AMH22 1040
300TFA—
71.5TFC—
0AMH22 1041
0MWM—
0MWL—
663MGOMagnesium Hydroxide Coat, 40%, from 8 to 4 oclock
501.6TFC—
9.7DAE—
663.7DAE—
470.4TFC—
0MGOCONNECTION AT MH 3 O'CLOCK
598.2TFA—
190.8TFC—
614.4TFC—
397.7TFC—

Properties (4)

additional_info
SC353057
custom_field_two
4
customer
LACSD
datetime
2017-09-25T23:25:25-07:00
