Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 13, 2017, 05:36 AM

  • 22 0852_22 0851 _12102017_230536.mp4

Date
10/12/2017
W/O
663057
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00803
PipeID
P17218
Time
10:36 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5019
Sewer Name
22 DALTON TRUNK, SECTION 3
City
AZUSA, CA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Routine Assessment
Project
WO_663057_TV22105_OCT2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
22 0852
Downstream MH
22 0851
Dir. of Survey
Downstream
Length Surveyed
369.3 ft.
Total Length
369.3 ft.
Structural Index
2
Structural Quick
5131
Structural Rating
154
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
159
Pipe schematic from manhole 22 0852 to 22 0851
MH: 22 0852MH: 22 0851downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 08523.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start5.1 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start38.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"51.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"51.1 ft. RML - Roots Medium Lateral, at 10 o'clock, 10 %, within 8 inches of joint: NO80 ft. LR - Alignment Right, 15 %201.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"209.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"225.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"288.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"336.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"353.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"369.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish369.3 ft. AMH - Downstream Manhole, Survey Ends - 22 0851369.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish369.3 ft. SRV - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

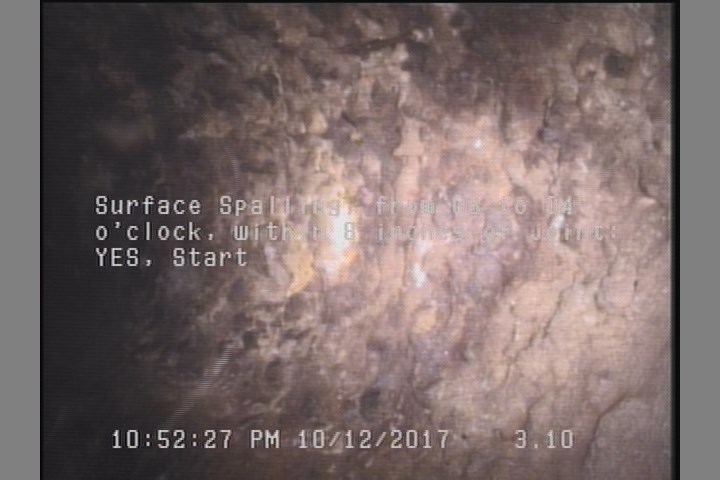

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

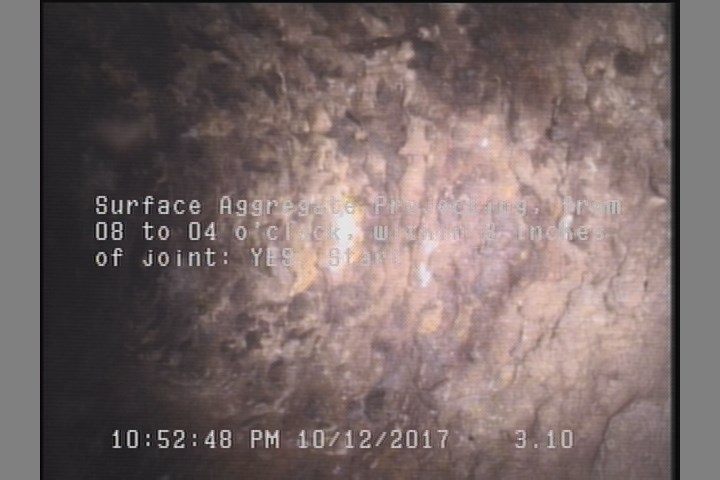

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

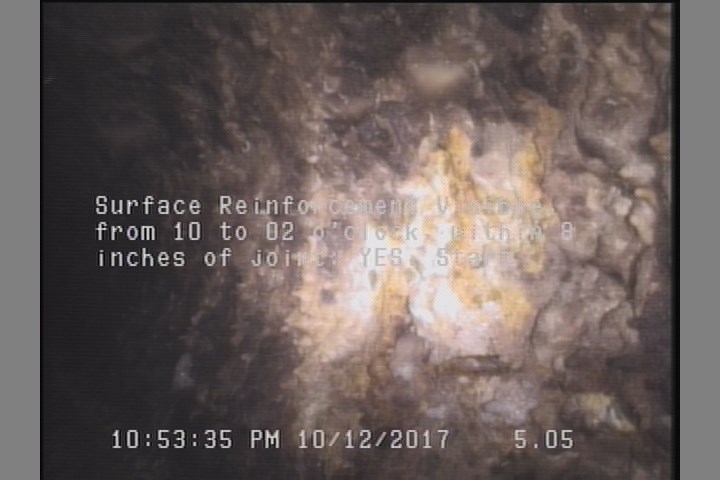

  • Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    5.1 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P17218Work order 663057

Observations (20)

DistanceCodeObservation
369.3SAP—
353.4TF—
225.1TF—
3.1SSS—
0MWL—
0MWM—
209.7TFC—
369.3AMH22 0851
3.1SAP—
288.4TFA—
51.1TF—
0AMH22 0852
336.7TFA—
369.3SSS—
369.3SRV—
38.7TF—
201.6TF—
80LR—
5.1SRV—
51.1RML—

Properties (4)

additional_info
SC346179
custom_field_two
2
customer
LACSD
datetime
2017-10-12T22:36:39-07:00
