Wastewater/Activity/PacpInspection/1.0Oct 12, 2017, 10:10 AM
22 0861_22 0860 _12102017_033559.mp4
- Date
- 10/12/2017
- W/O
- 663057
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00803
- PipeID
- P17228
- Time
- 3:10 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5018
- Sewer Name
- 22 DALTON TRUNK, SECTION 3
- City
- AZUSA, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_663057_TV22105_OCT2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 22 0861
- Downstream MH
- 22 0860
- Dir. of Survey
- Downstream
- Length Surveyed
- 375.6 ft.
- Total Length
- 375.6 ft.
- Structural Index
- 3
- Structural Quick
- 5G3N
- Structural Rating
- 568
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 568
Observation photos (3)

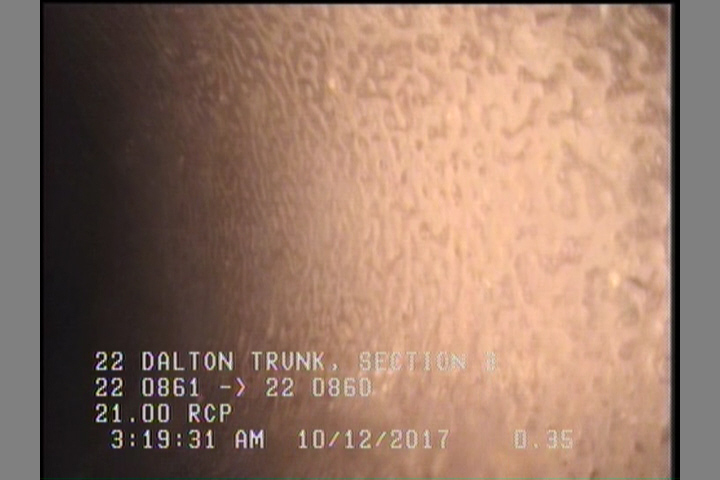

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

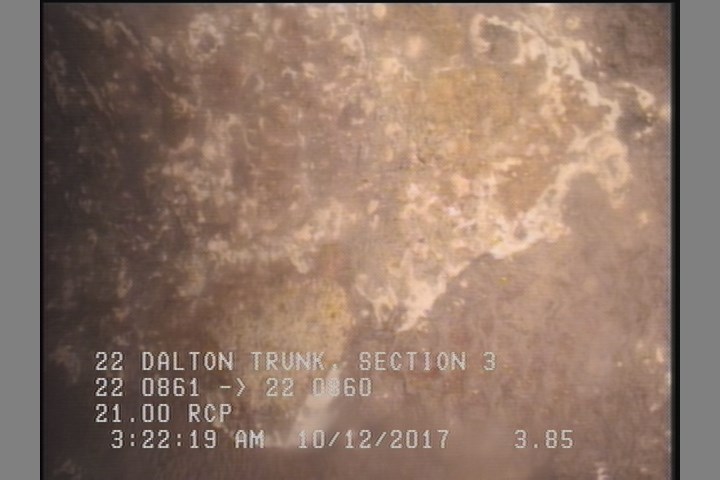

3.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

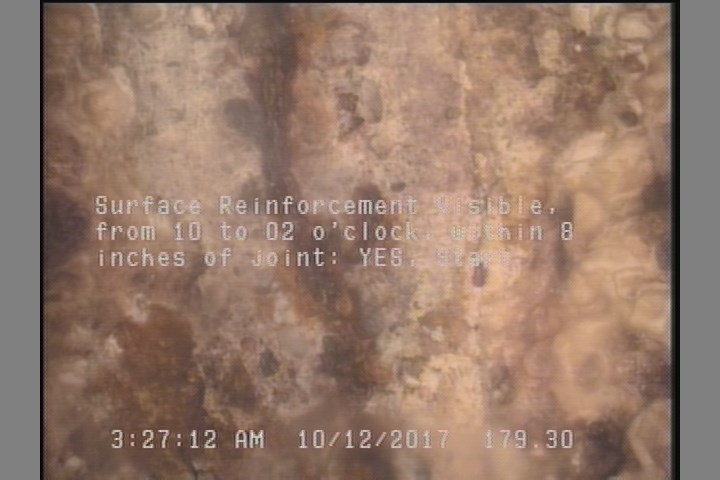

179.3 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 351.1 | TFC | — |
| 0 | MWM | — |
| 100.9 | TF | — |
| 2 | SAP | — |
| 310.9 | TFC | — |
| 375.6 | SRV | — |
| 149.2 | TF | — |
| 0 | MWL | — |
| 375.6 | AMH | 22 0860 |
| 189.6 | TFC | — |
| 375.6 | SAP | — |
| 375.6 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 22 0861 |
| 179.3 | SRV | — |
| 3.9 | SSS | — |
| 253.8 | TFC | — |
| 375.6 | SSS | — |
| 3.9 | MGO | CONNECTION AT MH 9 O'CLOCK |
Properties (4)
- additional_info
- SC346178
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-12T03:10:22-07:00
