Wastewater/Activity/PacpInspection/1.0Oct 4, 2017, 08:28 AM
16 0029_16 0028 _04102017_013002.mp4
- Date
- 10/04/2017
- W/O
- 663050
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00640
- PipeID
- P13119
- Time
- 1:28 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4991
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTION 3
- City
- SAN MARINO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_663050_TV16112_OCT2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 16 0029
- Downstream MH
- 16 0028
- Dir. of Survey
- Downstream
- Length Surveyed
- 357.9 ft.
- Total Length
- 357.9 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

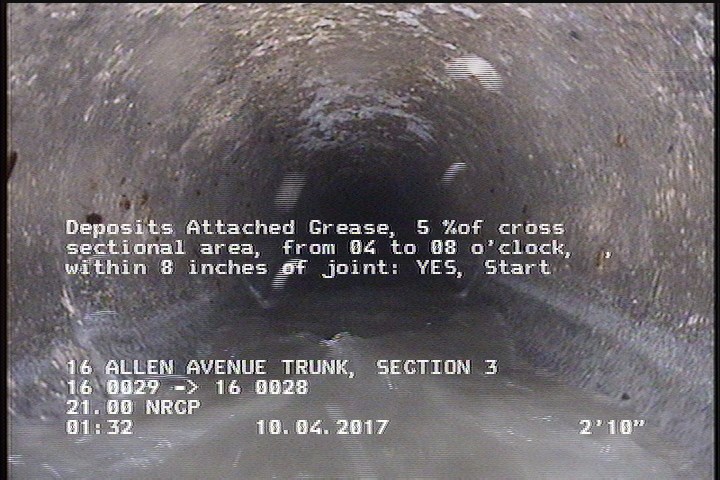

2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

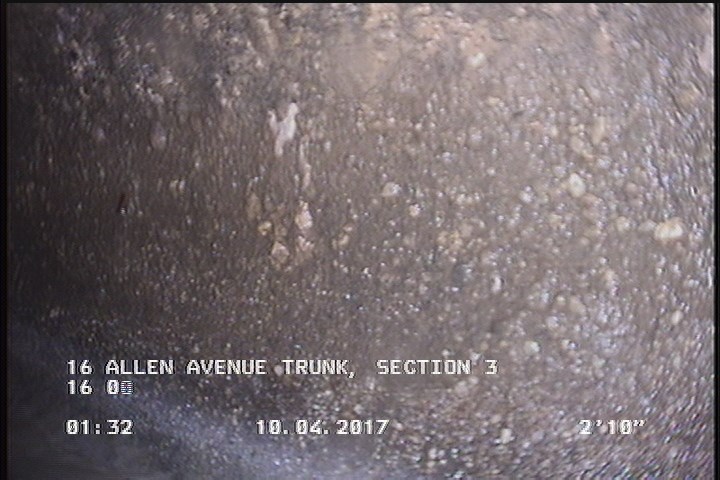

2.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 357.9 | DAGS | — |
| 357.9 | SAV | — |
| 357.9 | AMH | 16 0028 |
| 0 | MWM | — |
| 0 | AMH | 16 0029 |
| 2.9 | DAGS | — |
| 2.9 | SAV | — |
Properties (4)
- additional_info
- SC345983
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-04T01:28:49-07:00
