Wastewater/Activity/PacpInspection/1.0Oct 19, 2017, 05:33 AM
18 0561_18 0560 _18102017_223343.mp4
- Date
- 10/18/2017
- W/O
- 663025
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00685
- PipeID
- P14411
- Time
- 10:33 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5030
- Sewer Name
- 18 LA MIRADA RELIEF TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_663025_TV18131_OCT2017
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- 18 0560
- Downstream MH
- 18 0561
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

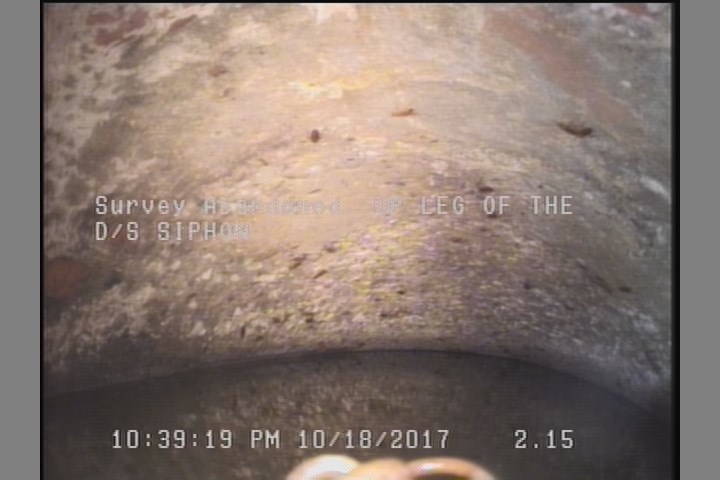

2.1 ft. - Survey Abandoned - UP LEG OF THE D/S SIPHON

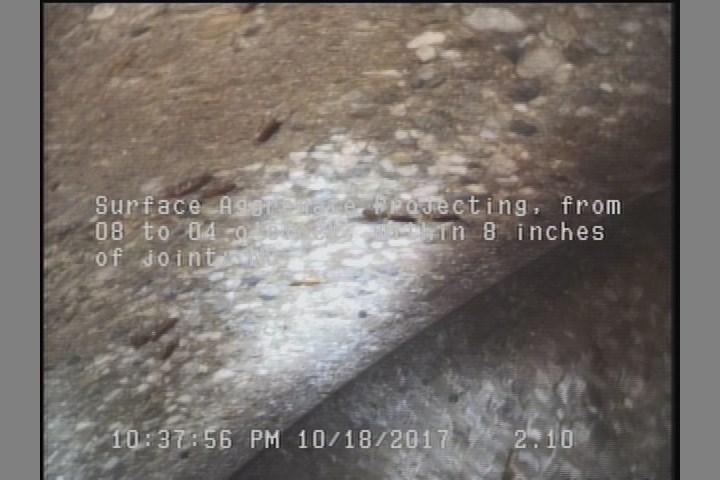

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | UP LEG OF THE D/S SIPHON |
| 2.1 | SAP | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 18 0560 |
| 0 | MGO | CONNECTION AT MH 6 O'CLOCK |
Properties (4)
- additional_info
- SC346190
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-18T22:33:30-07:00
