Wastewater/Activity/PacpInspection/1.0Oct 4, 2017, 10:40 AM
E 0126_G 0094_04102017_034125.mp4
- Date
- 10/04/2017
- W/O
- 657831
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00027
- PipeID
- P07608
- Time
- 3:40 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4903
- Sewer Name
- E JOINT OUTFALL E - UNIT 1
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_657831_TV30031_SEP2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- E 0126
- Downstream MH
- G 0094
- Dir. of Survey
- Downstream
- Length Surveyed
- 16.8 ft.
- Total Length
- 16.8 ft.
- Structural Index
- 4
- Structural Quick
- 5132
- Structural Rating
- 11
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (2)

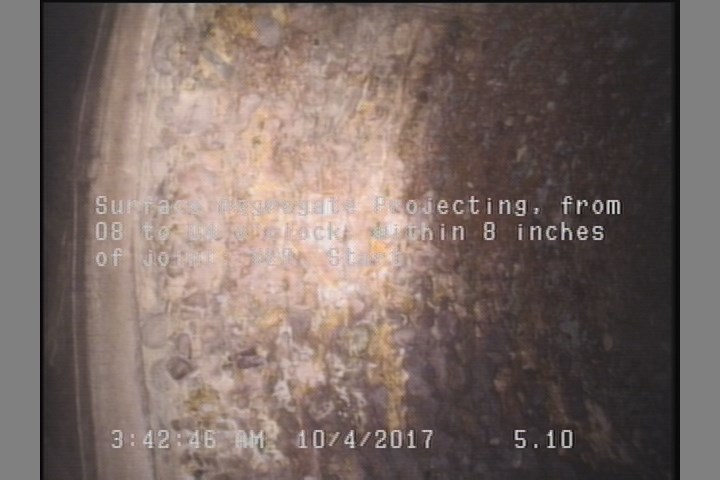

5.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

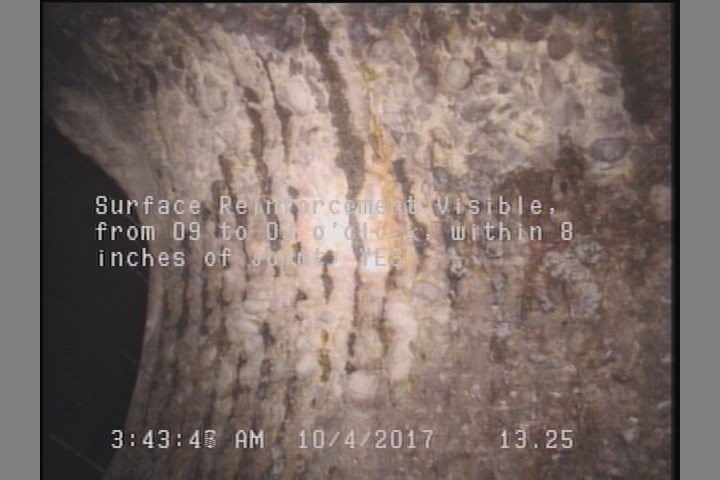

13.3 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 5.1 | SAP | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 16.8 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 16.8 | SAP | — |
| 0 | AMH | E 0126 |
| 16.8 | AMH | G 0094 |
| 0 | MWL | — |
| 13.3 | SRV | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC346163
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-04T03:40:51-07:00
