Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 5, 2017, 11:44 AM

  • 29 0840_29 0739_1242017_034608.mp4

  • 29 0840_29 0739_1252017_034830.mp4

Date
12/05/2017
W/O
0674132
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01090
PipeID
P24660
Time
3:44 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0691
Sewer Name
29 ALAMITOS PUMPING PLANT SEWER
City
SIGNAL HILL
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Capital Improvement Program Assesment
Project
20171204MDM_ALAMITOS_PUMPING_PLANT_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0739
Downstream MH
29 0840
Dir. of Survey
Upstream
Length Surveyed
235.1 ft.
Total Length
235.1 ft.
Structural Index
2
Structural Quick
2800
Structural Rating
16
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 29 0739 to 29 0840
MH: 29 0739MH: 29 0840upstream0 ft. AMH - Upstream Manhole, Survey Ends - 4:20AM22.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active36.6 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H55.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped72.6 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL72.6 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL73.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped76.1 ft. MGO - General Observation - REPAIR121.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open132.2 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - SLIGHT132.2 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H154.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped155.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL155.7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL203.1 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE203.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped206.9 ft. MGO - General Observation - SLIGHT OFF-SET JOINTS THROUGHOUT REACH227.1 ft. MGO - General Observation - 8" VCP235.1 ft. AMH - Downstream Manhole, Survey Begins - 3:45AM235.1 ft. MWM - Water Mark, 20 %of cross sectional area235.1 ft. MWL - Water Level, 5 %of cross sectional area235.1 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active235.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active

Observation photos (4)

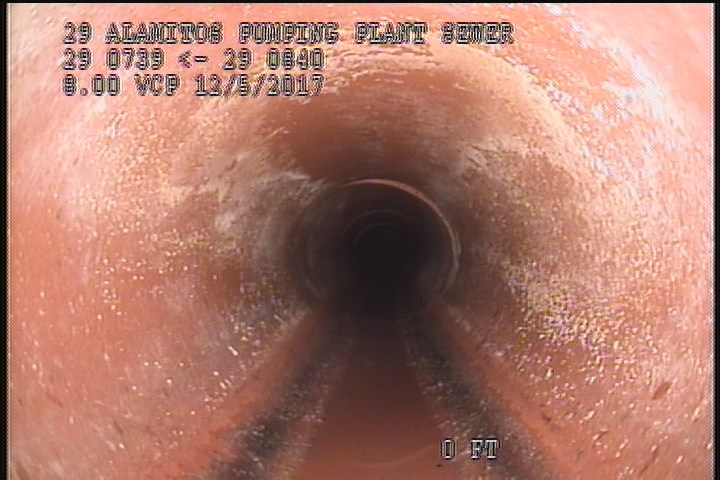

  • General Observation - 8" VCP

    8 ft. - General Observation - 8" VCP

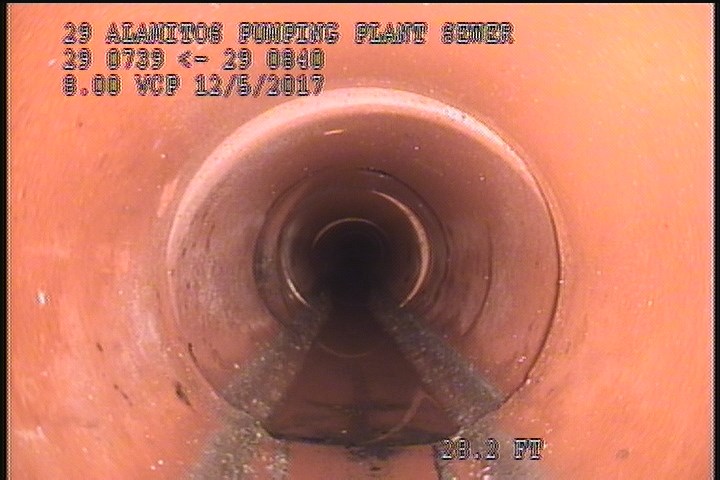

  • General Observation - SLIGHT OFF-SET JOINTS THROUGHOUT REACH

    28.2 ft. - General Observation - SLIGHT OFF-SET JOINTS THROUGHOUT REACH

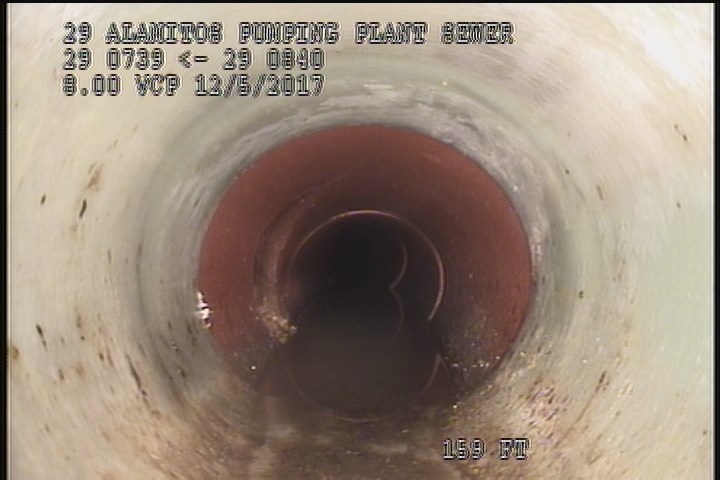

  • General Observation - REPAIR

    159 ft. - General Observation - REPAIR

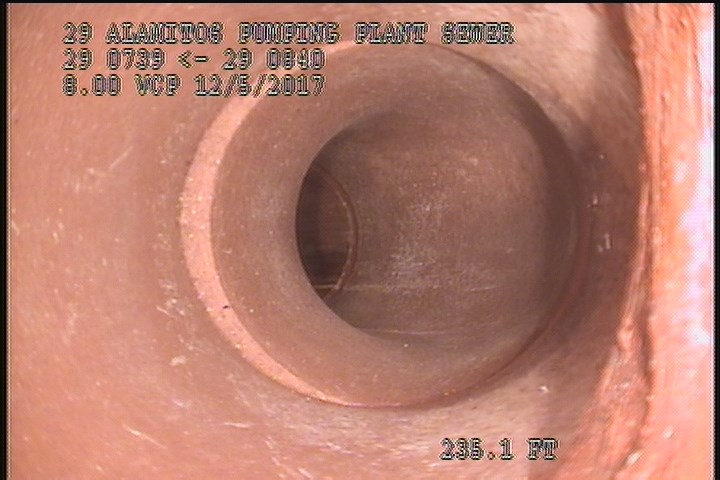

  • Upstream Manhole, Survey Ends - 4:20AM

    235.1 ft. - Upstream Manhole, Survey Ends - 4:20AM

All inspections of P24660Work order 0674132

Observations (23)

DistanceCodeObservation
32FCHAIRLINE
80.5TFCCapped
0AMH3:45AM
179.4TFCCapped
0MWM—
212.2TFActive
159MGOREPAIR
0MWL—
0MGOConn. @ Mh, 9 O' Clock. Active
31.4TFCCapped
162.5FCSL
79.4FCSL
113.2TFOpen
28.2MGOSLIGHT OFF-SET JOINTS THROUGHOUT REACH
8MGO8" VCP
162.5FCSL
198.5FCH
102.9FCSLIGHT
79.4FCSL
161.2TFCCapped
102.9FCH
235.1AMH4:20AM
0MGOConn. @ Mh, 3 O' Clock. Active
