Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2017, 01:30 PM

  • 05 1340_05 1339_1222017_064148.mp4

Date
12/02/2017
W/O
0674253
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00444
PipeID
P06557
Time
5:30 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0687
Sewer Name
05 GARDENA PUMP TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
20171202MDM_GARDENA_PUNP_TRUNK
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
05 1339
Downstream MH
05 1340
Dir. of Survey
Upstream
Length Surveyed
176.8 ft.
Total Length
176.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 05 1339 to 05 1340
MH: 05 1339MH: 05 1340upstream0 ft. AMH - Downstream Manhole, Survey Ends - 6:55AM0.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active63.8 ft. MGO - General Observation - LINER PATCH74.2 ft. MGO - General Observation - 18" CIPP LINER168.8 ft. MGO - General Observation - 18" NRCP-CIPP176.8 ft. MWM - Water Mark, 50 %of cross sectional area176.8 ft. MWL - Water Level, 40 %of cross sectional area176.8 ft. AMH - Downstream Manhole, Survey Begins - 6:35AM

Observation photos (3)

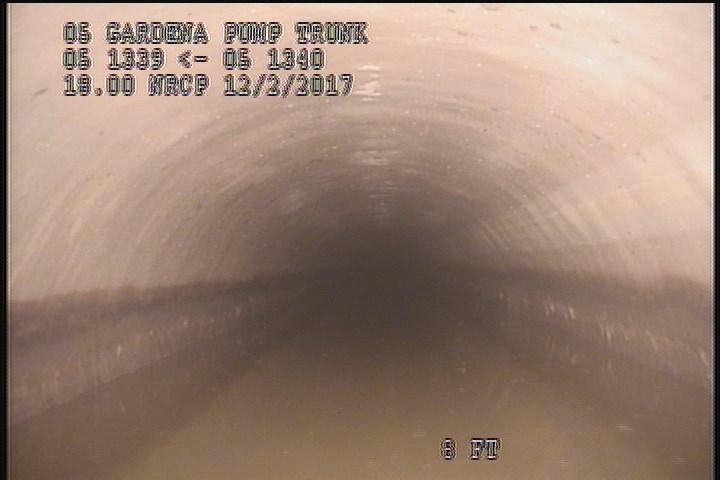

  • General Observation - 18" NRCP-CIPP

    8 ft. - General Observation - 18" NRCP-CIPP

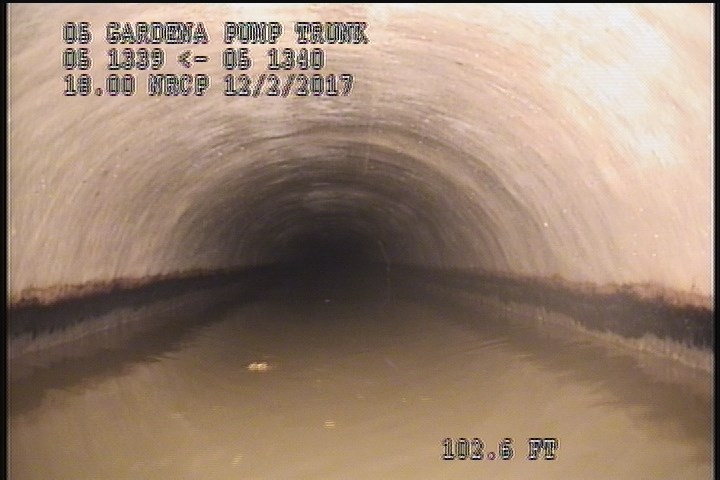

  • General Observation - 18" CIPP LINER

    102.6 ft. - General Observation - 18" CIPP LINER

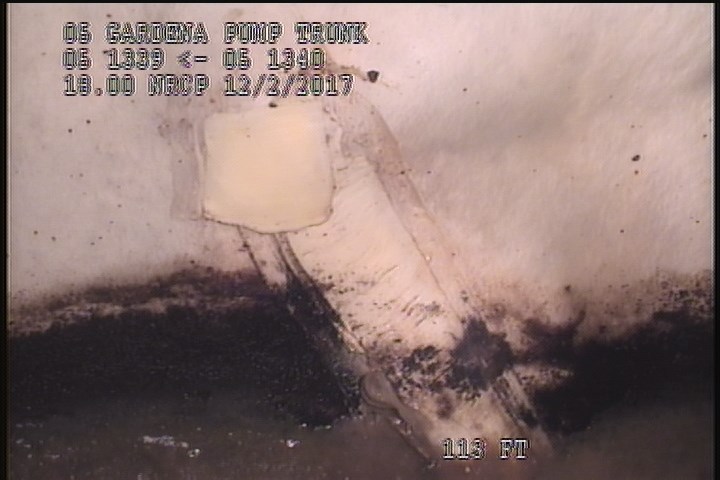

  • General Observation - LINER PATCH

    113 ft. - General Observation - LINER PATCH

All inspections of P06557Work order 0674253

Observations (9)

DistanceCodeObservation
0MWM—
102.6MGO18" CIPP LINER
113MGOLINER PATCH
176.8AMH6:55AM
0MWL—
176.6MGOConn. @ Mh, 3 O' Clock. Active
8MGO18" NRCP-CIPP
0AMH6:35AM
176.6MGOConn. @ Mh, 9 O' Clock. Active

Properties (4)

custom_field_three
LINER GOOD CONDITION
custom_field_two
4
customer
LACSD
datetime
2017-12-02T05:30:32-08:00
