Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2017, 01:26 PM

  • 05 1341_05 1340_1222017_053659.mp4

Date
12/02/2017
W/O
0674253
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00444
PipeID
P06558
Time
5:26 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0687
Sewer Name
05 GARDENA PUMP TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
20171202MDM_GARDENA_PUNP_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 1341
Downstream MH
05 1340
Dir. of Survey
Downstream
Length Surveyed
370.8 ft.
Total Length
370.8 ft.
Structural Index
3
Structural Quick
3800
Structural Rating
24
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
24
Pipe schematic from manhole 05 1341 to 05 1340
MH: 05 1341MH: 05 1340downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:30AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC8 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open8 ft. MGO - General Observation - 15" NRCP16.3 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SLIGHT55.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open77.8 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - HAIRLINE77.8 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - H105 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped137.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL137.6 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H153.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped186.2 ft. SAP - Surface Aggregate Projecting, from 07 to 08 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC202.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped209.6 ft. MGO - General Observation - 15" NRCP209.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC251.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped302.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped353.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped365.7 ft. MGO - General Observation - PLASTIC PIPE370.5 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish - SEVERER AGG SPORATIC370.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 10" - Open370.8 ft. AOC - Drop Connection, Survey Ends - 6:05AM

Observation photos (7)

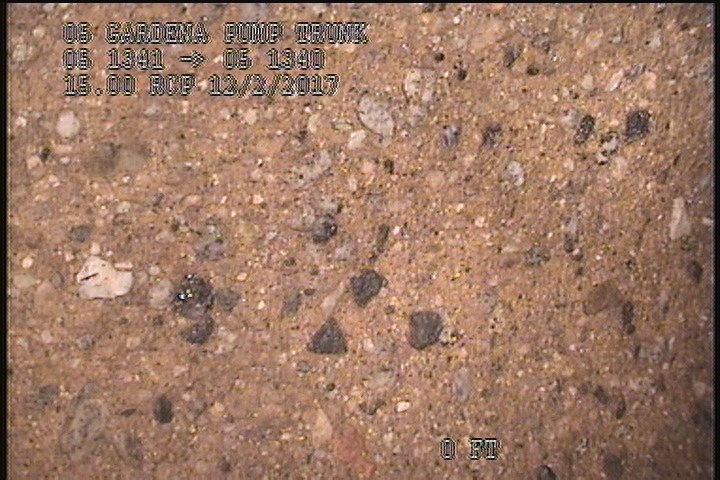

  • Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

    2 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

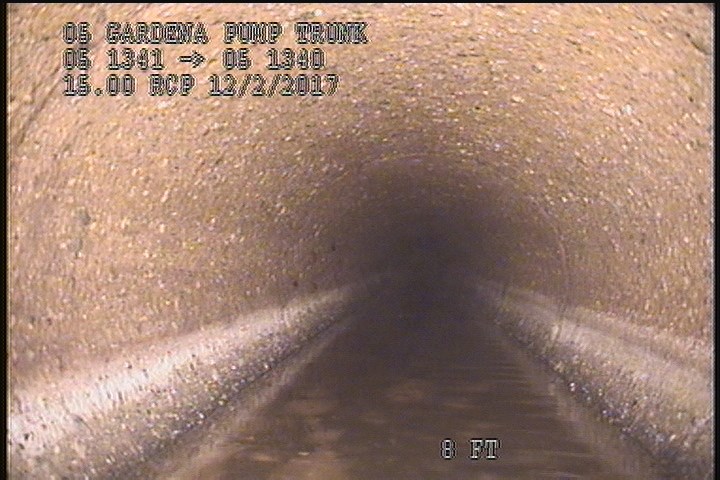

  • General Observation - 15" NRCP

    8 ft. - General Observation - 15" NRCP

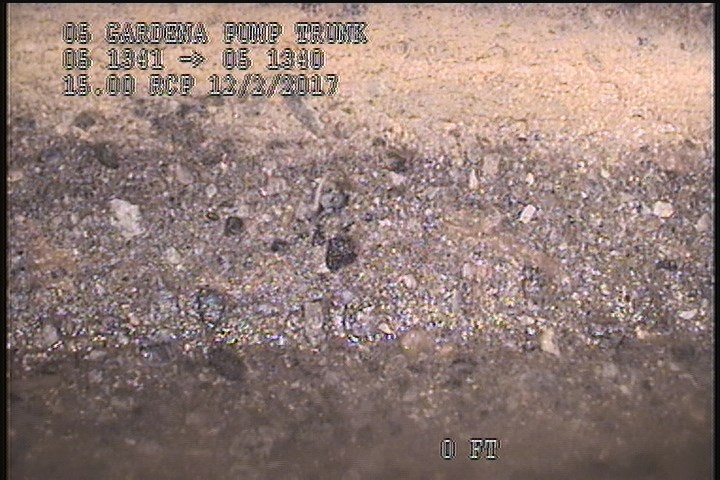

  • Surface Aggregate Projecting, from 07 to 08 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

    186.2 ft. - Surface Aggregate Projecting, from 07 to 08 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

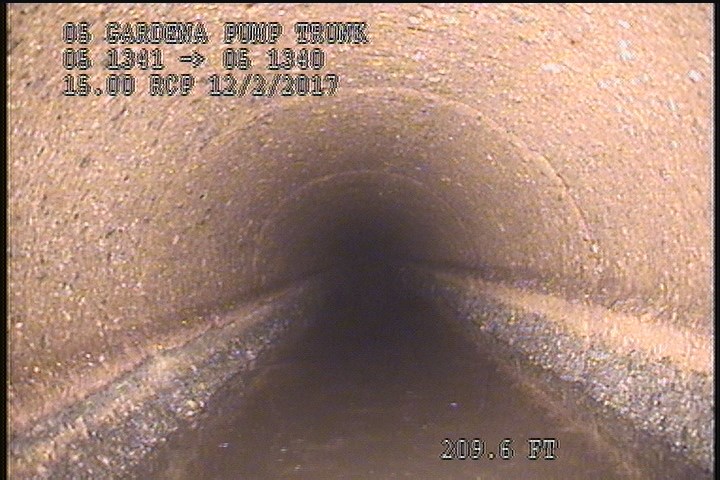

  • General Observation - 15" NRCP

    209.6 ft. - General Observation - 15" NRCP

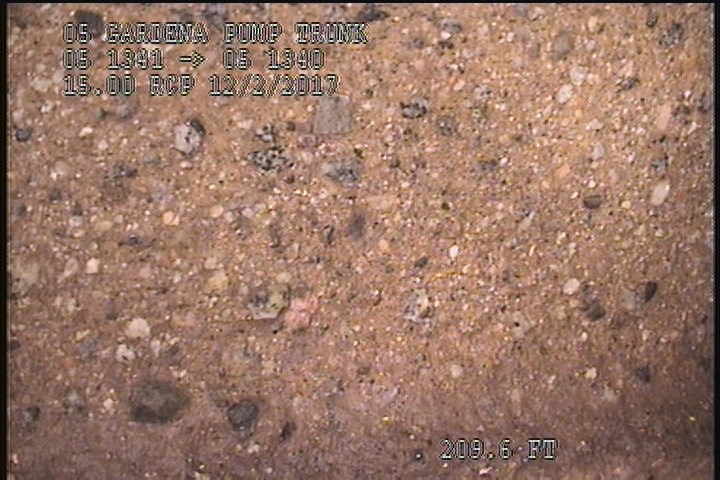

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

    209.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

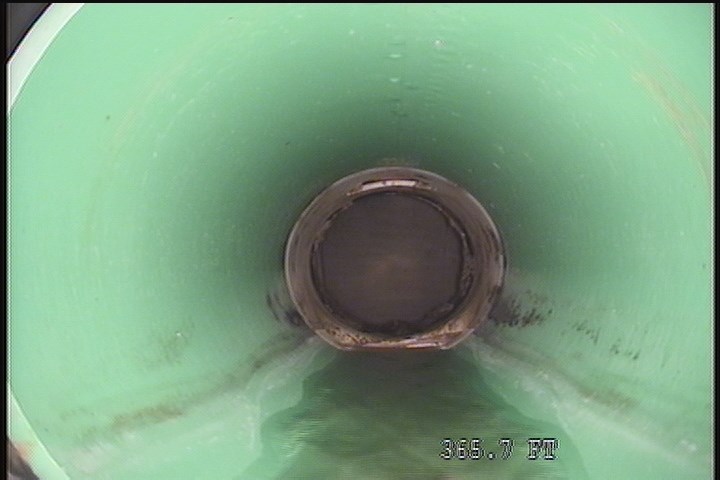

  • General Observation - PLASTIC PIPE

    365.7 ft. - General Observation - PLASTIC PIPE

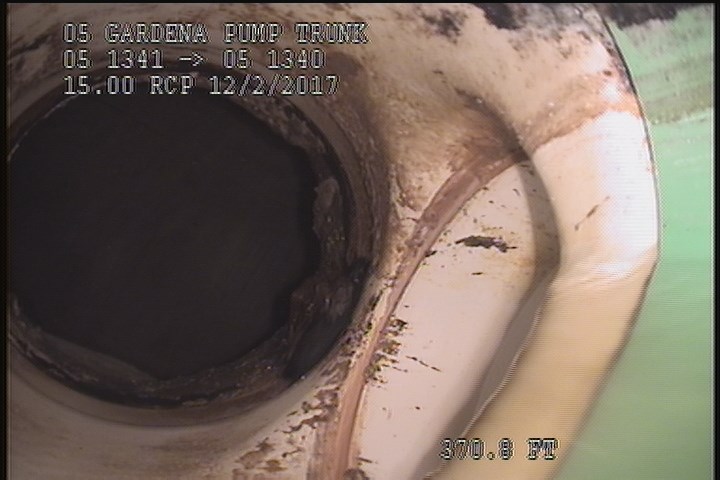

  • Drop Connection, Survey Ends - 6:05AM

    370.8 ft. - Drop Connection, Survey Ends - 6:05AM

All inspections of P06558Work order 0674253

Observations (25)

DistanceCodeObservation
2SAPSEVERE AGG SPORATIC
77.8FLHAIRLINE
105TFCCapped
251.2TFCCapped
0AMH5:30AM
8TFOpen
137.6FLSL
370.5SAPSEVERER AGG SPORATIC
153.9TFCCapped
365.7MGOPLASTIC PIPE
8MGO15" NRCP
0MWM—
209.6MGO15" NRCP
209.6SAPSEVERE AGG SPORATIC
353.5TFCCapped
0MWL—
77.8FLH
16.3FLSLIGHT
55.8TFOpen
202.6TFCCapped
186.2SAPSEVERE AGG SPORATIC
370.5TFOpen
370.8AOC6:05AM
137.6FLH
302.3TFCCapped

Properties (4)

custom_field_three
SEVERE AGG SPORATIC PROJECTING
custom_field_two
2
customer
LACSD
datetime
2017-12-02T05:26:48-08:00
