Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 8, 2017, 11:01 AM

  • 03 0012A_03 0011A _08082017_040451.mp4

Date
08/08/2017
W/O
646534
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00366
PipeID
P05031
Time
4:01 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4678
Sewer Name
03 LOS COYOTES DIAGONAL TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
17
Purpose
Routine Assessment
Project
WO_646534_TV03011_JUL2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
03 0012A
Downstream MH
03 0011A
Dir. of Survey
Downstream
Length Surveyed
3.5 ft.
Total Length
3.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 03 0012A to 03 0011A
MH: 03 0012AMH: 03 0011Adownstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03 0012A3.5 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO3.5 ft. MSA - Survey Abandoned - SIPHON DOWNLEG

Observation photos (2)

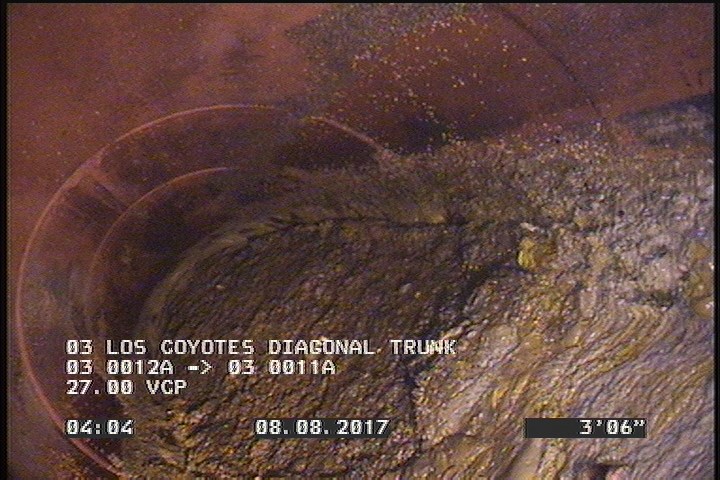

  • Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO

    3.5 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO

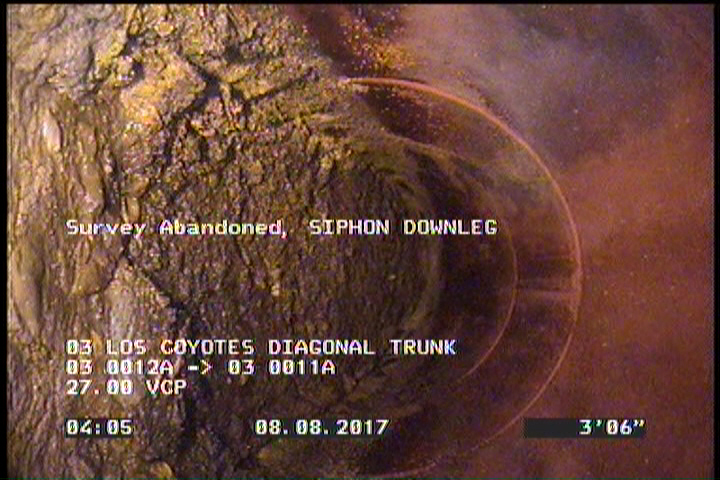

  • Survey Abandoned - SIPHON DOWNLEG

    3.5 ft. - Survey Abandoned - SIPHON DOWNLEG

All inspections of P05031Work order 646534

Observations (5)

DistanceCodeObservation
3.5DAGS—
3.5MSASIPHON DOWNLEG
0MWL—
0MWM—
0AMH03 0012A

Properties (5)

additional_info
SC345616
custom_field_two
4
customer
LACSD
datetime
2017-08-08T04:01:24-07:00
sewer_category
Siphon
