Wastewater/Activity/PacpInspection/1.0Aug 9, 2017, 10:02 AM
03 0002_03 0001 _09082017_033454.mp4
- Date
- 08/09/2017
- W/O
- 646534
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00366
- PipeID
- P05020
- Time
- 3:02 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4679
- Sewer Name
- 03 LOS COYOTES DIAGONAL TRUNK
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_646534_TV03011_JUL2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 03 0002
- Downstream MH
- 03 0001
- Dir. of Survey
- Downstream
- Length Surveyed
- 344.3 ft.
- Total Length
- 344.3 ft.
- Structural Index
- 3
- Structural Quick
- 4132
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)

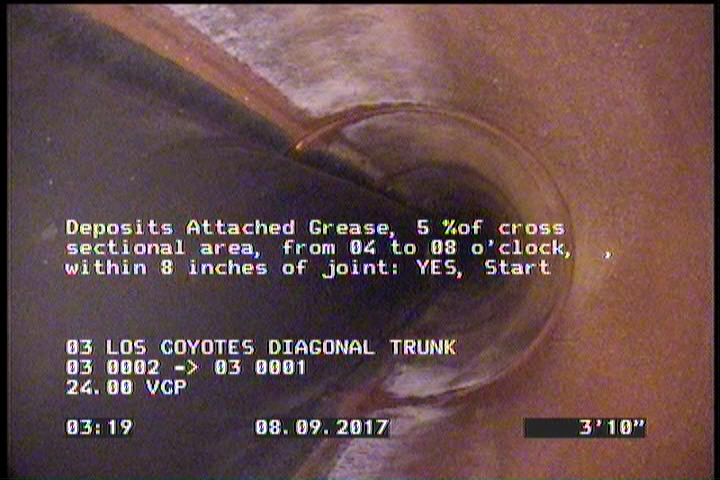

3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

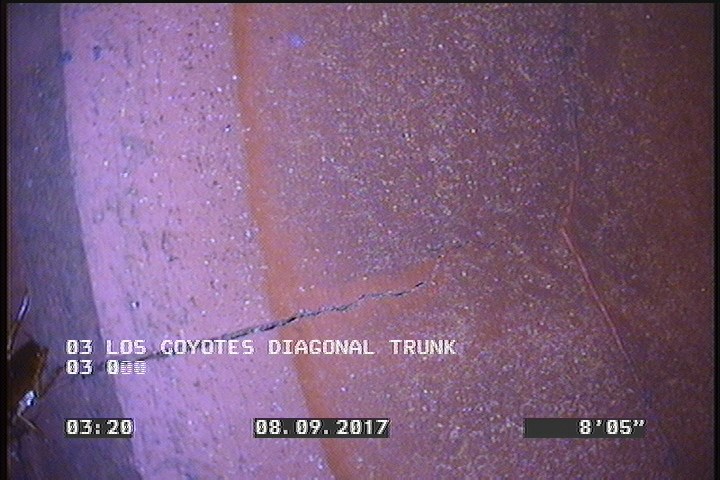

8.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

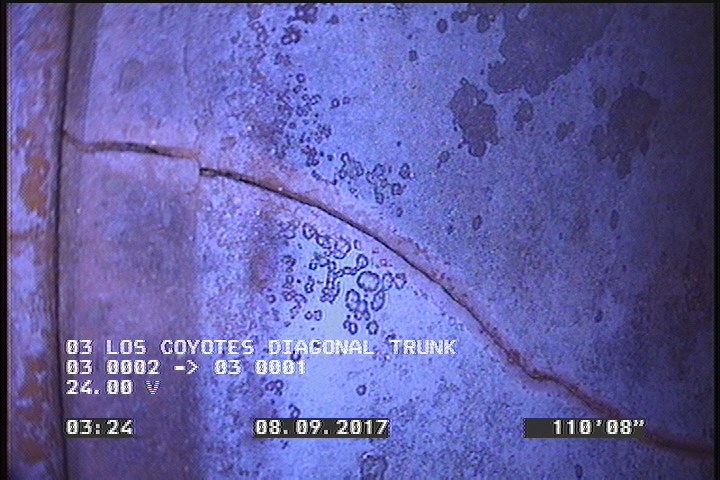

110.6 ft. - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: NO

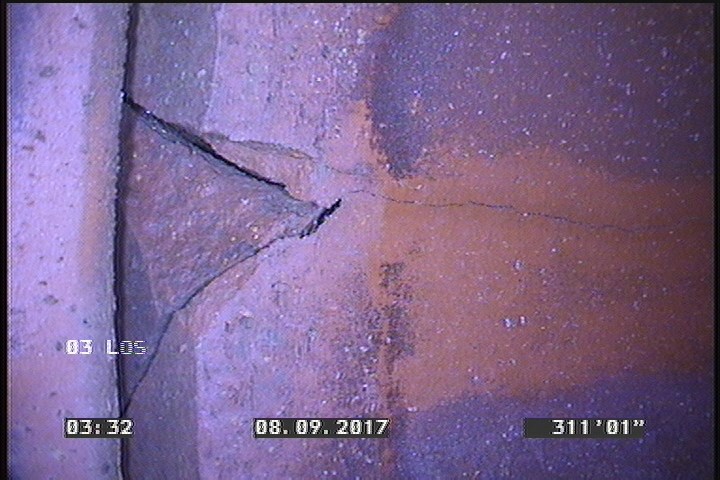

310.9 ft. - Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 310.9 | FM | — |
| 248.1 | TB | — |
| 0 | AMH | 03 0001 |
| 110.6 | FL | — |
| 8.4 | CM | — |
| 344.3 | AMH | 03 0001 |
| 344.3 | CM | — |
| 3.9 | DAGS | — |
| 344.3 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 50.5 | TB | — |
Properties (5)
- additional_info
- SC345617
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-09T03:02:40-07:00
- sewer_category
- Gravity
