Wastewater/Activity/PacpInspection/1.0Aug 3, 2017, 06:19 AM
03 0048_03 0047_02082017_233328.mp4
- Date
- 08/02/2017
- W/O
- 646910
- Weather
- Dry
- Operator/Surveyor
- B. FUGATE
- Sewer ID
- Z00366
- PipeID
- P05068
- Time
- 11:19 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4769
- Sewer Name
- 03 LOS COYOTES DIAGONAL TRUNK
- City
- LAKEWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_646534_TV03011_JUL2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 03 0048
- Downstream MH
- 03 0047
- Dir. of Survey
- Downstream
- Length Surveyed
- 337.9 ft.
- Total Length
- 337.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 126
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 126
Observation photos (3)

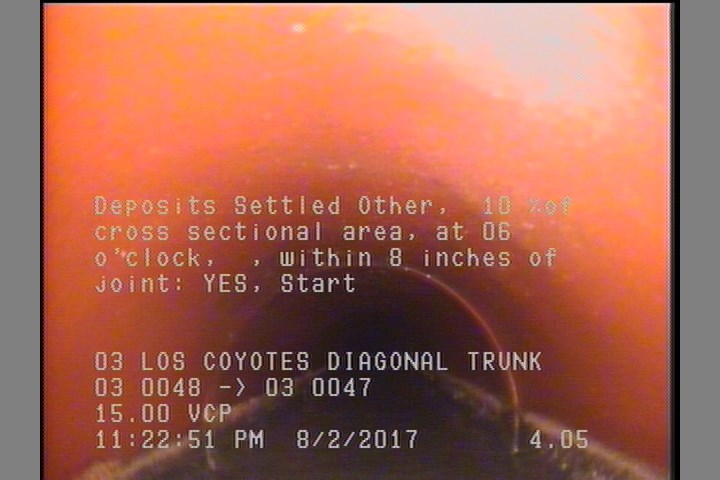

4.1 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

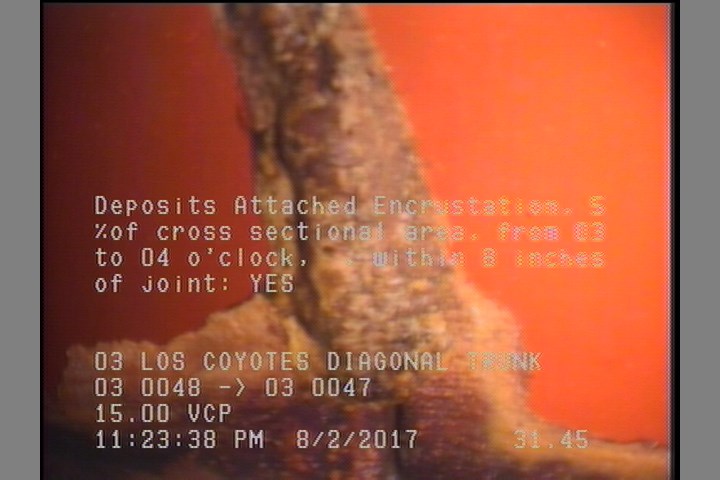

31.5 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 03 to 04 o'clock, , within 8 inches of joint: YES

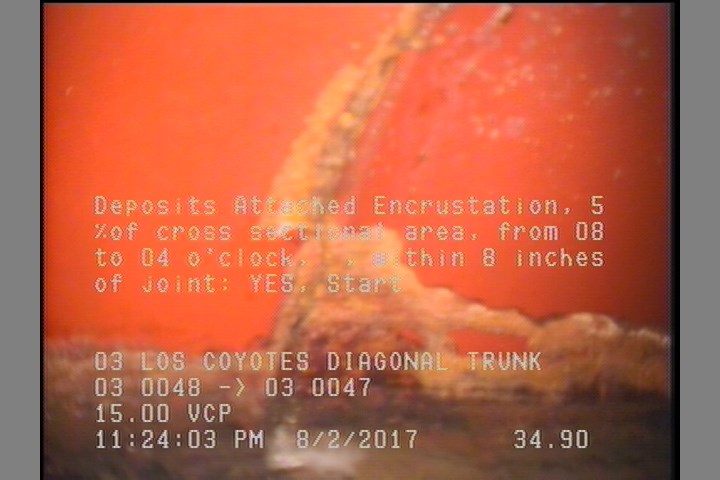

34.9 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 317.6 | TF | — |
| 337.9 | DAE | — |
| 0 | MGO | CONNECTION AT MH 7 O'CLOCK |
| 40.7 | TF | — |
| 337.9 | DSZ | — |
| 0 | AMH | 03 0048 |
| 261.8 | TF | — |
| 217.2 | TF | — |
| 34.9 | DAE | — |
| 337.9 | AMH | 03 0047 |
| 145.3 | TF | — |
| 106 | TF | — |
| 4.1 | DSZ | — |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 1 O'CLOCK |
| 0 | MWL | — |
| 31.5 | DAE | — |
Properties (5)
- additional_info
- SC345529
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-02T23:19:01-07:00
- sewer_category
- Gravity
