Wastewater/Activity/PacpInspection/1.0Aug 8, 2017, 08:15 AM
03 0017_03 0016_08082017_015136.mp4
- Date
- 08/08/2017
- W/O
- 646534
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00366
- PipeID
- P05036
- Time
- 1:15 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4678
- Sewer Name
- 03 LOS COYOTES DIAGONAL TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_646534_TV03011_JUL2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 03 0017
- Downstream MH
- 03 0016
- Dir. of Survey
- Downstream
- Length Surveyed
- 179.7 ft.
- Total Length
- 179.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (1)

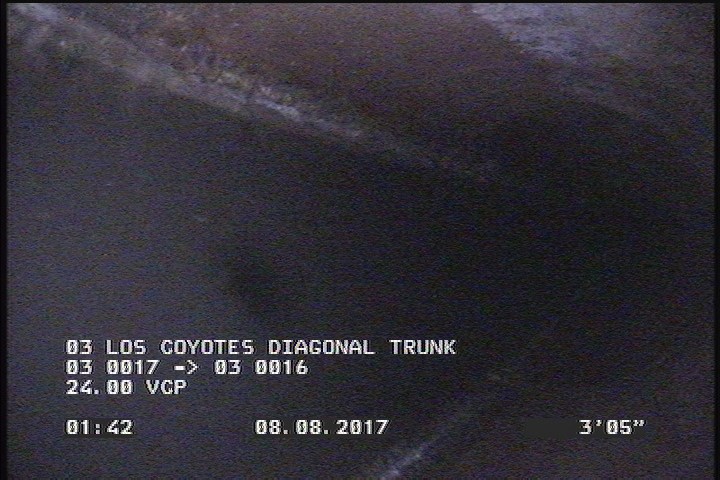

3.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 03 0017 |
| 23.5 | RML | — |
| 3.4 | DAGS | — |
| 179.7 | AMH | 03 0016 |
| 179.7 | DAGS | — |
| 0 | MWL | — |
| 179.7 | MGO | CONNECTION AT 3 OC |
| 0 | MWM | — |
| 25.6 | TB | — |
Properties (5)
- additional_info
- SC345616
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-08T01:15:09-07:00
- sewer_category
- Gravity
