Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 4, 2017, 08:18 PM

  • 05 2152A_05 2152_1242017_133056.mp4

Date
12/04/2017
W/O
0674069
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00479
PipeID
P07294
Time
12:18 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Jetting
Media Label
G7571
Sewer Name
05 MADISON STREET TRUNK
City
TORRANCE
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
35
Purpose
Capital Improvement Program Assesment
Project
20171204SHO_MADISON_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 2152A
Downstream MH
05 2152
Dir. of Survey
Downstream
Length Surveyed
43 ft.
Total Length
43 ft.
Structural Index
4
Structural Quick
5221
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 05 2152A to 05 2152
MH: 05 2152AMH: 05 2152downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01300 ft. MGO - General Observation - ACTIVE CONNECTION IN THE MH @ 30 ft. MWL - Water Level, 15 %of cross sectional area4 ft. B - Broken, from 08 to 01 o'clock, within 8 inches of joint: YES15.6 ft. B - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES20.7 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES21.8 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"34.5 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"43 ft. MGO - General Observation - CAPPED CONNECTION IN THE MH @ 343 ft. AMH - Downstream Manhole, Survey Ends - 0135

Observation photos (2)

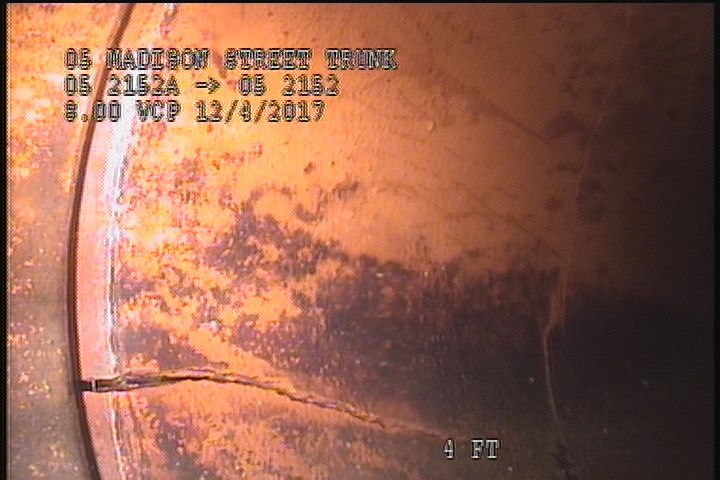

  • Broken, from 08 to 01 o'clock, within 8 inches of joint: YES

    4 ft. - Broken, from 08 to 01 o'clock, within 8 inches of joint: YES

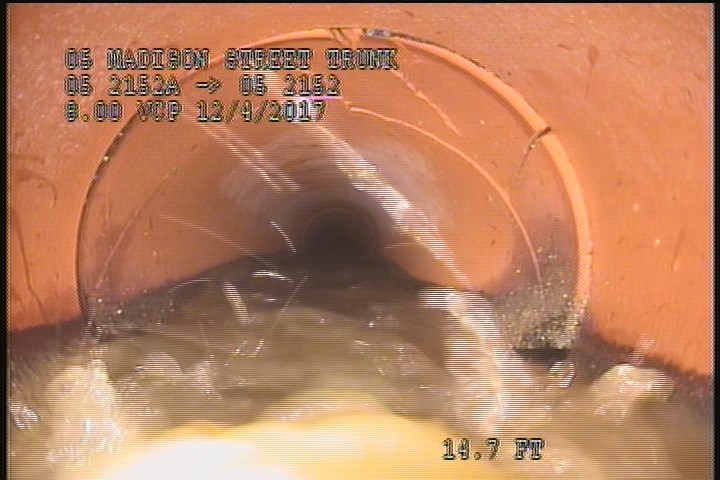

  • Broken, from 08 to 04 o'clock, within 8 inches of joint: YES

    15.6 ft. - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P07294Work order 0674069

Observations (11)

DistanceCodeObservation
4B—
0MWM—
15.6B—
0AMH0130
43MGOCAPPED CONNECTION IN THE MH @ 3
21.8TFC—
20.7CL—
0MGOACTIVE CONNECTION IN THE MH @ 3
43AMH0135
0MWL—
34.5TFC—

Properties (4)

custom_field_three
BROKEN PIPE
custom_field_two
2
customer
LACSD
datetime
2017-12-04T12:18:03-08:00
