Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 2, 2017, 07:05 PM

  • F 0071A_F 0071_1222017_111700.mp4

Date
12/02/2017
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00035
PipeID
P10157
Time
11:05 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7569
Sewer Name
F JOINT OUTFALL F - UNIT 3A
City
BELLFLOWER
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Routine Assessment
Project
20171202DF_JOINT_OUTFALL_F_UNIT_3A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Upstream MH
F 0071A
Downstream MH
F 0071
Dir. of Survey
Downstream
Length Surveyed
136.9 ft.
Total Length
136.9 ft.
Structural Index
3
Structural Quick
5132
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole F 0071A to F 0071
MH: F 0071AMH: F 0071downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:09 AM0.1 ft. MWL - Water Level, 30 %of cross sectional area0.1 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - 50% MAG COAT19.4 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start100.9 ft. MGP - General Photograph130.6 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish130.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish130.6 ft. SZ - Surface Other, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - 50 % MAG COAT130.6 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish130.6 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish133.8 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach136.9 ft. AMH - Downstream Manhole, Survey Ends - 11:46 AM136.9 ft. MGO - General Observation - Grease Throughout The Reach (5%)

Observation photos (5)

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    19.4 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

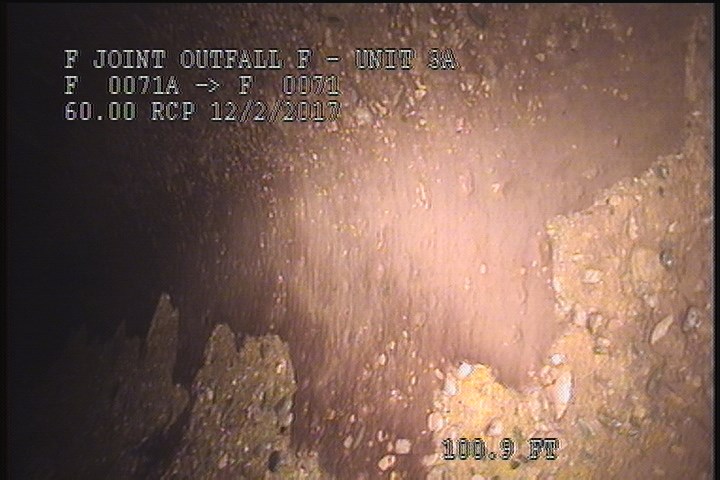

  • General Photograph

    100.9 ft. - General Photograph

All inspections of P10157Work order PENDING

Observations (17)

DistanceCodeObservation
130.6SAP—
2SAV—
0AMH11:09 AM
100.9MGP—
136.9AMH11:46 AM
130.6SSS—
0.1MWL—
130.6SZ50 % MAG COAT
19.4SRV—
133.8MGOPeeling & Flaking Throughout The Reach
2SAP—
2SSS—
136.9MGOGrease Throughout The Reach (5%)
2SZ50% MAG COAT
130.6SAV—
0.1MWM—
130.6SRV—

Properties (3)

custom_field_two
2
customer
LACSD
datetime
2017-12-02T11:05:06-08:00
