Wastewater/Activity/PacpInspection/1.0Dec 2, 2017, 03:49 PM
A 0034_A 0033_1222017_084205.mp4
- Date
- 12/02/2017
- W/O
- 0635655
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00334
- PipeID
- P08409
- Time
- 7:49 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7568
- Sewer Name
- A JOINT OUTFALL A - UNIT 3C
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Capital Improvement Program Assesment
- Project
- 20171202DF_JOA_UNIT_3C
- Material
- RCP-CTL
- Shape
- Square
- Height
- 78 in.
- Width
- 78 in.
- Upstream MH
- A 0034
- Downstream MH
- A 0033
- Dir. of Survey
- Downstream
- Length Surveyed
- 67.2 ft.
- Total Length
- 67.2 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (4)

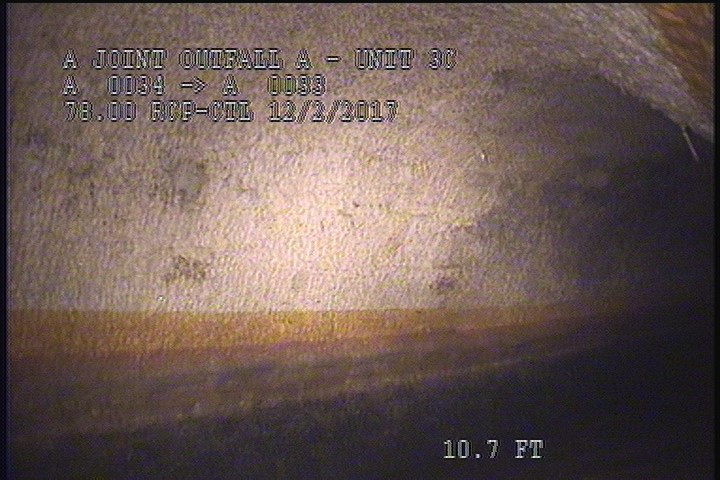

9.1 ft. - Surface Other Chemical, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - 80 % MAG COAT

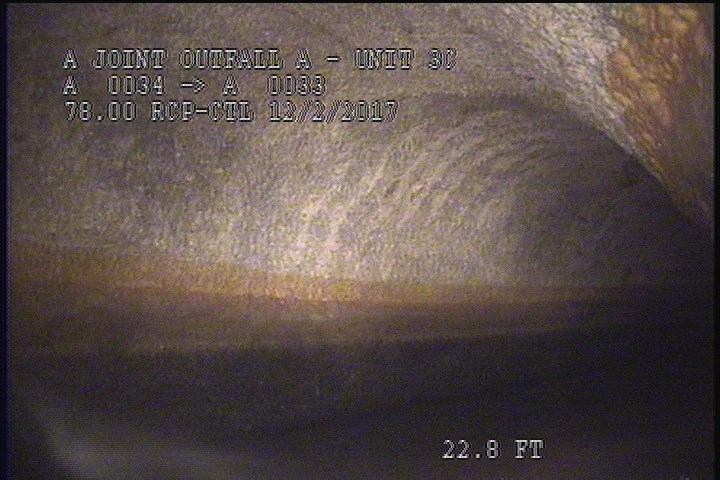

22.8 ft. - Surface Reinforcement Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

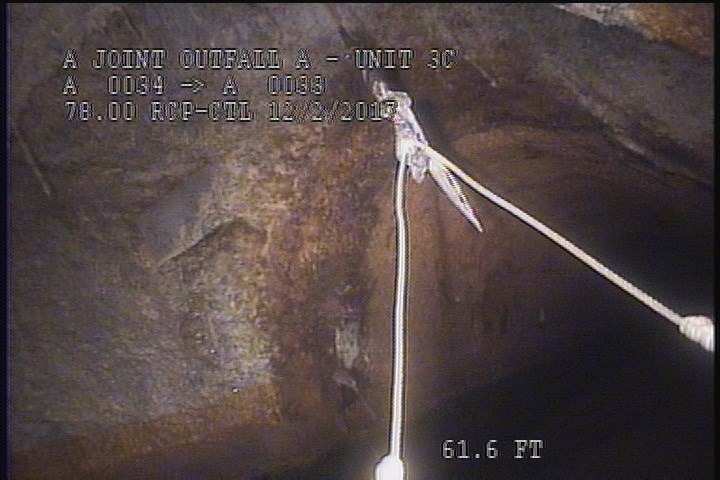

61.6 ft. - General Photograph

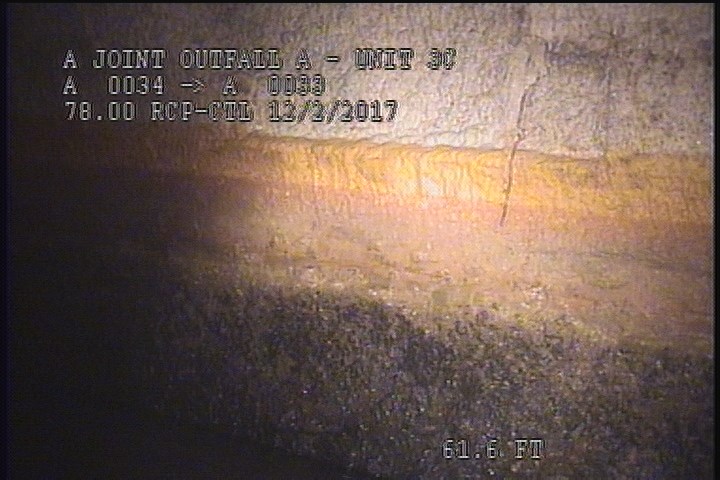

61.6 ft. - General Photograph
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 67.2 | MGO | Grease Throughout The Reach (5%) |
| 0 | MWM | — |
| 0 | MWL | — |
| 61.6 | MGP | — |
| 67.2 | AMH | 9:01 AM |
| 61.6 | MGP | — |
| 56.8 | SAV | — |
| 22.8 | SRP | — |
| 65.2 | SZC | 80 % MAG COAT |
| 65.2 | SAV | — |
| 65.2 | SRP | — |
| 0 | AMH | 8:05 AM |
| 9.1 | SZC | 80 % MAG COAT |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-02T07:49:43-08:00
