Wastewater/Activity/PacpInspection/1.0Dec 1, 2017, 05:08 PM
22 0725_22 0724_1212017_124829.mp4
- Date
- 12/01/2017
- W/O
- 0676904
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00818
- PipeID
- P17080
- Time
- 9:08 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7567
- Sewer Name
- 22 LONE HILL AVENUE TRUNK
- City
- GLENDORA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- 20171201SHO_LONE_HILL_AVE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 22 0725
- Downstream MH
- 22 0724
- Dir. of Survey
- Downstream
- Length Surveyed
- 396.7 ft.
- Total Length
- 396.7 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

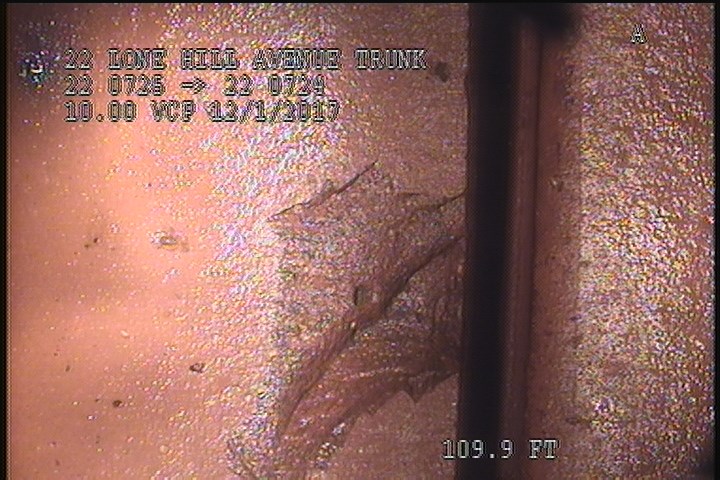

109.9 ft. - Surface Spalling, at 03 o'clock, within 8 inches of joint: YES

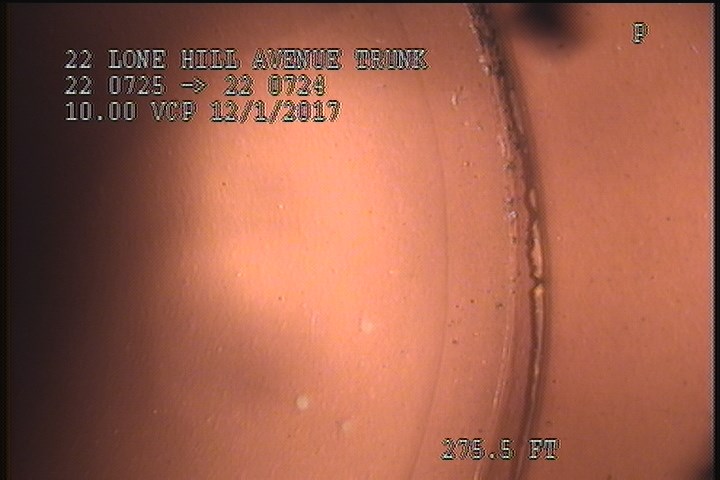

275.5 ft. - Crack Spiral, from 07 to 05 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 1250 |
| 0 | MWM | — |
| 0 | MWL | — |
| 275.5 | CS | — |
| 395.2 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 109.9 | SSS | — |
| 396.7 | AMH | 0105 |
Properties (4)
- custom_field_three
- PIPE IS IN PRETTY GOOD CONDITION
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-12-01T09:08:15-08:00
