Wastewater/Activity/PacpInspection/1.0Jul 12, 2017, 09:34 AM
18 0716_18 0715 _12072017_023503.mp4
- Date
- 07/12/2017
- W/O
- 640814
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00709
- PipeID
- P14567
- Time
- 2:34 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4642
- Sewer Name
- 18 SO WHITTIER OUTFALL RLF TR, SECTS 1,2A,2B,2C,&3
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_640814_TV18101_JUN2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Width
- 54 in.
- Upstream MH
- 18 0716
- Downstream MH
- 18 0715
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

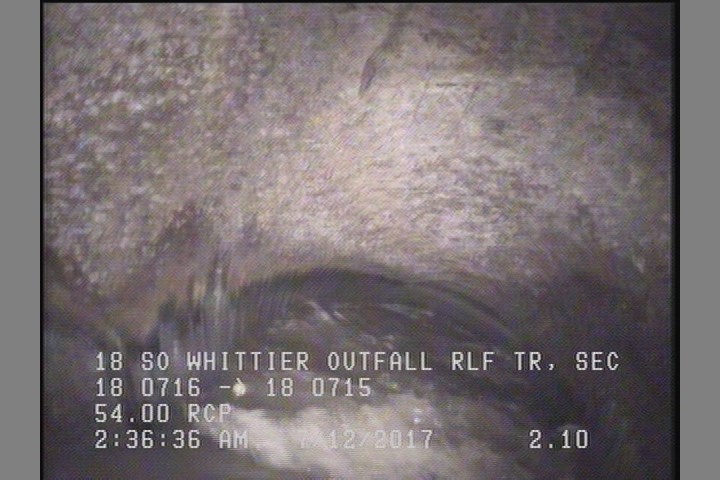

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

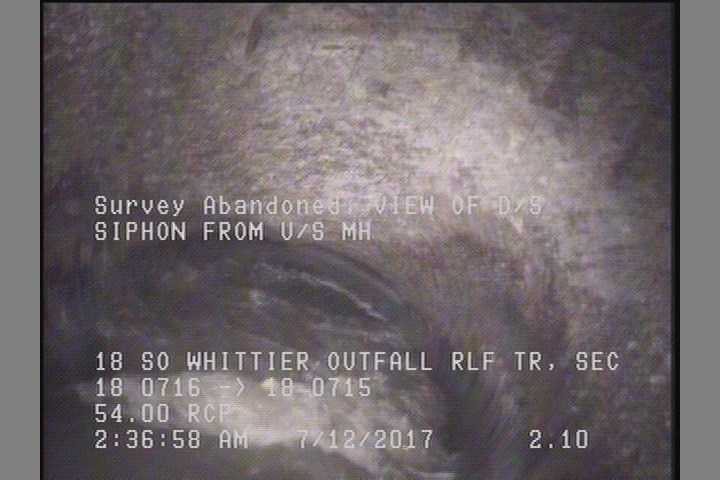

2.1 ft. - Survey Abandoned - VIEW OF D/S SIPHON FROM U/S MH
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2.1 | SAP | — |
| 0 | MWM | — |
| 0 | AMH | 18 0716 |
| 2.1 | MSA | VIEW OF D/S SIPHON FROM U/S MH |
Properties (5)
- additional_info
- SC345502
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-12T02:34:48-07:00
- sewer_category
- Siphon
