Wastewater/Activity/PacpInspection/1.0Oct 3, 2017, 07:45 AM
16 0079_16 0078 _03102017_004552.mp4
- Date
- 10/03/2017
- W/O
- 657850
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00639
- PipeID
- P13093
- Time
- 12:45 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4988
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
- City
- SAN MARINO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_657850_TV16084_SEP2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 16 0079
- Downstream MH
- 16 0078
- Dir. of Survey
- Downstream
- Length Surveyed
- 231.6 ft.
- Total Length
- 231.6 ft.
- Structural Index
- 3
- Structural Quick
- 4132
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (4)

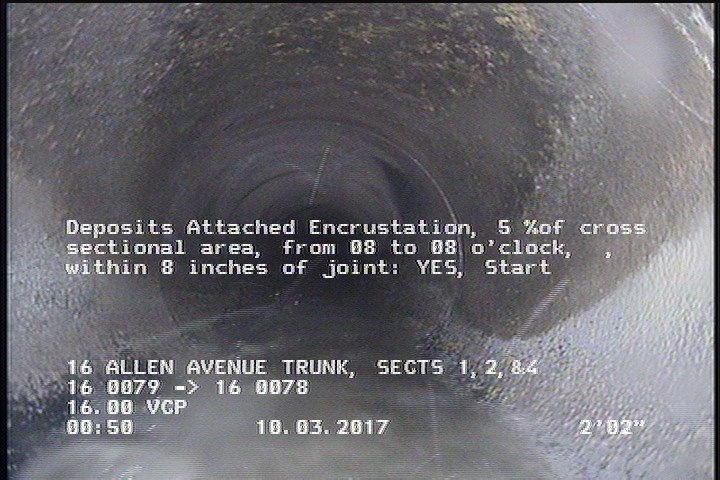

2.2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 08 o'clock, , within 8 inches of joint: YES, Start

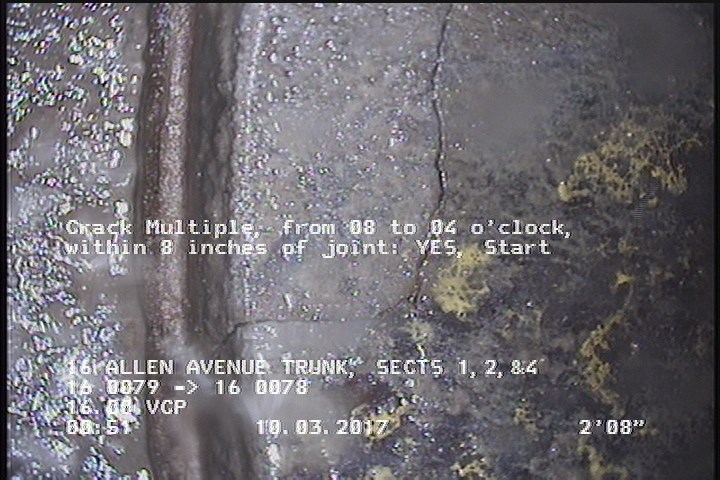

2.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
87.8 ft. - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"

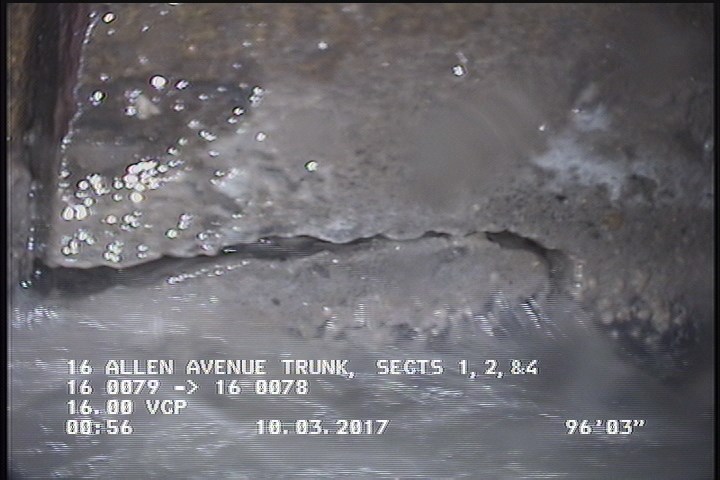

96.2 ft. - Fracture Spiral, from 07 to 08 o'clock, within 8 inches of joint: YES
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 231.6 | CM | — |
| 96.2 | FS | — |
| 136.5 | TF | — |
| 185.9 | TFC | — |
| 188.2 | TF | — |
| 87.8 | TF | — |
| 93.2 | FH2 | — |
| 0 | MWM | — |
| 38.1 | TFC | — |
| 0 | MWL | — |
| 2.2 | DAE | — |
| 231.6 | AMH | 16 0078 |
| 231.6 | DAE | — |
| 84.8 | TFC | — |
| 35.1 | TF | — |
| 2.7 | CM | — |
| 139.2 | TF | — |
| 0 | AMH | 16 0079 |
Properties (5)
- additional_info
- SC345980
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-03T00:45:28-07:00
- sewer_category
- Gravity
