Wastewater/Activity/PacpInspection/1.0Aug 23, 2017, 08:32 AM
29 0390_29 0389 _23082017_014803.mp4
- Date
- 08/23/2017
- W/O
- 651742
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00537
- PipeID
- P24427
- Time
- 1:32 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4791
- Sewer Name
- 29 21ST STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_651742_TV29055_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0390
- Downstream MH
- 29 0389
- Dir. of Survey
- Downstream
- Length Surveyed
- 235.1 ft.
- Total Length
- 235.1 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

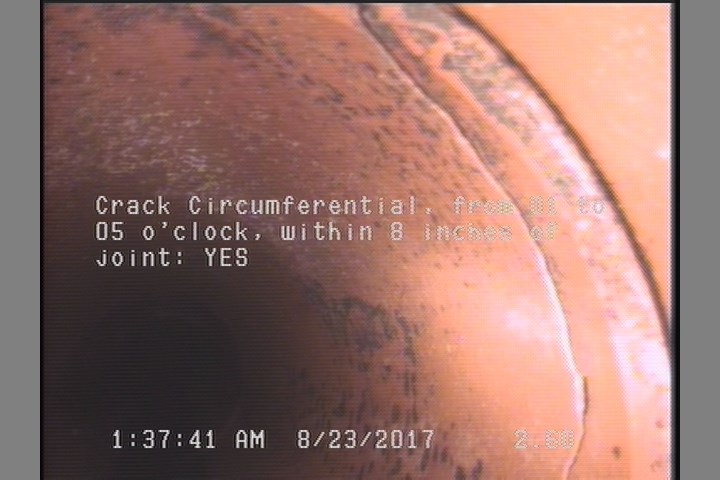

2.6 ft. - Crack Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES

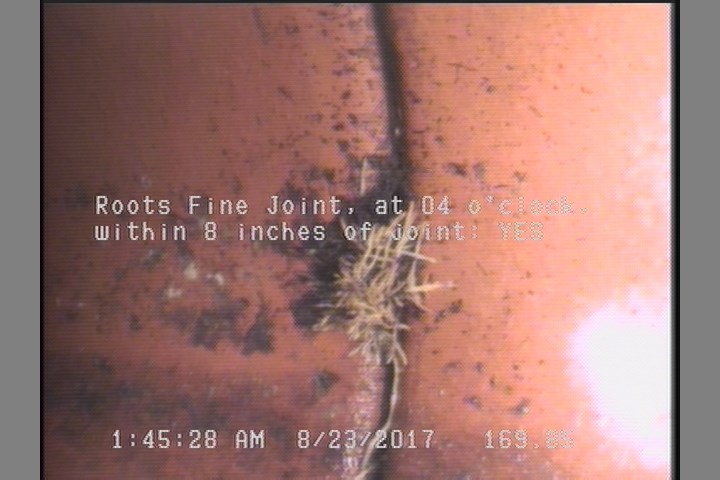

169.9 ft. - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 169.9 | RFJ | — |
| 0 | AMH | 29 0390 |
| 2.6 | CC | — |
| 235.1 | AMH | 29 0389 |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345550
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-23T01:32:45-07:00
- sewer_category
- Gravity
