Wastewater/Activity/PacpInspection/1.0Aug 29, 2017, 07:52 AM
29 0454_29 0369 _29082017_010709.mp4
- Date
- 08/29/2017
- W/O
- 651742
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00537
- PipeID
- P24495
- Time
- 12:52 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4798
- Sewer Name
- 29 21ST STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_651742_TV29055_AUG2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 29 0454
- Downstream MH
- 29 0369
- Dir. of Survey
- Downstream
- Length Surveyed
- 101.3 ft.
- Total Length
- 101.3 ft.
- Structural Index
- 3
- Structural Quick
- 3C00
- Structural Rating
- 54
- O&M Index
- 2
- O&M Quick
- 2600
- O&M Rating
- 12
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 66
Observation photos (3)

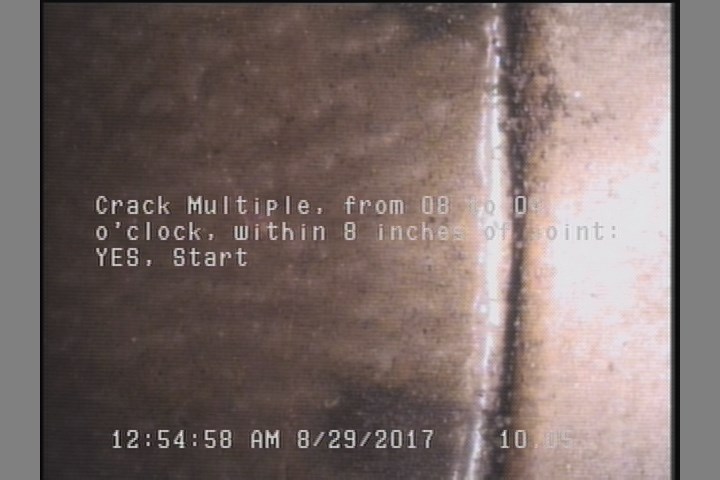

10.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

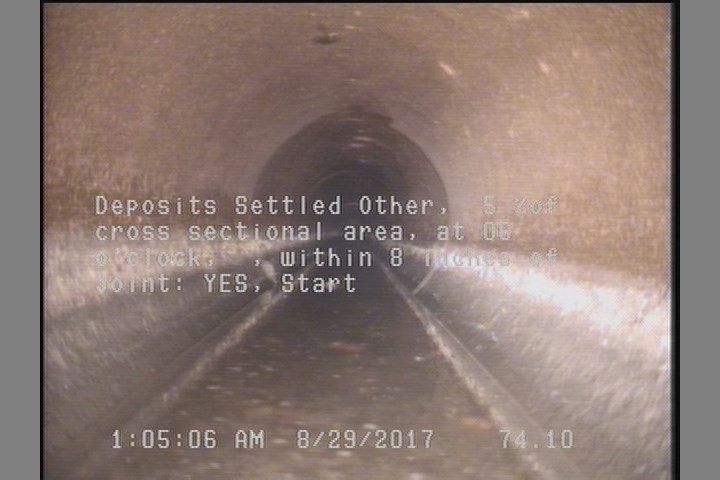

74.1 ft. - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

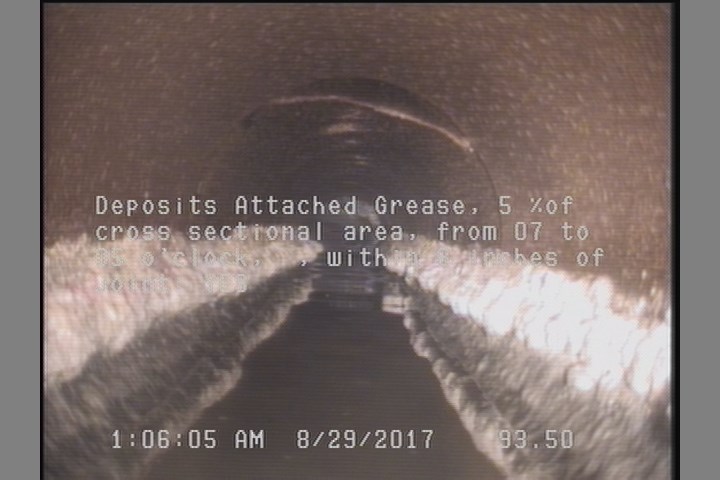

93.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 101.3 | DAGS | — |
| 10.1 | CM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 29 0454 |
| 74.1 | DSZ | — |
| 101.3 | AMH | 29 0369 |
| 93.5 | DAGS | — |
| 101.3 | CM | — |
| 101.3 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 0 | MWL | — |
| 93.5 | DSZ | — |
Properties (5)
- additional_info
- SC345907
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-29T00:52:05-07:00
- sewer_category
- Gravity
