Wastewater/Activity/PacpInspection/1.0Oct 5, 2017, 09:15 AM
16 0628_16 0627 _05102017_021644.mp4
- Date
- 10/05/2017
- W/O
- 663737
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z01075
- PipeID
- P13695
- Time
- 2:15 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4994
- Sewer Name
- 16 ALLEN AVENUE RELIEF TRUNK, SECTION 4
- City
- SAN MARINO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_663737_TV16014_OCT2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 16 0627
- Downstream MH
- 16 0628
- Dir. of Survey
- Upstream
- Length Surveyed
- 389.9 ft.
- Total Length
- 389.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 154
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 154
Observation photos (1)

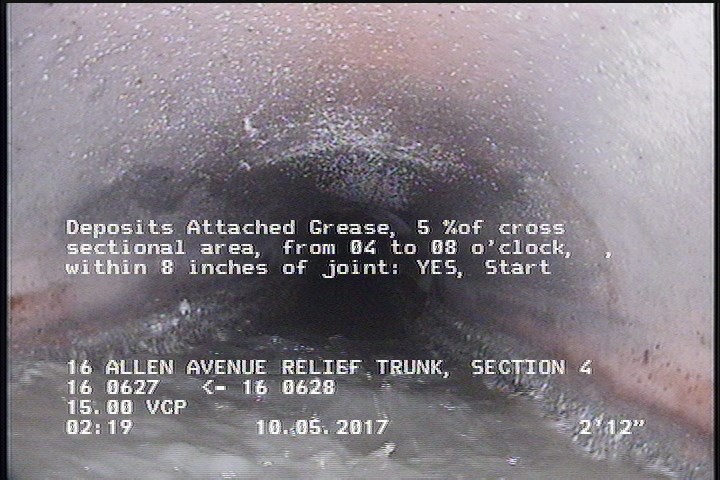

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 389.9 | AMH | 16 0628 |
| 3 | DAGS | — |
| 389 | MGO | Surface Spalling throughout the reach |
| 0 | MWM | — |
| 0 | AMH | 16 0627 |
| 389.9 | DAGS | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345986
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-05T02:15:39-07:00
- sewer_category
- Gravity
