Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 9, 2017, 11:08 AM

  • 04 0096_04 0095 _10092017_040837.mp4

Date
10/09/2017
W/O
663500
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00409
PipeID
P11833
Time
4:08 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4743
Sewer Name
04 FAIRFAX AVENUE TRUNK
City
WEST HOLLYWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
02
Purpose
Routine Assessment
Project
WO_663500_TV04004_OCT2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
04 0096
Downstream MH
04 0095
Dir. of Survey
Downstream
Length Surveyed
318.9 ft.
Total Length
318.9 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
186
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
186
Pipe schematic from manhole 04 0096 to 04 0095
MH: 04 0096MH: 04 0095downstream0 ft. AMH - Upstream Manhole, Survey Begins - 04 00960 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area5.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start39 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"41.4 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"90.4 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"110.6 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"138.9 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"169.4 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"192.6 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"243.9 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"246.1 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"287.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"313 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"317.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish318 ft. MGO - General Observation - Surface Spalling throughout the reach318.9 ft. AMH - Downstream Manhole, Survey Ends - 04 0095318.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (2)

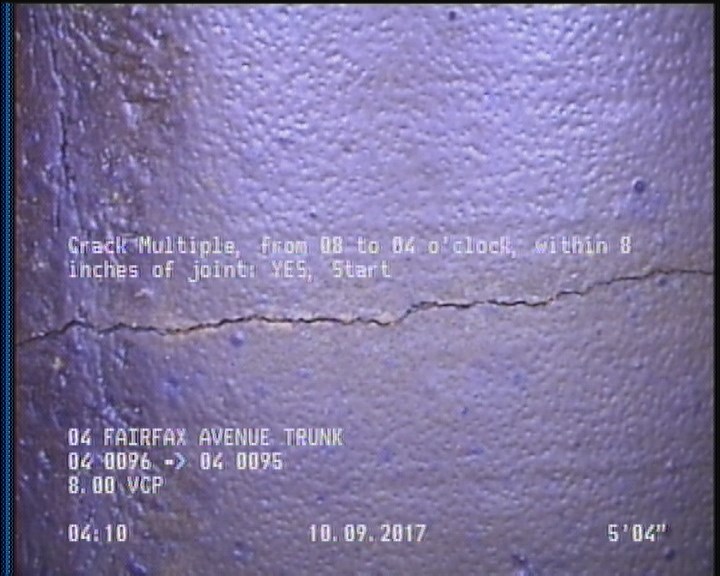

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

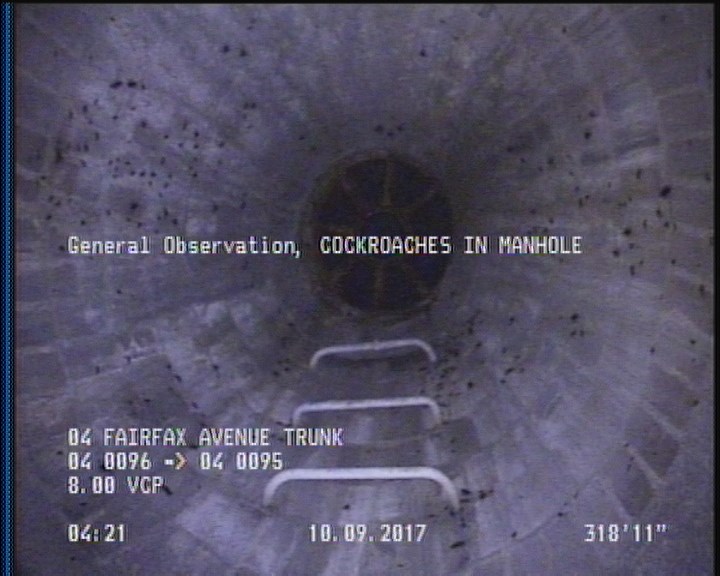

  • General Observation - COCKROACHES IN MANHOLE

    318.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P11833Work order 663500

Observations (19)

DistanceCodeObservation
318.9AMH04 0095
0AMH04 0096
138.9TFA—
246.1TFA—
287.1TFA—
243.9TFA—
5.4CM—
313TFA—
110.6TFA—
0MWM—
318.9MGOCOCKROACHES IN MANHOLE
0MWL—
318MGOSurface Spalling throughout the reach
41.4TFA—
317.2CM—
39TFA—
90.4TB—
169.4TFA—
192.6TFA—

Properties (5)

additional_info
SC346058
custom_field_two
3
customer
LACSD
datetime
2017-10-09T04:08:24-07:00
sewer_category
Gravity
