Wastewater/Activity/PacpInspection/1.0Oct 10, 2017, 07:06 AM
04 0091_04 0090 _10102017_000637.mp4
- Date
- 10/10/2017
- W/O
- 663500
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00409
- PipeID
- P11828
- Time
- 12:06 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4744
- Sewer Name
- 04 FAIRFAX AVENUE TRUNK
- City
- WEST HOLLYWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 04
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_663500_TV04004_OCT2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 04 0091
- Downstream MH
- 04 0090
- Dir. of Survey
- Downstream
- Length Surveyed
- 283.1 ft.
- Total Length
- 283.1 ft.
- Structural Index
- 3
- Structural Quick
- 3D21
- Structural Rating
- 74
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 76
Observation photos (4)

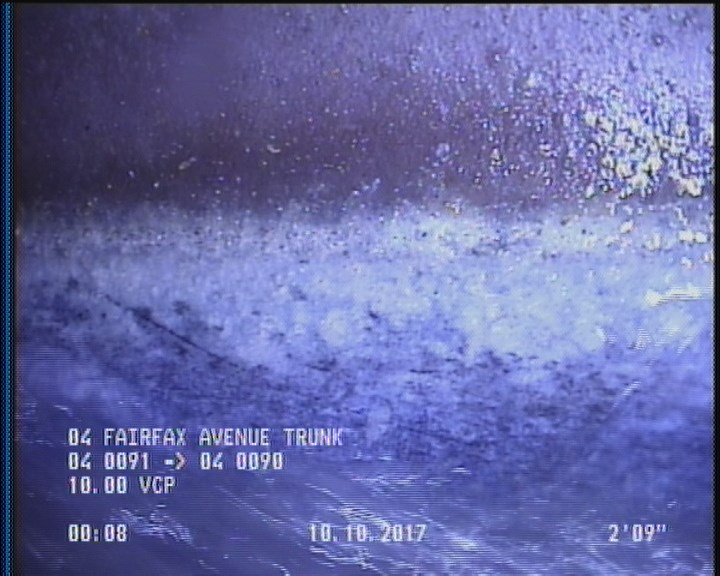

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

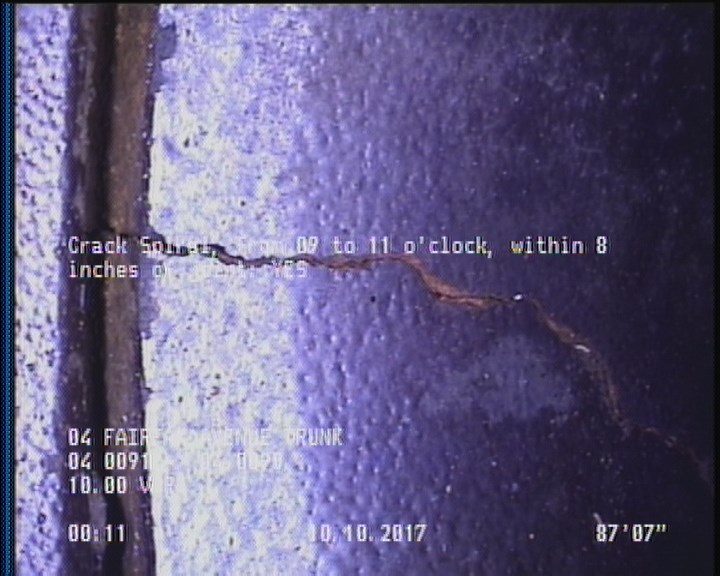

87.5 ft. - Crack Spiral, from 09 to 11 o'clock, within 8 inches of joint: YES

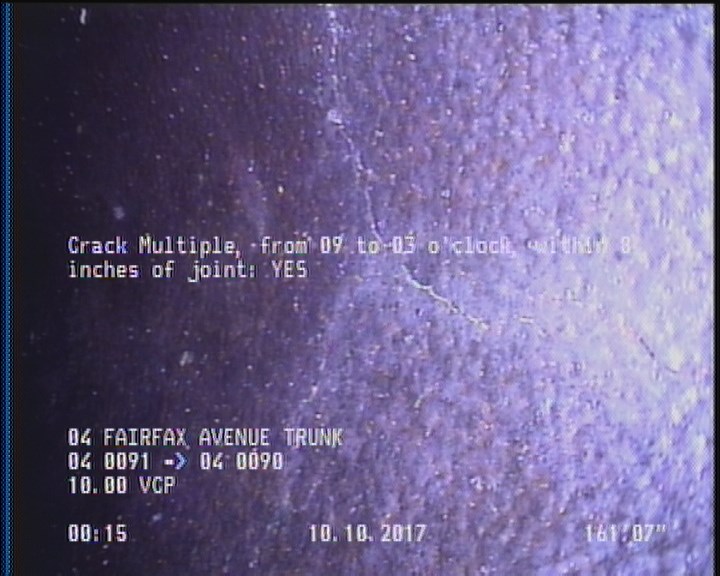

161.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

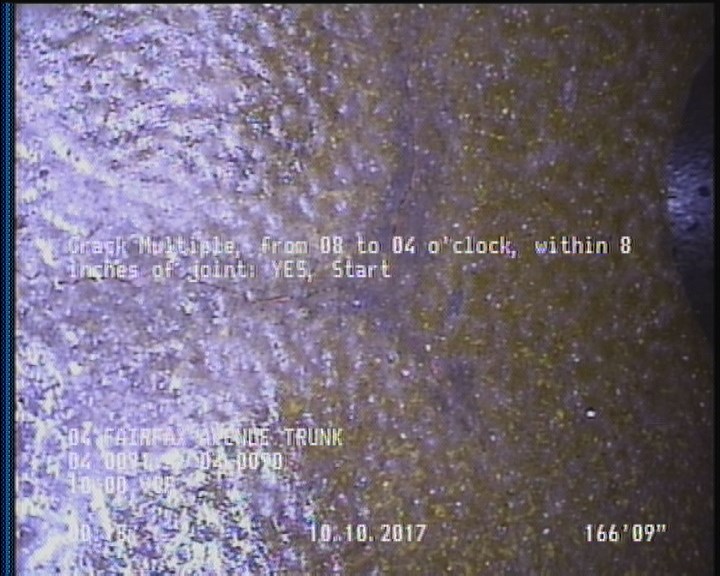

166.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (24)
| Distance | Code | Observation |
|---|---|---|
| 119.4 | TFA | — |
| 281.1 | DAGS | — |
| 166.7 | CM | — |
| 0 | MWL | — |
| 175.4 | TF | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 283 | MGO | Surface Spalling throughout the reach |
| 152.3 | TF | — |
| 99 | TFA | — |
| 183.1 | TFA | — |
| 0 | MWM | — |
| 281.1 | CM | — |
| 283.1 | MGO | COCKROACHES IN MANHOLE |
| 161.5 | CM | — |
| 271.8 | TFA | — |
| 87.5 | CS | — |
| 283.1 | AMH | 04 0090 |
| 0 | AMH | 04 0091 |
| 167.4 | TFA | — |
| 2 | DAGS | — |
| 39 | TF | — |
| 241.8 | TFA | — |
| 58.4 | TF | — |
| 269.4 | TF | — |
Properties (5)
- additional_info
- SC346059
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-10T00:06:19-07:00
- sewer_category
- Gravity
