Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 10, 2017, 07:59 AM

  • 04 0093_04 0092 _10102017_010938.mp4

Date
10/10/2017
W/O
663500
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00409
PipeID
P11830
Time
12:59 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4744
Sewer Name
04 FAIRFAX AVENUE TRUNK
City
WEST HOLLYWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
02
Purpose
Routine Assessment
Project
WO_663500_TV04004_OCT2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
04 0093
Downstream MH
04 0092
Dir. of Survey
Downstream
Length Surveyed
290.5 ft.
Total Length
290.5 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
171
O&M Index
2
O&M Quick
2J00
O&M Rating
114
Overall Index
3
Overall Quick
—
Overall Rating
285
Pipe schematic from manhole 04 0093 to 04 0092
MH: 04 0093MH: 04 0092downstream0 ft. AMH - Upstream Manhole, Survey Begins - 04 00930 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - ACTIVE CONNECTION 9 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start97.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"105.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"156.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"171.9 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"197.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"254 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"269.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"272.7 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"288.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish288.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish290 ft. MGO - General Observation - Surface Spalling throughout the reach290.5 ft. AMH - Downstream Manhole, Survey Ends - 04 0092290.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (2)

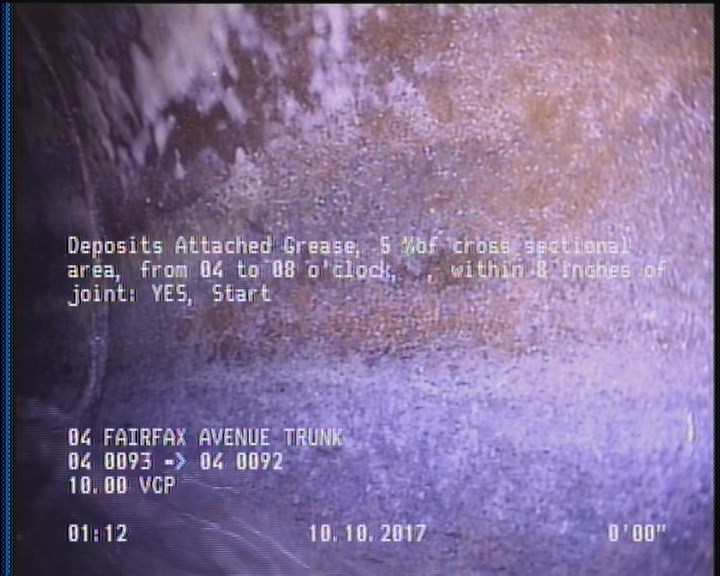

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

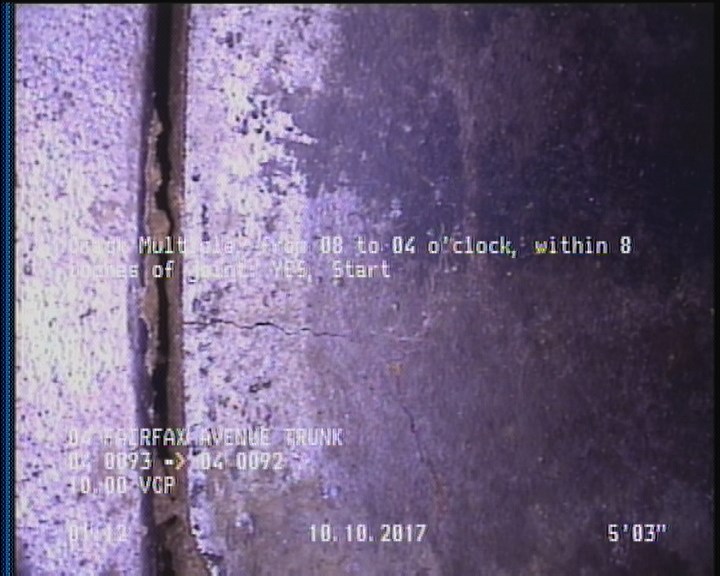

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P11830Work order 663500

Observations (20)

DistanceCodeObservation
272.7TBA—
5.3CM—
288.7CM—
0AMH04 0093
2DAGS—
197.7TF—
105.5TF—
290.5AMH04 0092
0MWL—
171.9TF—
0MWM—
290.5MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
290MGOSurface Spalling throughout the reach
269.5TF—
288.7DAGS—
254TF—
97.3TFA—
0MGOACTIVE CONNECTION 9 O'CLOCK
156.5TF—

Properties (5)

additional_info
SC346059
custom_field_two
3
customer
LACSD
datetime
2017-10-10T00:59:14-07:00
sewer_category
Gravity
