  • B 1185_B 1184 _27092017_034154.mp4

Date
09/27/2017
W/O
663486
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z01125
PipeID
P13505
Time
3:41 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4278
Sewer Name
B JOINT OUTFALL B - UNIT 6H
City
S.PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
16
Purpose
Routine Assessment
Project
WO_663486_TV16065_OCT2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
B 1185
Downstream MH
B 1184
Dir. of Survey
Downstream
Length Surveyed
216.1 ft.
Total Length
216.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
1
O&M Quick
2112
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole B 1185 to B 1184
MH: B 1185MH: B 1184downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 11850 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start144.3 ft. FC - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES212.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish214 ft. MGO - General Observation - ENCRUSTATION/GREASE THROUGHOUT THE REACH216.1 ft. VC - Vermin Cockroach216.1 ft. AMH - Downstream Manhole, Survey Ends - B 1184

Observation photos (2)

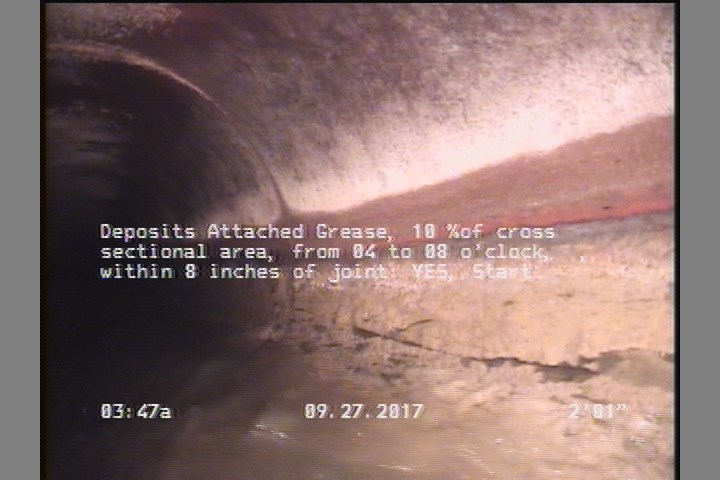

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

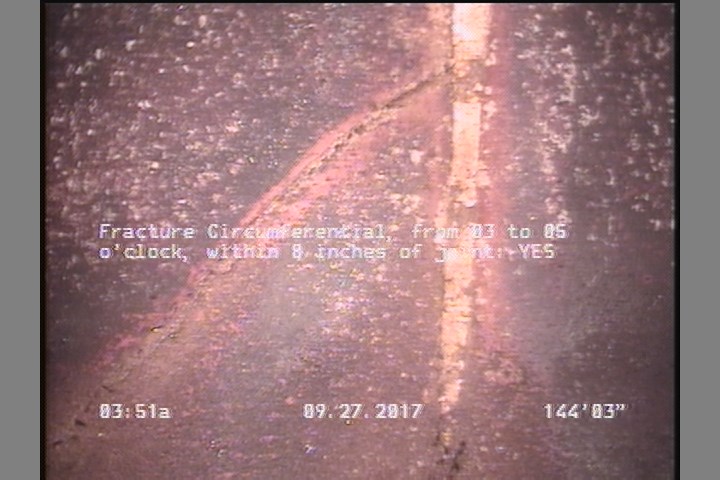

  • Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES

    144.3 ft. - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES

All inspections of P13505Work order 663486

Observations (10)

DistanceCodeObservation
144.3FC—
214MGOENCRUSTATION/GREASE THROUGHOUT THE REACH
0AMHB 1185
212.1DAGS—
0VC—
0MWM—
2.1DAGS—
216.1VC—
216.1AMHB 1184
0MWL—

Properties (5)

additional_info
SC352125
custom_field_two
3
customer
LACSD
datetime
2017-09-27T03:41:08-07:00
sewer_category
Gravity
