Wastewater/Activity/PacpInspection/1.0Sep 27, 2017, 06:42 AM
B 1196_B 1195_26092017_234234.mp4
- Date
- 09/26/2017
- W/O
- 663486
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z01125
- PipeID
- P13516
- Time
- 11:42 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4278
- Sewer Name
- B JOINT OUTFALL B - UNIT 6H
- City
- S.PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_663486_TV16065_OCT2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- B 1196
- Downstream MH
- B 1195
- Dir. of Survey
- Downstream
- Length Surveyed
- 245 ft.
- Total Length
- 245 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

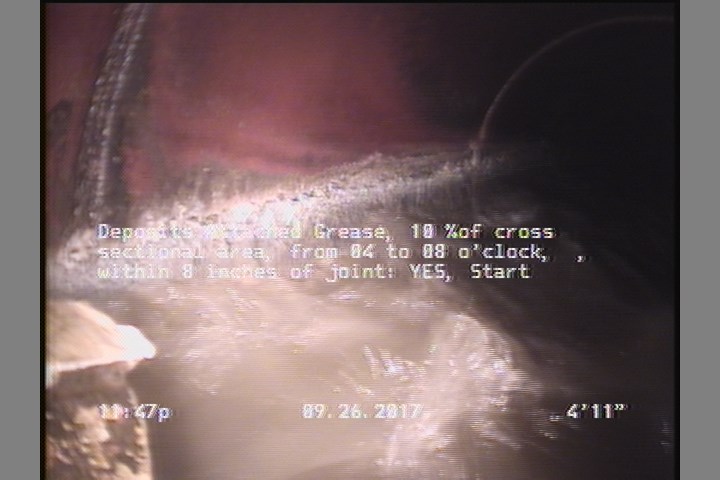

4.9 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 245 | AMH | B 1195 |
| 240 | MGO | SPALLING THROUGHOUT THE REACH |
| 0 | MWL | — |
| 0 | AMH | B 1196 |
| 239.6 | DAGS | — |
| 4.9 | DAGS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC352125
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-26T23:42:15-07:00
- sewer_category
- Gravity
