Wastewater/Activity/PacpInspection/1.0Oct 6, 2017, 08:11 AM
16 0099_16 0098 _06102017_011211.mp4
- Date
- 10/06/2017
- W/O
- 663354
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00641
- PipeID
- P13137
- Time
- 1:11 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4995
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTION 5
- City
- SAN MARINO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_663354_TV16009_OCT2017
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 16 0099
- Downstream MH
- 16 0098
- Dir. of Survey
- Downstream
- Length Surveyed
- 358.9 ft.
- Total Length
- 358.9 ft.
- Structural Index
- 3
- Structural Quick
- 3M21
- Structural Rating
- 215
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 142
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 357
Observation photos (3)

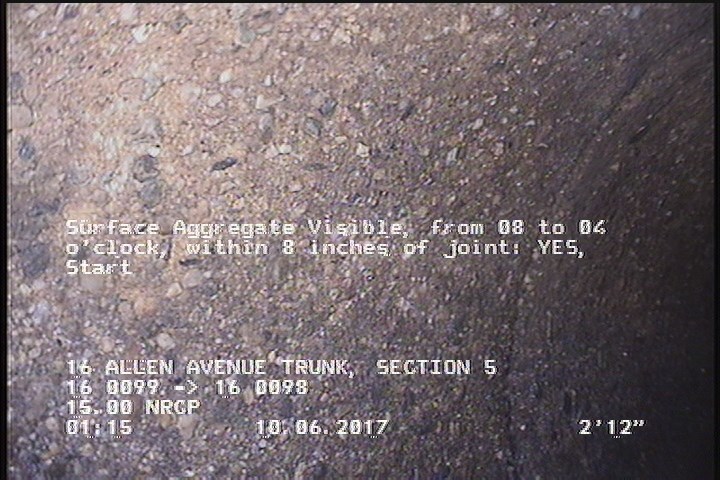

3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

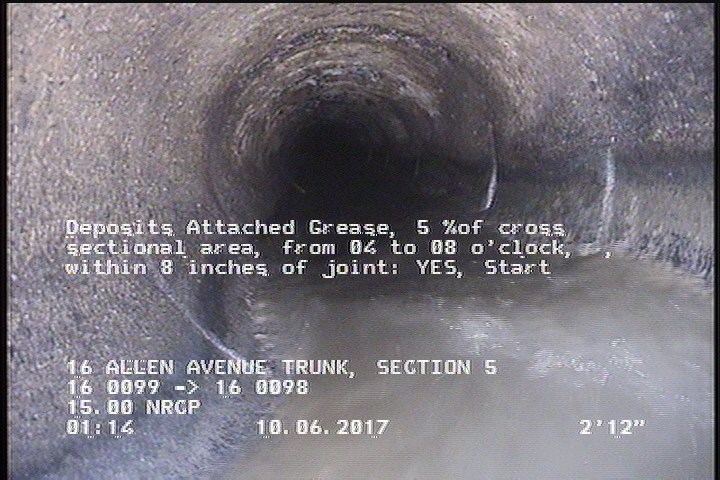

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

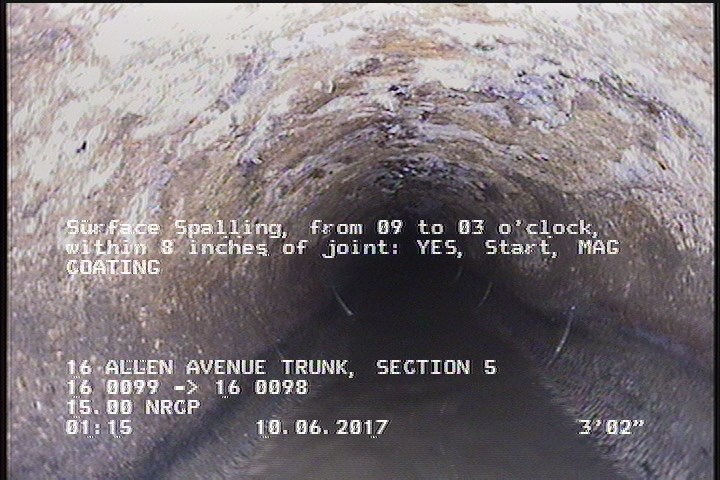

3.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - MAG COATING
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 3 | SAV | — |
| 0 | MWM | — |
| 0 | AMH | 16 0099 |
| 0 | MWL | — |
| 357 | MGO | Magnesium Hyrdroxide Coat throughout, 9 to 3 oclock, 40% |
| 3 | DAGS | — |
| 357.4 | DAGS | — |
| 357.4 | SSS | — |
| 3.2 | SSS | MAG COATING |
| 357.4 | SAV | — |
| 358.9 | AMH | 16 0098 |
Properties (5)
- additional_info
- SC345987
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-06T01:11:25-07:00
- sewer_category
- Gravity
