Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 8, 2015, 10:21 AM
Date
12/08/2015
W/O
531059
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00664
PipeID
P13673
Time
2:21 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2842
Sewer Name
16 PASADENA EAST-WEST INTERCEPTOR TRUNK
City
LA CANADA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
09
Purpose
Routine Assessment
Project
WO_531059_TV16030_OCT2015
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
16 0622
Downstream MH
16 0622A
Dir. of Survey
Upstream
Length Surveyed
417.9 ft.
Total Length
417.9 ft.
Structural Index
3
Structural Quick
3O00
Structural Rating
246
O&M Index
2
O&M Quick
2P12
O&M Rating
168
Overall Index
2
Overall Quick
—
Overall Rating
414
Pipe schematic from manhole 16 0622 to 16 0622A
MH: 16 0622MH: 16 0622Aupstream0 ft. VC - Vermin Cockroach0 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Ends - 16 0622A3.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish3.5 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH3.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish195.1 ft. TBI - Tap Break-In Intruding, at 03 o'clock, -, #v, within 8 inches of joint: YES, 6", 2", 6"394.4 ft. VC - Vermin Cockroach415.8 ft. MGO - General Observation - MAGNEZIUM H.O. START415.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start415.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start417.9 ft. MWL - Water Level, 10 %of cross sectional area417.9 ft. MWM - Water Mark, 15 %of cross sectional area417.9 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK ACTIVE417.9 ft. AMH - Downstream Manhole, Survey Begins - 16 0622A

Observation photos (2)

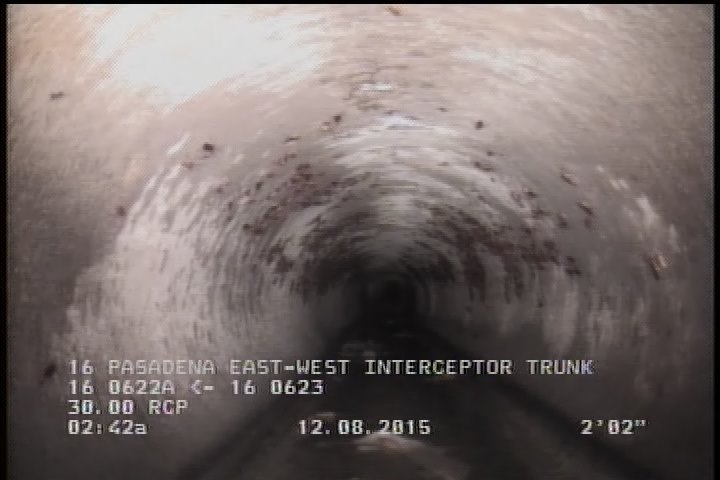

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

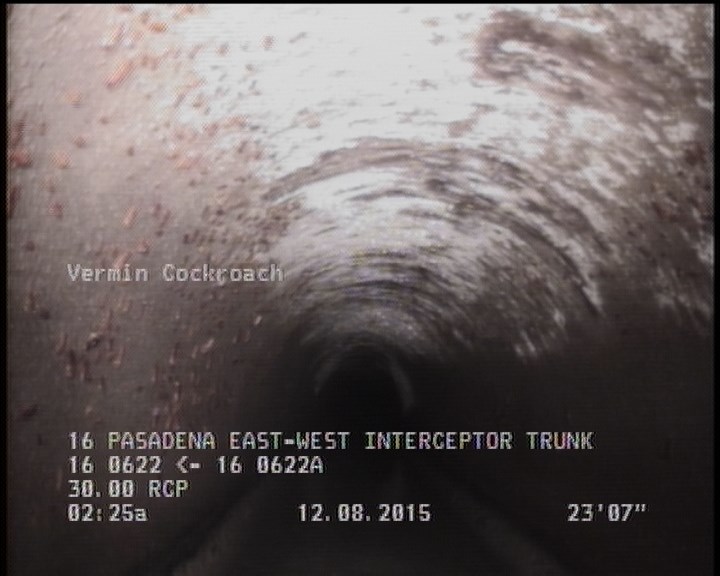

  • Vermin Cockroach

    23.5 ft. - Vermin Cockroach

All inspections of P13673Work order 531059

Observations (15)

DistanceCodeObservation
414.4SAV—
2.1MGOMAGNEZIUM H.O. START
0MWL—
2.1DAGS—
222.8TBI—
417.9VC—
0MWM—
2.1SAV—
417.9MGOLATERAL AT MH 3 OCLOCK ACTIVE
0MGOLATERAL AT MH 3 OCLOCK ACTIVE
414.4MGOMAGNEZIUM H.O. FINISH
417.9AMH16 0622A
23.5VC—
0AMH16 0622A
414.4DAGS—

Properties (5)

additional_info
SC205696
custom_field_two
3
customer
LACSD
datetime
2015-12-08T02:21:04-08:00
sewer_category
GRAVITY
