Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 21, 2017, 05:28 PM

  • 16 0572_16 0571_11212017_093825.mp4

Date
11/21/2017
W/O
PENDING
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00659
PipeID
P13623
Time
9:28 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
G7562R
Sewer Name
16 LAMANDA PARK TRUNK
City
PASADENA
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
11
Purpose
Maintenance Related
Project
20171121SHO_LAMANDA_PARK_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
22 in.
Upstream MH
16 0572
Downstream MH
16 0571
Dir. of Survey
Downstream
Length Surveyed
252 ft.
Total Length
252 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3222
O&M Rating
11
Overall Index
2
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 16 0572 to 16 0571
MH: 16 0572MH: 16 0571downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 09409.5 ft. RTB - Roots Tap Barrell, at 11 o'clock, 10 %, within 8 inches of joint: YES - BEFORE9.5 ft. MGP - General Photograph - ROOTS CUT (AFTER)85.7 ft. RTB - Roots Tap Barrell, at 11 o'clock, 5 %, within 8 inches of joint: NO - AFTER CUTTING130.5 ft. RFL - Roots Fine Lateral, at 11 o'clock160.3 ft. RFB - Roots Fine Barrell, at 11 o'clock, within 8 inches of joint: NO249.1 ft. RFB - Roots Fine Barrell, at 12 o'clock, within 8 inches of joint: NO252 ft. AMH - Downstream Manhole, Survey Ends - 1025

Observation photos (5)

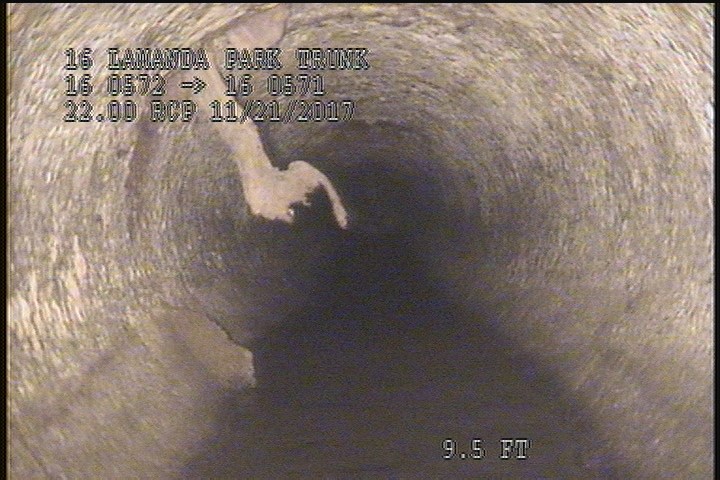

  • Roots Tap Barrell, at 11 o'clock, 10 %, within 8 inches of joint: YES - BEFORE

    9.5 ft. - Roots Tap Barrell, at 11 o'clock, 10 %, within 8 inches of joint: YES - BEFORE

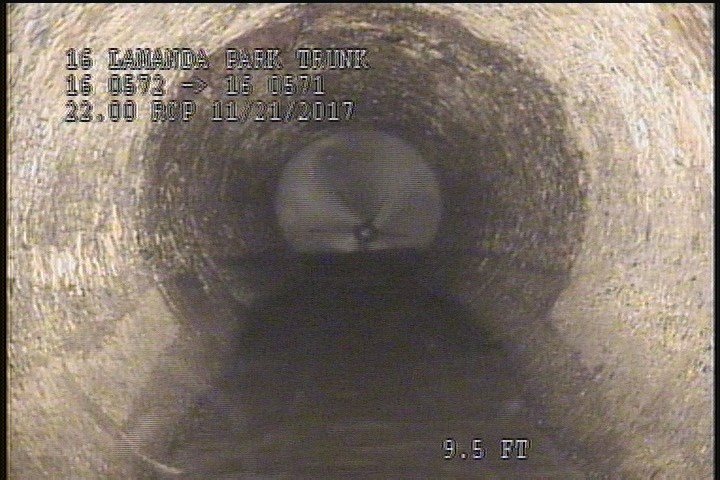

  • General Photograph - ROOTS CUT (AFTER)

    9.5 ft. - General Photograph - ROOTS CUT (AFTER)

  • Roots Tap Barrell, at 11 o'clock, 5 %, within 8 inches of joint: NO - AFTER CUTTING

    85.7 ft. - Roots Tap Barrell, at 11 o'clock, 5 %, within 8 inches of joint: NO - AFTER CUTTING

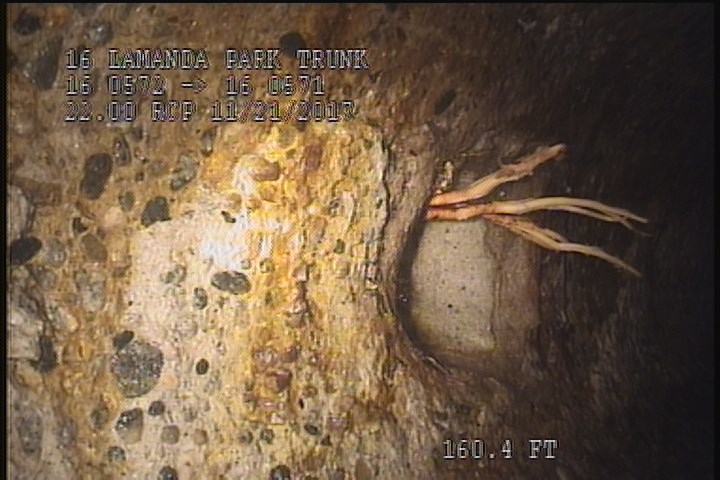

  • Roots Fine Barrell, at 11 o'clock, within 8 inches of joint: NO

    160.3 ft. - Roots Fine Barrell, at 11 o'clock, within 8 inches of joint: NO

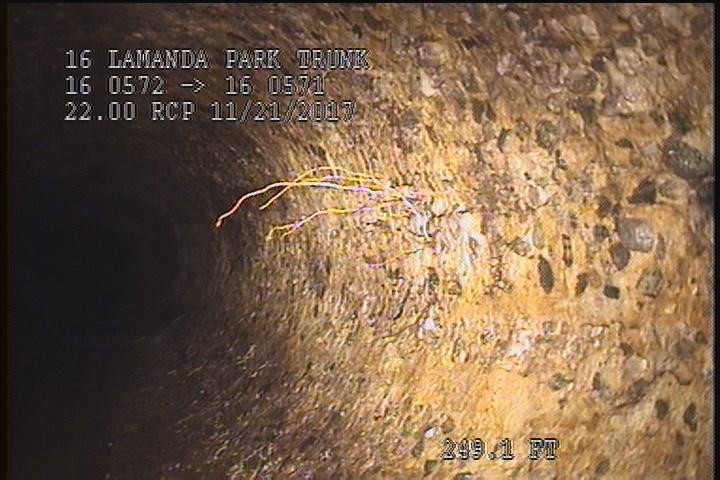

  • Roots Fine Barrell, at 12 o'clock, within 8 inches of joint: NO

    249.1 ft. - Roots Fine Barrell, at 12 o'clock, within 8 inches of joint: NO

All inspections of P13623Work order PENDING

Observations (10)

DistanceCodeObservation
130.5RFL—
9.5RTBBEFORE
85.7RTBAFTER CUTTING
9.5MGPROOTS CUT (AFTER)
160.3RFB—
249.1RFB—
0MWL—
0MWM—
0AMH0940
252AMH1025

Properties (5)

additional_info
LOOKING AT ROOTS BEING CUT
custom_field_three
ROOTS HAVE BEEN CUT
custom_field_two
5
customer
LACSD
datetime
2017-11-21T09:28:05-08:00
