Wastewater/Activity/PacpInspection/1.0Nov 17, 2017, 09:00 PM
05 1553_05 1552_11172017_131217.mp4
- Date
- 11/17/2017
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00495
- PipeID
- P06777
- Time
- 1:00 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7560
- Sewer Name
- 05 NORTH TORRANCE TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- 20171117SHO_NORTH_TORRANCE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 05 1553
- Downstream MH
- 05 1552
- Dir. of Survey
- Downstream
- Length Surveyed
- 133.7 ft.
- Total Length
- 133.7 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

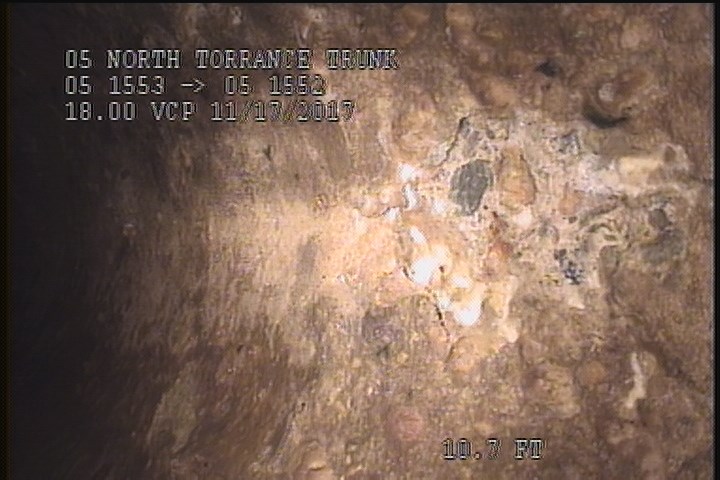

10.7 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

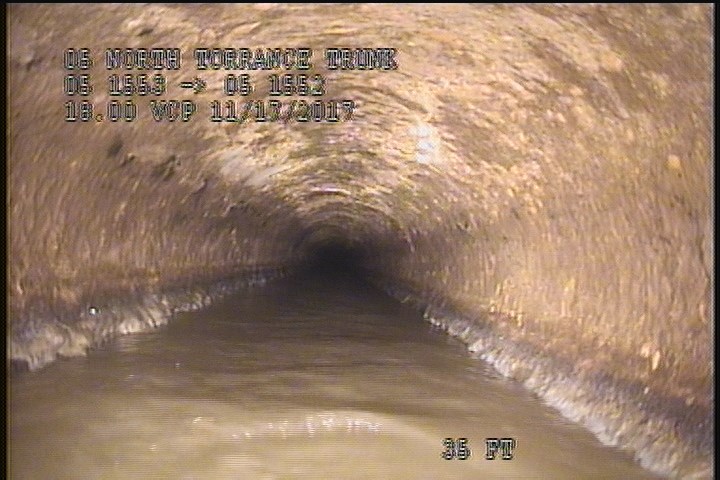

35 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 0110 |
| 35 | SSS | — |
| 130.4 | SAV | — |
| 130.4 | SSS | — |
| 133.7 | AMH | 0125 |
| 133.7 | MGO | ACTIVE DROP CONNECTIONS IN THE MH @ 3 AND 9 O CLOCK |
| 0 | MWL | — |
| 130.4 | MGO | 0120 |
| 10.7 | SAV | — |
| 0 | MWM | — |
| 0 | MGO | STUB CONNECTION IN THE MH @ 9 O CLOCK |
Properties (4)
- custom_field_three
- VISIBLE AGG. & SPALLING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-11-17T13:00:01-08:00
