Wastewater/Activity/PacpInspection/1.0Oct 3, 2017, 07:50 AM
B 1138_B 1255 _03102017_005305.mpg
- Date
- 10/03/2017
- W/O
- 657828
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z01133
- PipeID
- P13226
- Time
- 12:50 AM
- Certificate
- U-209-8148
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4952
- Sewer Name
- B JOINT OUTFALL B - UNIT 6L
- City
- ALHAMBRA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_657828_TV16108_SEP2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- B 1138
- Downstream MH
- B 1255
- Dir. of Survey
- Downstream
- Length Surveyed
- 515 ft.
- Total Length
- 515 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

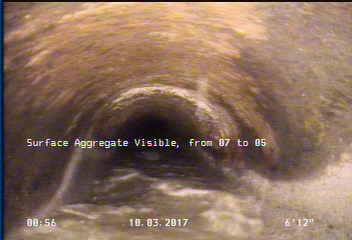

7 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

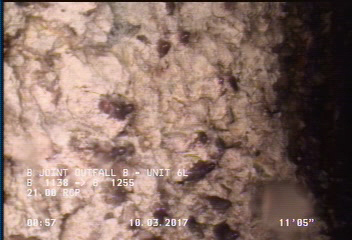

11.4 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 512.2 | SAV | — |
| 11.4 | SAP | — |
| 0 | MWL | — |
| 512.2 | SAP | — |
| 0 | AMH | B 1138 |
| 7 | SAV | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 515 | AMH | B 1255 |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC345860
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-03T00:50:53-07:00
