Wastewater/Activity/PacpInspection/1.0Sep 20, 2017, 06:19 AM
32 1166_32 1165_19092017_232507.mp4
- Date
- 09/19/2017
- W/O
- 654216
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00839
- PipeID
- P19620
- Time
- 11:19 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4881
- Sewer Name
- 32 SAN FERNANDO ROAD TRUNK
- City
- SANTA CLARITA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_654216_TV32021_AUG2017
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1165
- Downstream MH
- 32 1166
- Dir. of Survey
- Upstream
- Length Surveyed
- 171.1 ft.
- Total Length
- 171.1 ft.
- Structural Index
- 2
- Structural Quick
- 3B2F
- Structural Rating
- 107
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 36
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 143
Observation photos (3)

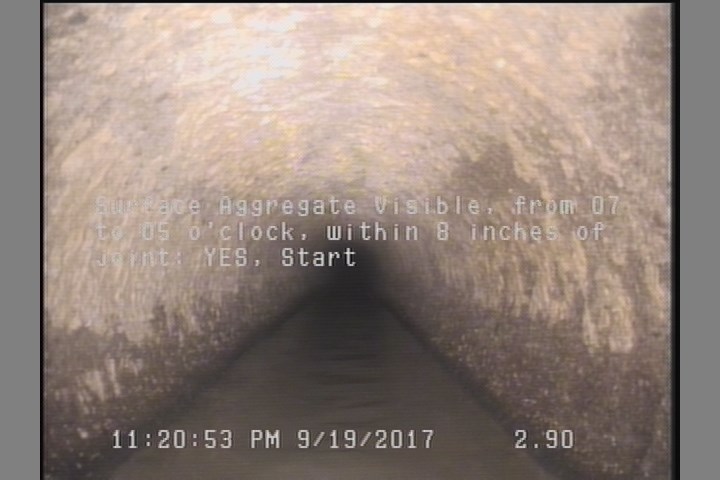

2.9 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

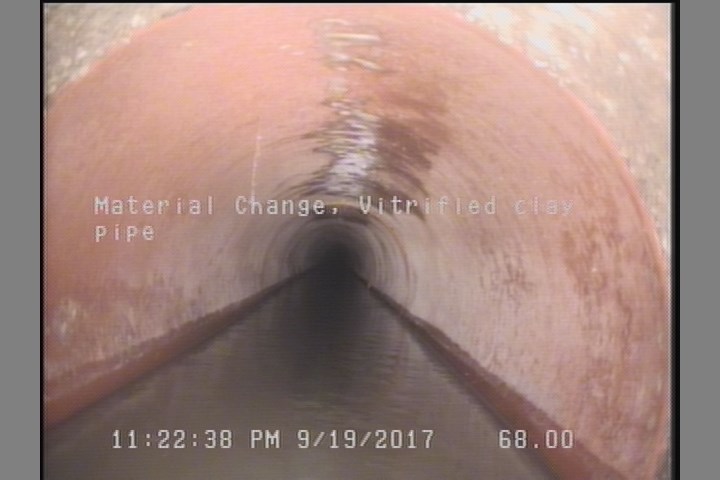

68 ft. - Material Change, Vitrified clay pipe

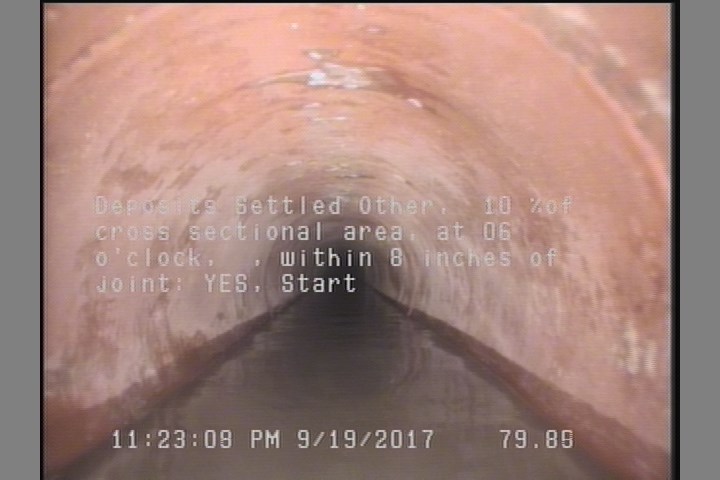

79.7 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 79.7 | DSZ | — |
| 2.9 | SAV | — |
| 68 | MMC | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 2 | SSS | — |
| 170 | SSS | — |
| 68 | SAV | — |
| 0 | MWM | — |
| 171.1 | AMH | 32 1166 |
| 35.2 | TFC | — |
| 0 | AMH | 32 1165 |
| 167.6 | DSZ | — |
Properties (5)
- additional_info
- SC345941
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-19T23:19:20-07:00
- sewer_category
- Gravity
