Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 13, 2016, 07:06 AM

  • D 0217_D 0216 _12132016_001426.mp4

Date
12/12/2016
W/O
607758
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01112
PipeID
P22742
Time
11:06 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3849
Sewer Name
D JOINT OUTFALL D - UNIT 9 REPLACEMENT
City
MANHATTAN BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
03
Purpose
Routine Assessment
Project
WO_607758_TV30040_DEC2016
Material
FRPP
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
D 0217
Downstream MH
D 0216
Dir. of Survey
Downstream
Length Surveyed
1739.4 ft.
Total Length
1739.5 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole D 0217 to D 0216
MH: D 0217MH: D 0216downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - D 02170 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK1198.9 ft. RPPD - Repair Patch Defective, at 10 o'clock, within 8 inches of joint: YES1739.5 ft. MSA - Survey Abandoned - OUT OF CABLE

Observation photos (2)

  • Repair Patch Defective, at 10 o'clock, within 8 inches of joint: YES

    1198.9 ft. - Repair Patch Defective, at 10 o'clock, within 8 inches of joint: YES

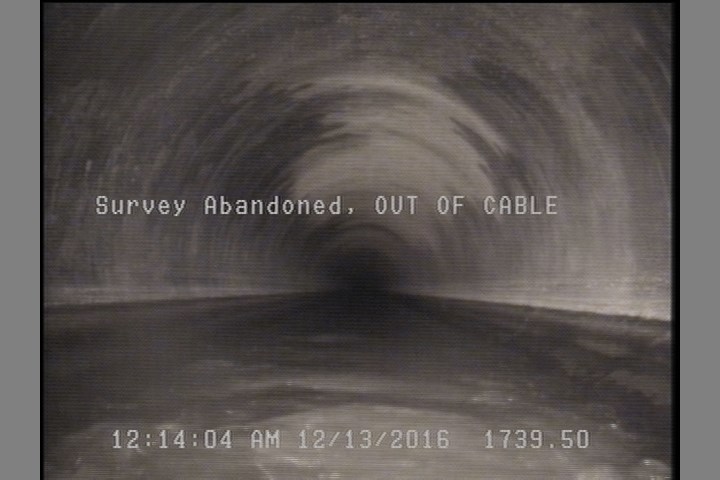

  • Survey Abandoned - OUT OF CABLE

    1739.5 ft. - Survey Abandoned - OUT OF CABLE

All inspections of P22742Work order 607758

Observations (6)

DistanceCodeObservation
1198.9RPPD—
0MWL—
1739.5MSAOUT OF CABLE
0MWM—
0AMHD 0217
0MGOCONNECTION AT MH 3 O'CLOCK

Properties (6)

additional_info
SC304600
custom_field_two
4
customer
LACSD
datetime
2016-12-12T23:06:40-08:00
sewer_category
Gravity
year_laid
36766
