Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 15, 2017, 07:59 PM

  • 02 1881_02 1880_9152017_130321.mp4

Date
09/15/2017
W/O
PENDING
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00246
PipeID
P04239
Time
12:59 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7516
Sewer Name
02 DOUGLAS AVENUE TRUNK
City
EAST LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Routine Assessment
Project
20170915SHO_DOUGLAAS_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
02 1881
Downstream MH
02 1880
Dir. of Survey
Downstream
Length Surveyed
243.3 ft.
Total Length
243.3 ft.
Structural Index
3
Structural Quick
5134
Structural Rating
17
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 02 1881 to 02 1880
MH: 02 1881MH: 02 1880downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01050 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area3.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES6.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 6" - OPEN9.2 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - DEBRIS16.1 ft. CM - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: NO21.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start21.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES25.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - OPEN47.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"62.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN103.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN132 ft. TBD - Tap Break-In Defective, at 02 o'clock, -, , within 8 inches of joint: YES, 6" - DEBRIS175.3 ft. BVV - Broken Void Visible, from 09 to 12 o'clock, within 8 inches of joint: YES175.8 ft. MGP - General Photograph - VOID BEHIND BROKEN PIPE177.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN187.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"187.7 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 6"239.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish243.3 ft. AMH - Downstream Manhole, Survey Ends - 0130

Observation photos (5)

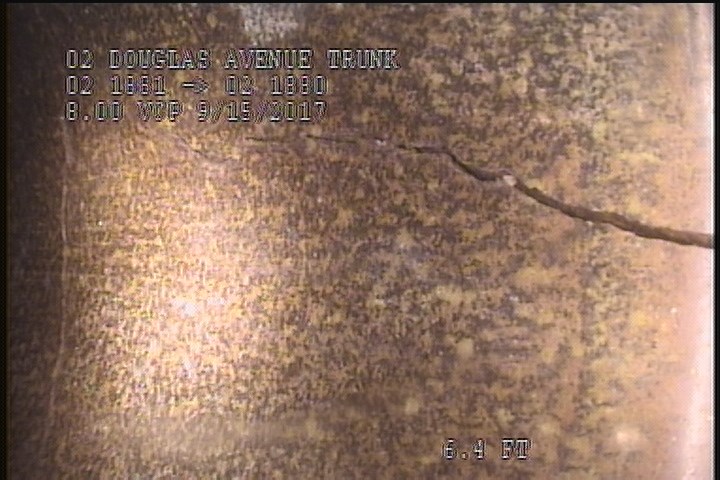

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    3.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

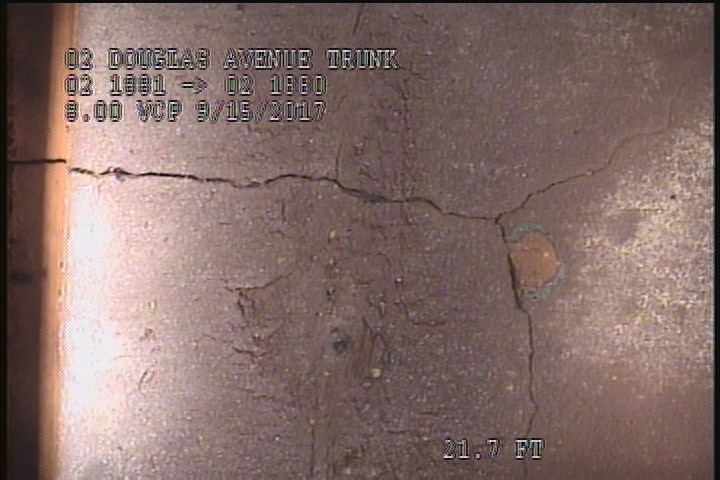

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    21.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

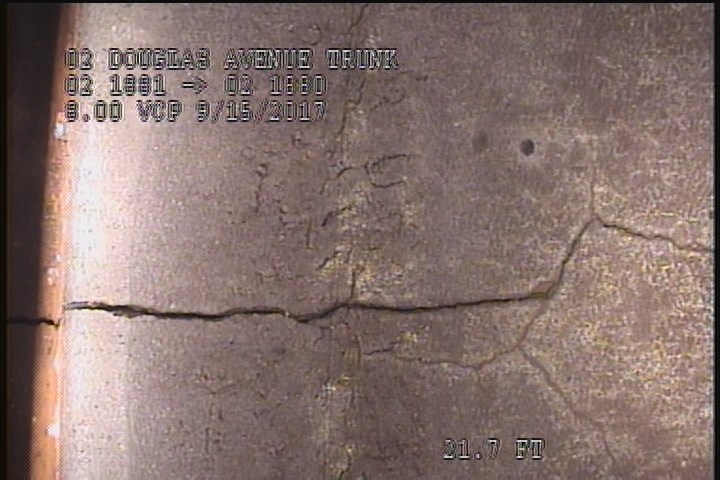

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    21.7 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

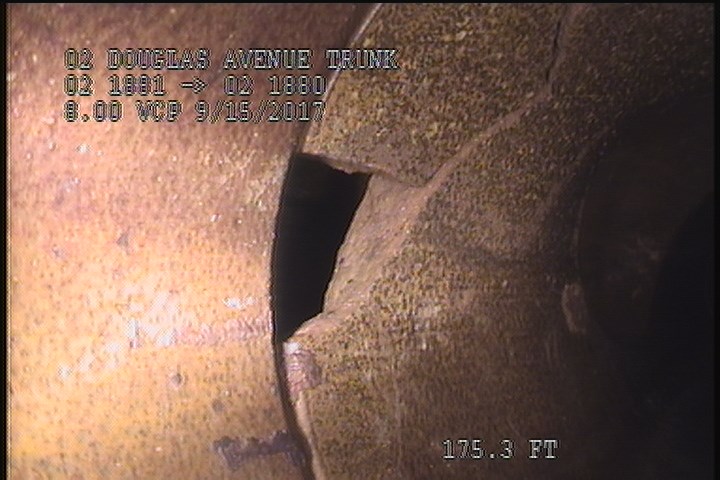

  • Broken Void Visible, from 09 to 12 o'clock, within 8 inches of joint: YES

    175.3 ft. - Broken Void Visible, from 09 to 12 o'clock, within 8 inches of joint: YES

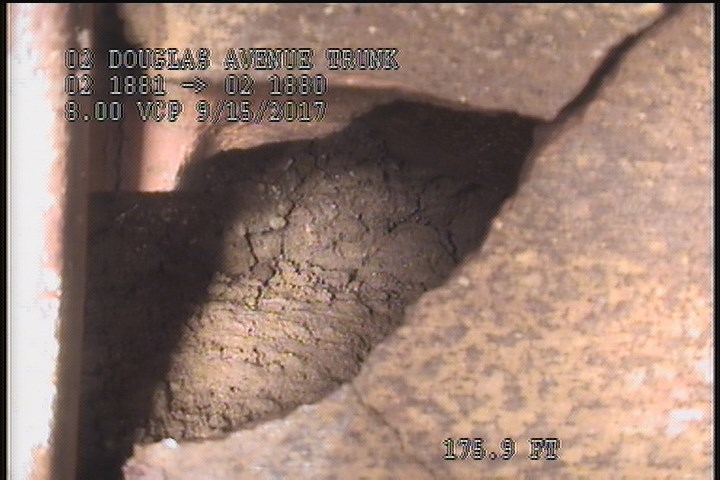

  • General Photograph - VOID BEHIND BROKEN PIPE

    175.8 ft. - General Photograph - VOID BEHIND BROKEN PIPE

All inspections of P04239Work order PENDING

Observations (21)

DistanceCodeObservation
6.5TFOPEN
16.1CM—
21.7CM—
187.7TB—
132TBDDEBRIS
62.9TFOPEN
0AMH0105
9.2TFDDEBRIS
25.1TFOPEN
0MWM—
175.3BVV—
239.9CM—
3.5CM—
177.1TFOPEN
47.6TFA—
21.7FL—
0MWL—
103.2TFOPEN
243.3AMH0130
175.8MGPVOID BEHIND BROKEN PIPE
187.1TFC—

Properties (4)

custom_field_three
BROKEN PIPE W/ VOID VISIBLE
custom_field_two
1
customer
LACSD
datetime
2017-09-15T12:59:05-07:00
