Wastewater/Activity/PacpInspection/1.0Jun 20, 2017, 06:20 AM
20 0429_20 0428 _19062017_232046.mp4
- Date
- 06/19/2017
- W/O
- 640624
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00749
- PipeID
- P19377
- Time
- 11:20 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4585
- Sewer Name
- 20 10TH STREET EAST CONNECTION TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_640624_TV20001_JUN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 20 0429
- Downstream MH
- 20 0428
- Dir. of Survey
- Downstream
- Length Surveyed
- 192.3 ft.
- Total Length
- 192.3 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2G00
- O&M Rating
- 76
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 81
Observation photos (3)

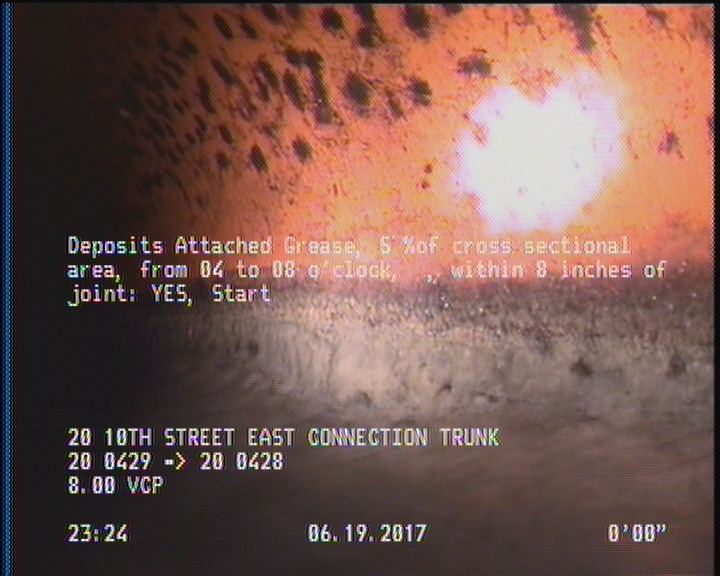

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

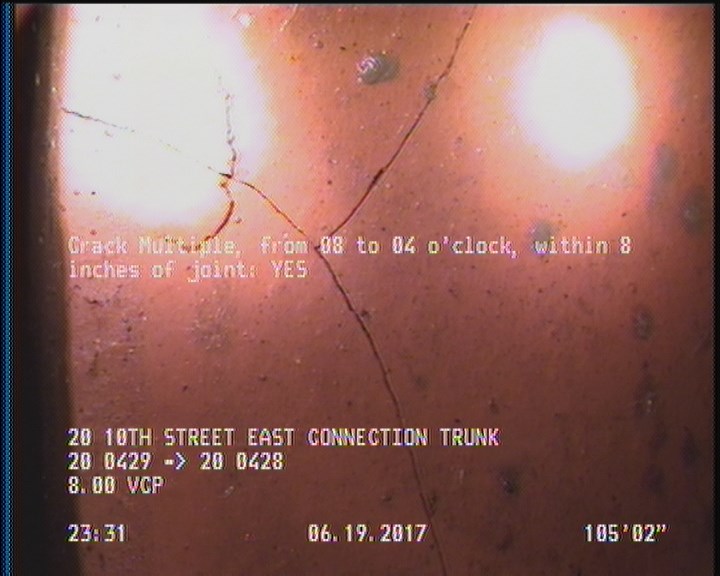

105.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

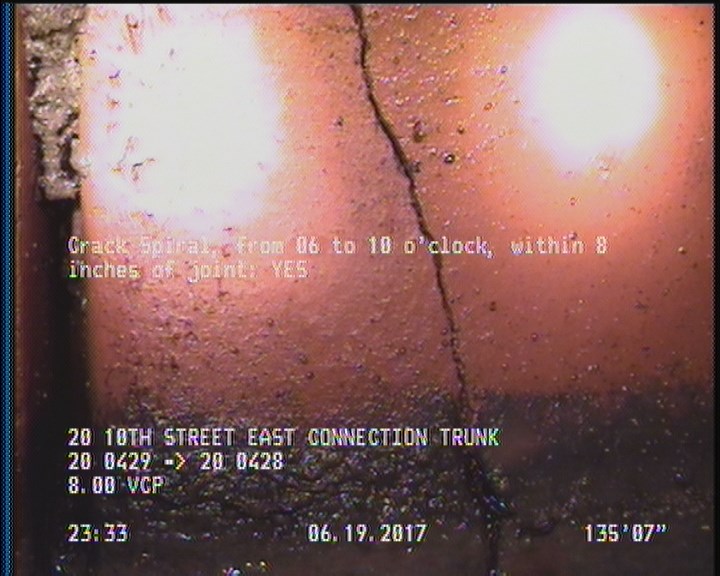

135.6 ft. - Crack Spiral, from 06 to 10 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 106.3 | TF | — |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 190.7 | DAGS | — |
| 151.7 | TFC | — |
| 0 | MWL | — |
| 0 | AMH | 20 0429 |
| 94.5 | TF | — |
| 190.7 | MGO | COCKROACHES IN MANHOLE |
| 192.3 | AMH | 20 0428 |
| 112 | TFC | — |
| 9.2 | TFA | — |
| 191 | MGO | SPALLING THROUGHOUT THE REACH |
| 105.2 | CM | — |
| 135.6 | CS | — |
Properties (5)
- additional_info
- SC345411
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-19T23:20:23-07:00
- sewer_category
- Gravity
