Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 16, 2017, 08:25 AM
Date
06/16/2017
W/O
640624
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00749
PipeID
P19387
Time
1:25 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4583
Sewer Name
20 10TH STREET EAST CONNECTION TRUNK
City
PALMDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 20
Page No.
12
Purpose
Routine Assessment
Project
WO_640624_TV20001_JUN2017
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
20 0438
Downstream MH
20 0439
Dir. of Survey
Upstream
Length Surveyed
249.3 ft.
Total Length
249.3 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2I00
O&M Rating
98
Overall Index
2
Overall Quick
—
Overall Rating
100
Pipe schematic from manhole 20 0438 to 20 0439
MH: 20 0438MH: 20 0439upstream0 ft. AMH - Upstream Manhole, Survey Ends - 20 04390 ft. MGO - General Observation - CAPPED CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - COCKROACHES IN MANHOLE1.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish23.3 ft. CS - Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES24.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"26.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"86.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"137.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"140.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"200.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"203 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"247.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start249.3 ft. AMH - Downstream Manhole, Survey Begins - 20 0438249.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE249.3 ft. MWL - Water Level, 10 %of cross sectional area249.3 ft. MWM - Water Mark, 40 %of cross sectional area

Observation photos (2)

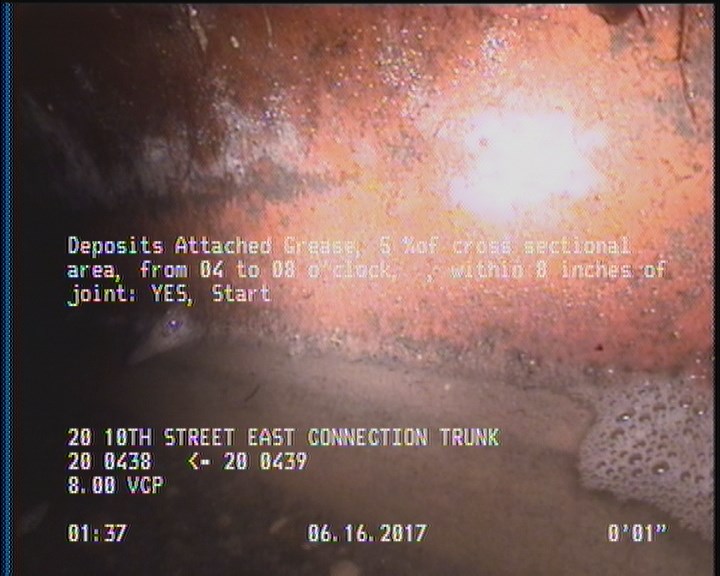

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

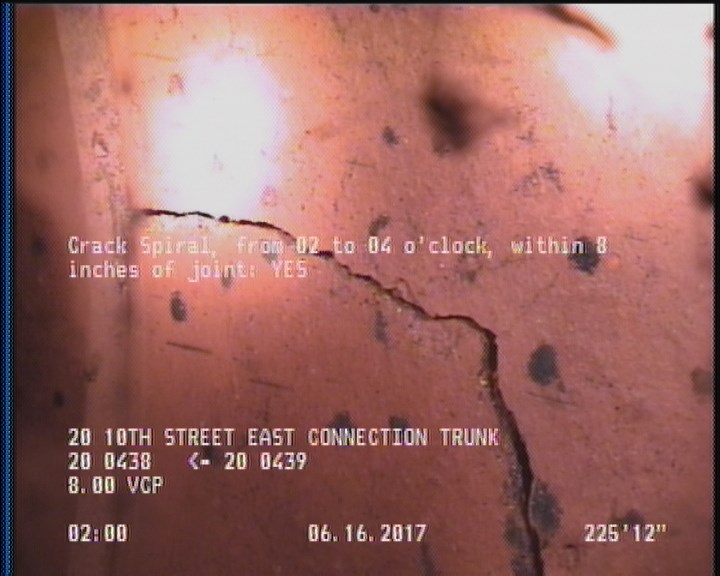

  • Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

    226 ft. - Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

All inspections of P19387Work order 640624

Observations (17)

DistanceCodeObservation
0AMH20 0438
111.8TFC—
46.3TFA—
0MGOCOCKROACHES IN MANHOLE
247.5DAGS—
109TFA—
2DAGS—
162.7TFA—
222.6TFA—
0MWL—
249.3AMH20 0439
48.8TFC—
226CS—
225.2TFC—
249.3MGOCAPPED CONNECTION AT MH 3 O'CLOCK
0MWM—
249.3MGOCOCKROACHES IN MANHOLE

Properties (5)

additional_info
SC345409
custom_field_two
4
customer
LACSD
datetime
2017-06-16T01:25:59-07:00
sewer_category
Gravity
