Wastewater/Activity/PacpInspection/1.0Jun 15, 2017, 08:55 AM
20 0426_20 0425 _15062017_015553.mp4
- Date
- 06/15/2017
- W/O
- 640624
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00749
- PipeID
- P19374
- Time
- 1:55 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4582
- Sewer Name
- 20 10TH STREET EAST CONNECTION TRUNK
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_640624_TV20001_JUN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 20 0425
- Downstream MH
- 20 0426
- Dir. of Survey
- Upstream
- Length Surveyed
- 38.6 ft.
- Total Length
- 38.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2800
- O&M Rating
- 16
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (1)

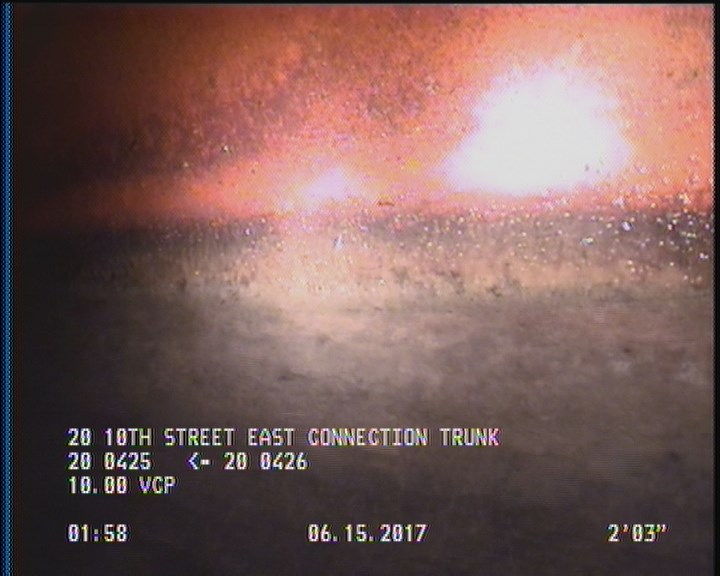

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 37.8 | DSZ | DEBRIS |
| 0 | MWL | — |
| 2 | DAGS | — |
| 38.6 | AMH | 20 0426 |
| 0 | AMH | 20 0425 |
| 37.8 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (5)
- additional_info
- SC345408
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-06-15T01:55:32-07:00
- sewer_category
- Gravity
