Wastewater/Activity/PacpInspection/1.0Sep 15, 2017, 08:01 AM
22 0916_22 0915 _09152017_010234.mp4
- Date
- 09/15/2017
- W/O
- 657826
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00799
- PipeID
- P17287
- Time
- 1:01 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4973
- Sewer Name
- 22 CONEY TRUNK, SECTS 2&3
- City
- AZUSA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 11
- Purpose
- Routine assessment
- Project
- 657826
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0916
- Downstream MH
- 22 0915
- Dir. of Survey
- Downstream
- Length Surveyed
- 304.3 ft.
- Total Length
- 304.3 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

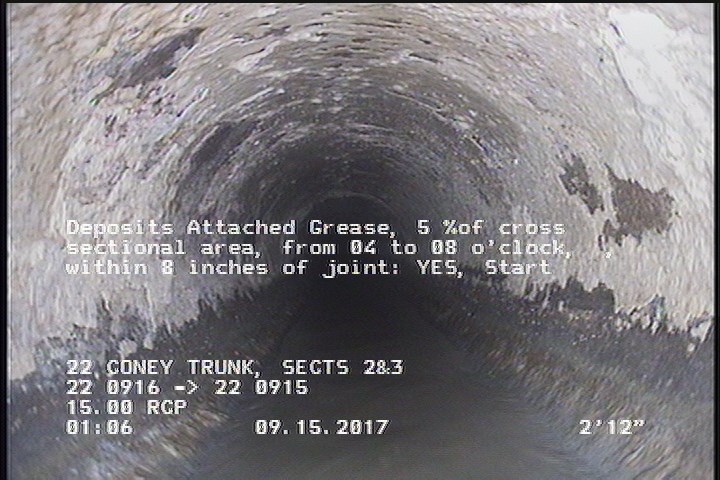

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

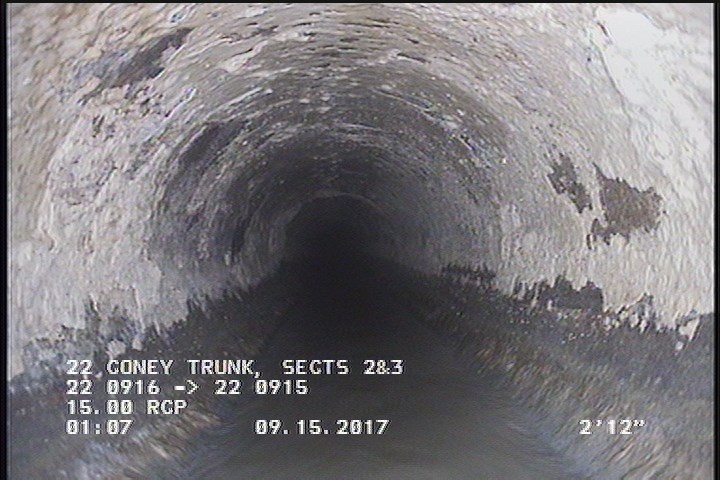

3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MAG COATING
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 304.3 | DAGS | — |
| 50.2 | TF | — |
| 90.3 | TFC | — |
| 304.3 | SSS | — |
| 0 | AMH | 22 0916 |
| 121.6 | TFC | — |
| 0 | MWL | — |
| 304.3 | AMH | 22 0915 |
| 0 | MGO | CONNECTION AT 9 OC |
| 0 | MWM | — |
| 3 | DAGS | — |
| 3 | SSS | MAG COATING |
| 65.9 | TFC | — |
Properties (5)
- additional_info
- SC345965
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-15T01:01:12-07:00
- sewer_category
- Gravity
