Wastewater/Activity/PacpInspection/1.0Oct 3, 2017, 05:01 AM
05 2626_05 2625 _02102017_220139.mp4
- Date
- 10/02/2017
- W/O
- 663052
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z01145
- PipeID
- P25717
- Time
- 10:01 PM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4283
- Sewer Name
- 05 MANCHESTER AVENUE PUMP RELIEF TRUNK
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_663052_TV05191_OCT2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 2625
- Downstream MH
- 05 2626
- Dir. of Survey
- Upstream
- Length Surveyed
- 398.4 ft.
- Total Length
- 398.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2400
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

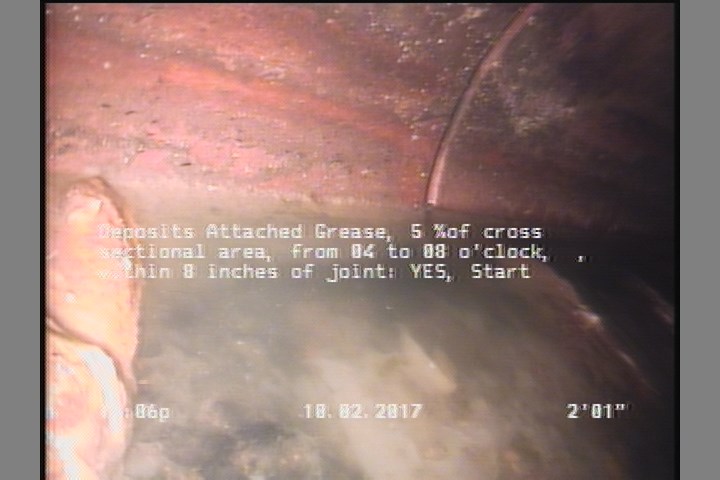

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
2.1 ft. - Deposits Attached Ragging, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

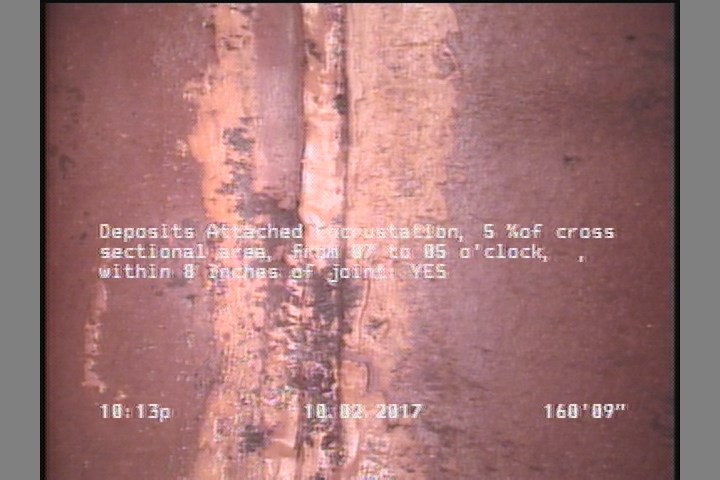

160.8 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

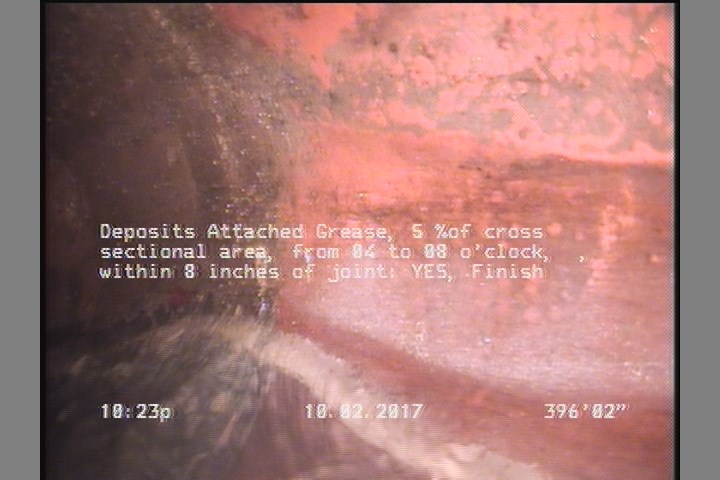

396.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 396.1 | DAGS | — |
| 2.1 | DAGS | — |
| 398.4 | AMH | 05 2626 |
| 160.8 | DAE | — |
| 0 | MWL | — |
| 2.1 | DAR | — |
| 0 | AMH | 05 2625 |
| 0 | MWM | — |
| 397 | MGO | SPALLING THROUGHOUT THE REACH |
Properties (4)
- additional_info
- SC352129
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-10-02T22:01:20-07:00
