Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 21, 2017, 09:34 AM

  • 29 0283_29 0276 _21092017_025307.mp4

Date
09/21/2017
W/O
658119
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00375
PipeID
P24192
Time
2:34 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4886
Sewer Name
29 ORANGE AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
WO_658119_TV29040_SEP2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0283
Downstream MH
29 0276
Dir. of Survey
Downstream
Length Surveyed
325.1 ft.
Total Length
325.2 ft.
Structural Index
3
Structural Quick
3L21
Structural Rating
191
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
191
Pipe schematic from manhole 29 0283 to 29 0276
MH: 29 0283MH: 29 0276downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 02835 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES10.9 ft. CM - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES13.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start36.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"39.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"105.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"107.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"171 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"175.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"221.6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"227 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"274.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"277.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"325.2 ft. AMH - Downstream Manhole, Survey Ends - 29 0276325.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK325.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

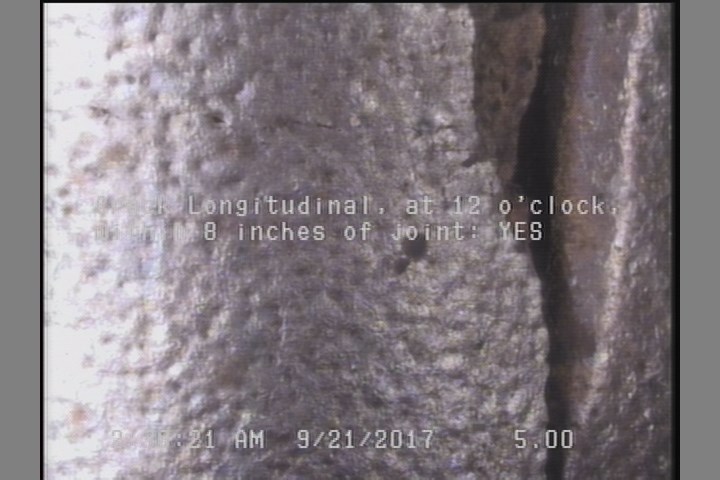

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    5 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

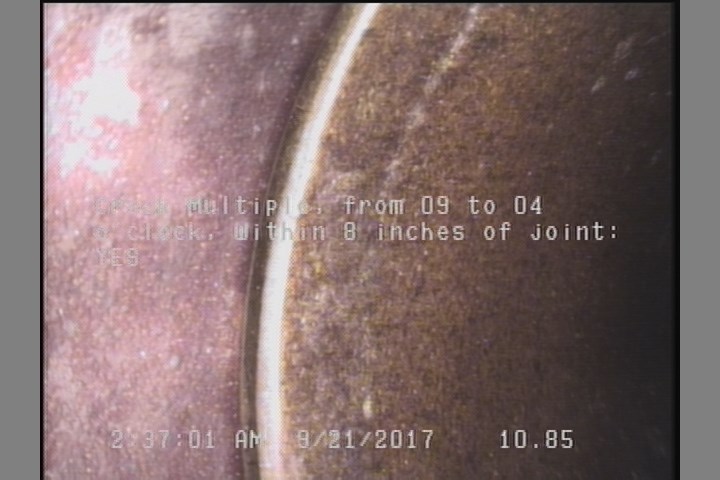

  • Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

    10.9 ft. - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

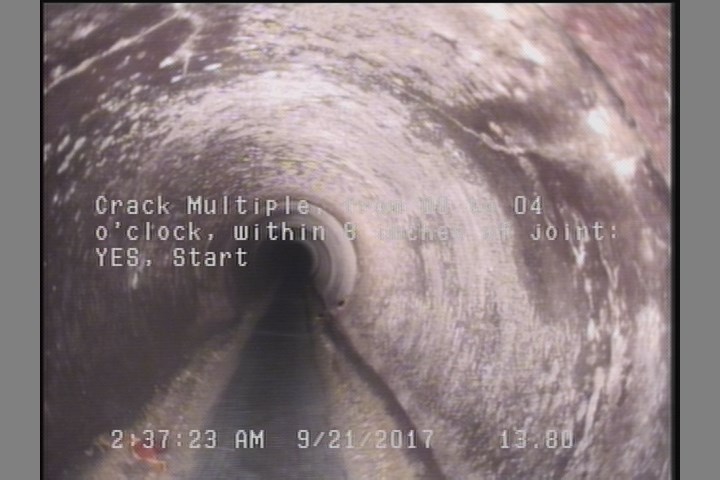

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    13.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P24192Work order 658119

Observations (19)

DistanceCodeObservation
10.9CM—
325.2AMH29 0276
0MWL—
5CL—
36.4TF—
107.9TFC—
171TFC—
274.9TF—
175.7TF—
105.2TFC—
0MWM—
221.6TFC—
0AMH29 0283
325.2MGOCONNECTION AT MH 3 O'CLOCK
13.8CM—
227TFC—
277.8TF—
325.2CM—
39.4TF—

Properties (5)

additional_info
SC345946
custom_field_two
3
customer
LACSD
datetime
2017-09-21T02:34:26-07:00
year_laid
39295
